AIR CLEANER

GT550 1972 (J) USA (E03)

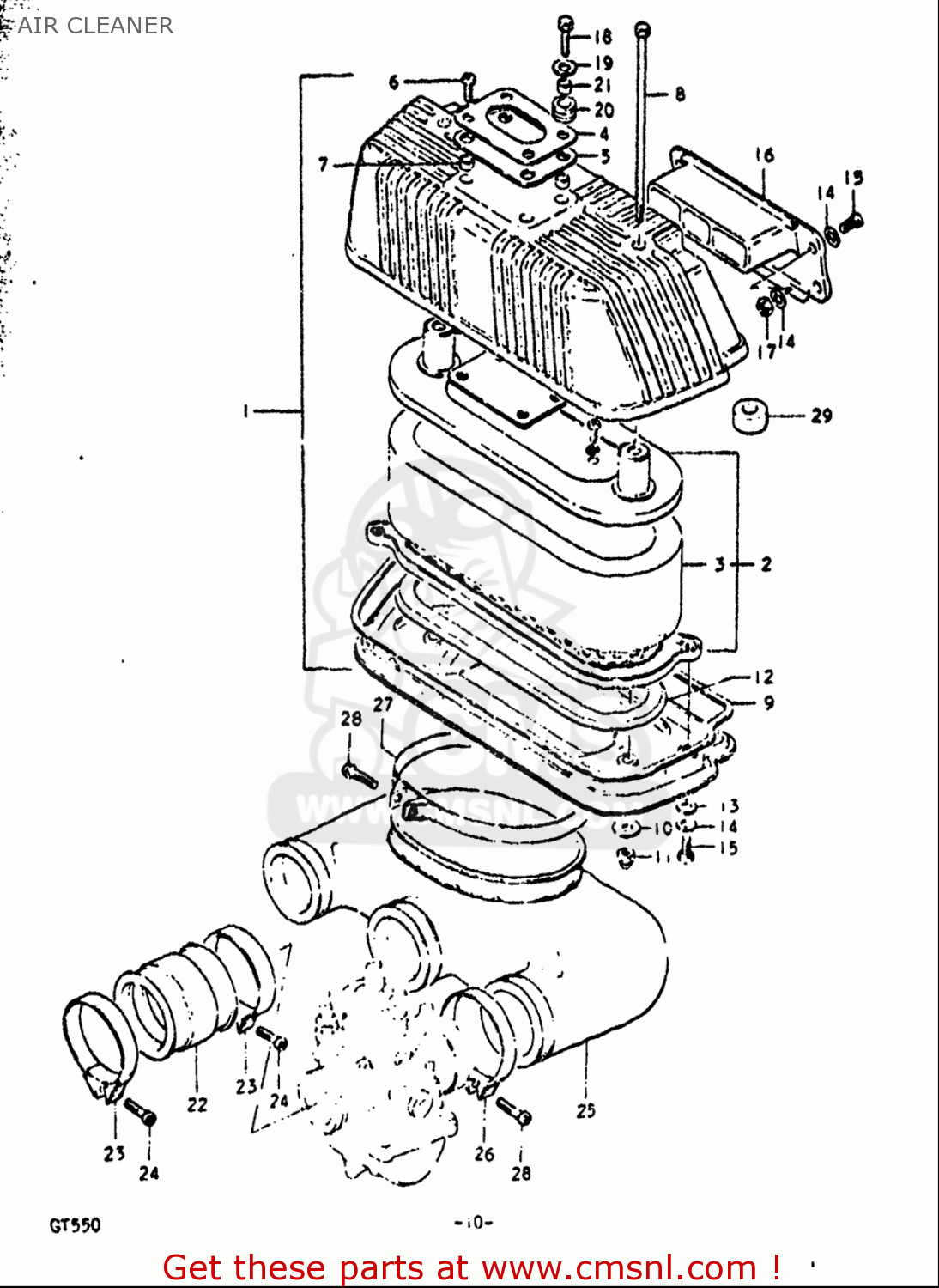

Air cleaner diagram GT550 1972 (J) USA (E03)

AIR CLEANER GT550 1972 (J) USA (E03)

AIR CLEANER GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

1378134010
ref: 3

FILTER

€ 29.00

6

0211206167
ref: 6

SCREW

€ 2.50

11

0831000057
ref: 11

NUT

€ 2.50

14

0832201047
ref: 14

WASHER

€ 2.00

15

0211204123
ref: 15

SCREW

€ 1.50

17

0831000047
ref: 17

NUT

€ 2.00

18

0150006307
ref: 18

BOLT

€ 2.50

19

0916006077
ref: 19

WASHER(6.5X20X1.2)

€ 2.00

20

0932008021
ref: 20

CUSHION

€ 4.00

21

09180C06259J000
ref: 21

SPACER,6.5X9X7

€ 0.00

22

1311133100
ref: 22

PIPE,INTAKE

€ 19.00

23

0940248208
ref: 23

CLAMP

€ 4.50

24

0211204203
ref: 24

SCREW

€ 1.00

26

0940252306
ref: 26

CLAMP

€ 6.00

27

0940200242
ref: 27

CLAMP

€ 0.00

28

0211204203
ref: 28

SCREW

€ 1.00
