FRAME

GT550 1972 (J) USA (E03)

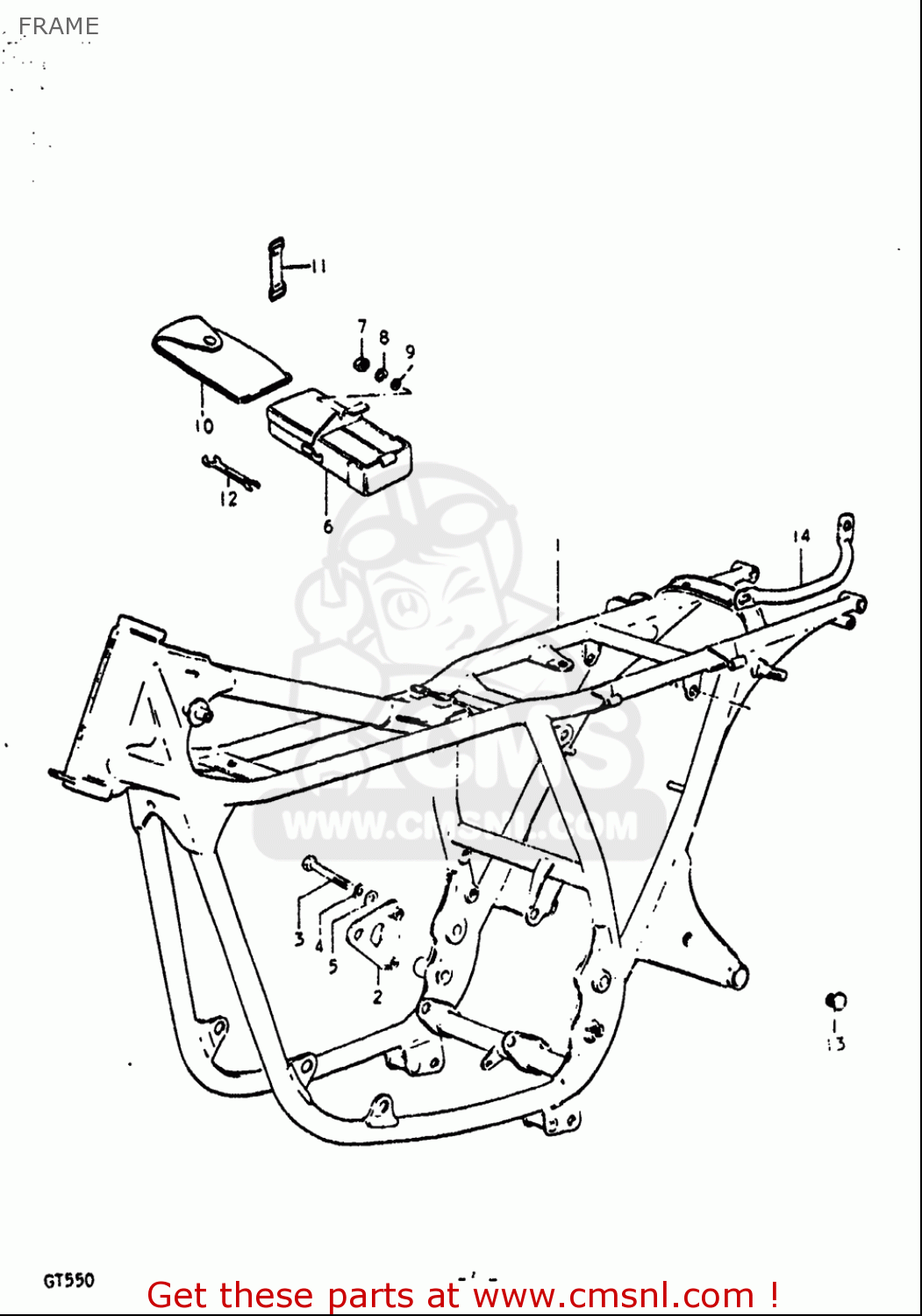

Frame diagram GT550 1972 (J) USA (E03)

FRAME GT550 1972 (J) USA (E03)

FRAME GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0150008557
ref: 3

BOLT

€ 3.00

4

0832101087
ref: 4

WASHER,LOCK

€ 2.00

5

0832201087
ref: 5

WASHER

€ 2.00

7

0831000067
ref: 7

NUT

€ 2.50

8

0832101067
ref: 8

WASHER,LOCK

€ 2.50

9

083220106A
ref: 9

WASHER

€ 2.00

10

0980021033
ref: 10

TOOL ASSY

€ 43.00

11

0946200041
ref: 11

BAND

€ 7.00

13

0925009001
ref: 13

CAP(OD:14)

€ 1.00
