FOOTREST BAR

GT550 1972 (J) USA (E03)

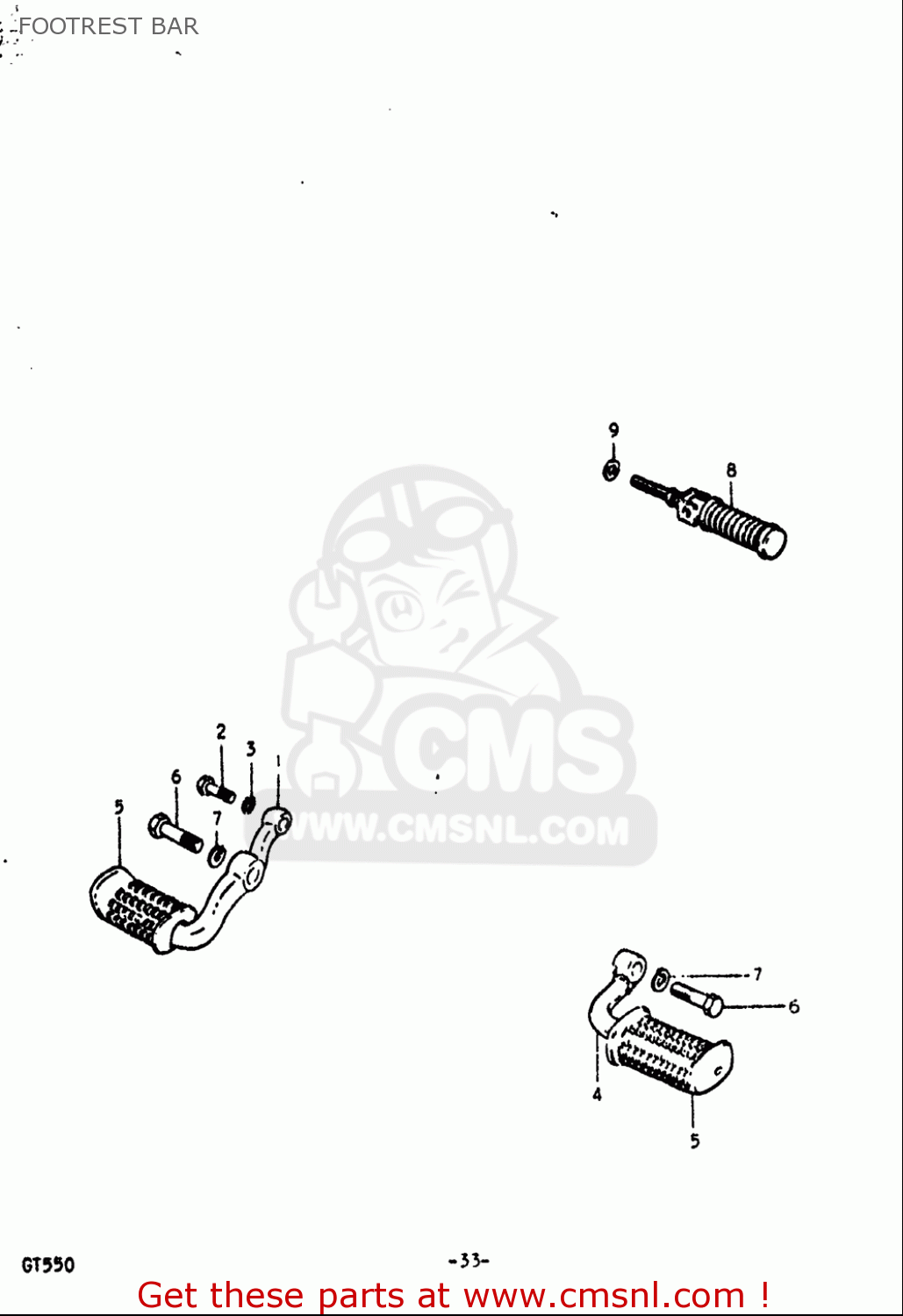

Footrest bar diagram GT550 1972 (J) USA (E03)

FOOTREST BAR GT550 1972 (J) USA (E03)

FOOTREST BAR GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0120408357
ref: 2

BOLT

€ 3.50

3

0832101087
ref: 3

WASHER,LOCK

€ 2.00

6

0910412101
ref: 6

BOLT

€ 3.00

7

0832101107
ref: 7

WASHER,LOCK

€ 2.00

8

4360031000
ref: 8

FOOTREST ASSY,PILLION

€ 33.00

9

0832201107
ref: 9

WASHER

€ 2.50
