FUEL TANK

GT550 1972 (J) USA (E03)

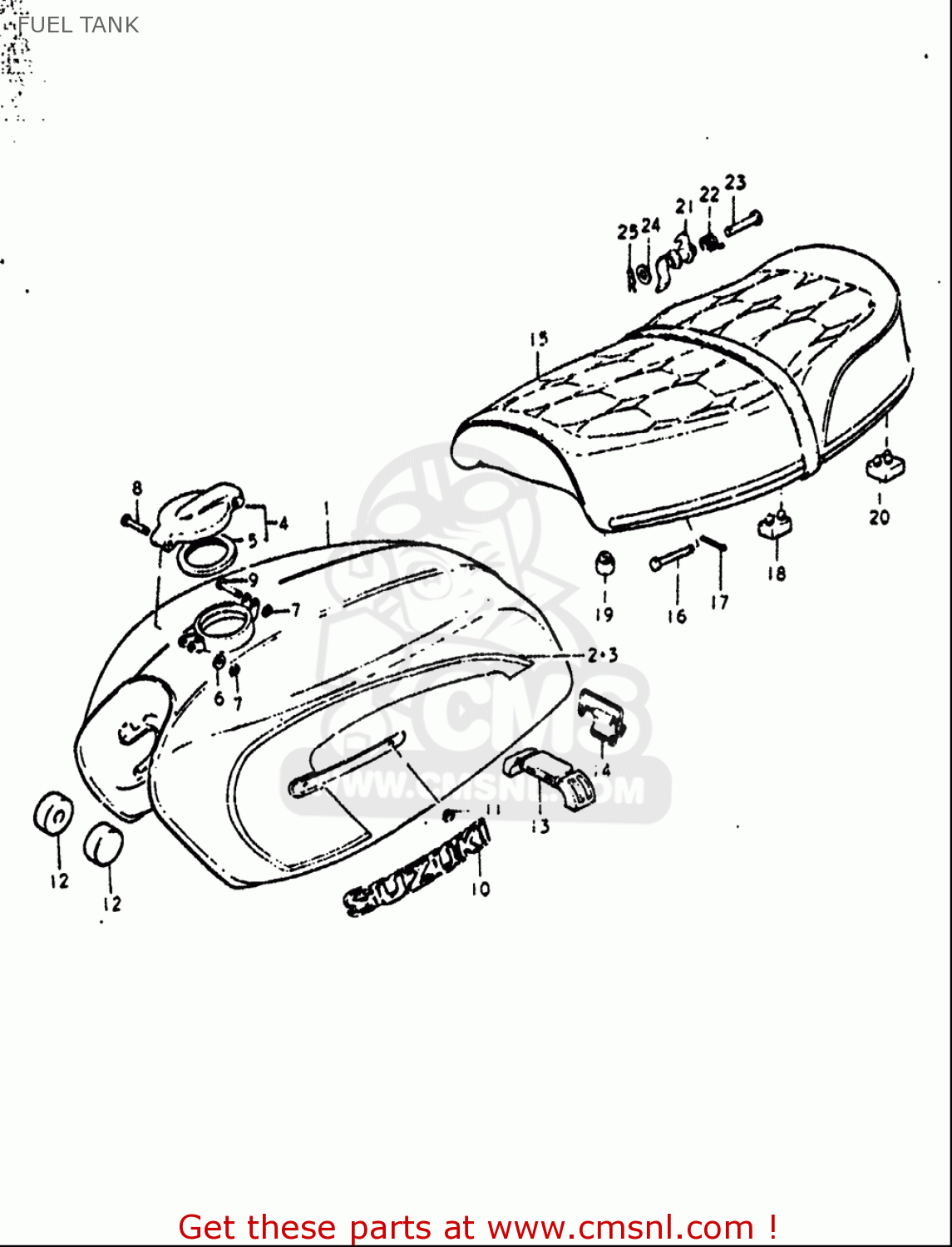

Fuel tank diagram GT550 1972 (J) USA (E03)

FUEL TANK GT550 1972 (J) USA (E03)

FUEL TANK GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

4

44200330V1
ref: 4

CAP ASSY,FUEL TANK

€ 122.00

5

4424833011
ref: 5

GASKET (NAS)

€ 17.50

6

4423833010
ref: 6

WASHER

€ 4.00

7

0938302003
ref: 7

E RING

€ 2.00

11

0914804005
ref: 11

NUT

€ 2.50

12

0932910007
ref: 12

CUSHION

€ 3.00

13

4454133000
ref: 13

CUSHION

€ 16.00

14

0946200049
ref: 14

BAND

€ 29.00

15

4510033X00865
ref: 15

SEAT ASSY

€ 596.00

16

0920006018
ref: 16

PIN

€ 2.00

17

0411120158
ref: 17

PIN

€ 1.50

18

0932108006
ref: 18

CUSHION

€ 3.00

19

0932110002
ref: 19

CUSHION(11.5X22X20)

€ 2.00

22

0944815001
ref: 22

SPRING

€ 3.50

23

0920006018
ref: 23

PIN

€ 2.00

24

0832201067
ref: 24

WASHER

€ 2.00
