HEADLAMP
GT550 1972 (J) USA (E03)

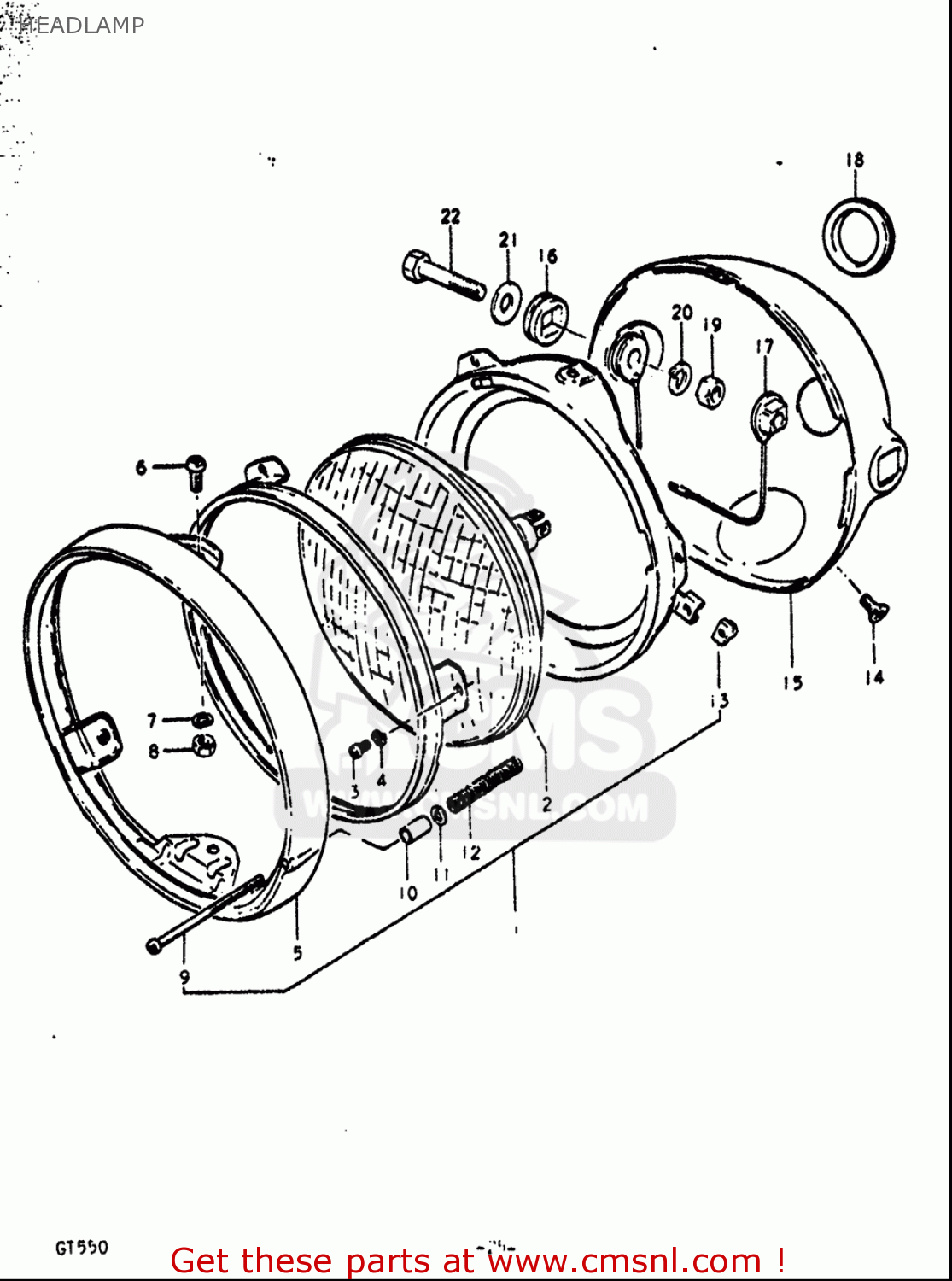

Headlamp diagram GT550 1972 (J) USA (E03)
HEADLAMP GT550 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
0211204087
ref: 3
SCREW
€ 1.50
4
0832101043
ref: 4
WASHER,LOCK
€ 2.00
5
3511134030
ref: 5
RIM,HEADLAMP
€ 54.00
6
0211205107
ref: 6
SCREW
€ 2.00
7
0832101057
ref: 7
WASHER,LOCK
€ 2.00
8
0831000057
ref: 8
NUT
€ 2.50
9
3515131610
ref: 9
SCREW
€ 4.00
11
0832201047
ref: 11
WASHER
€ 2.00
13
3515215611
ref: 13
NUT
€ 3.50
14
0212205127
ref: 14
SCREW
€ 2.50
15-2
5181034130
ref: 15-2
HOUSING,HEADLAMP
€ 270.00
16
5182731030
ref: 16
CUSHION,HOUSING
€ 5.50
17
5182131030
ref: 17
PIECE,ADJUSTER
€ 11.00
18
5184531031
ref: 18
GROMMET,HEADLAMP HOUSING
€ 4.00
19
0831000107
ref: 19
NUT
€ 2.50
20
0832101107
ref: 20
WASHER,LOCK
€ 2.00
21
0832201107
ref: 21
WASHER
€ 2.50
22
0120410307
ref: 22
BOLT
€ 2.00
