KICK STARTER

GT550 1972 (J) USA (E03)

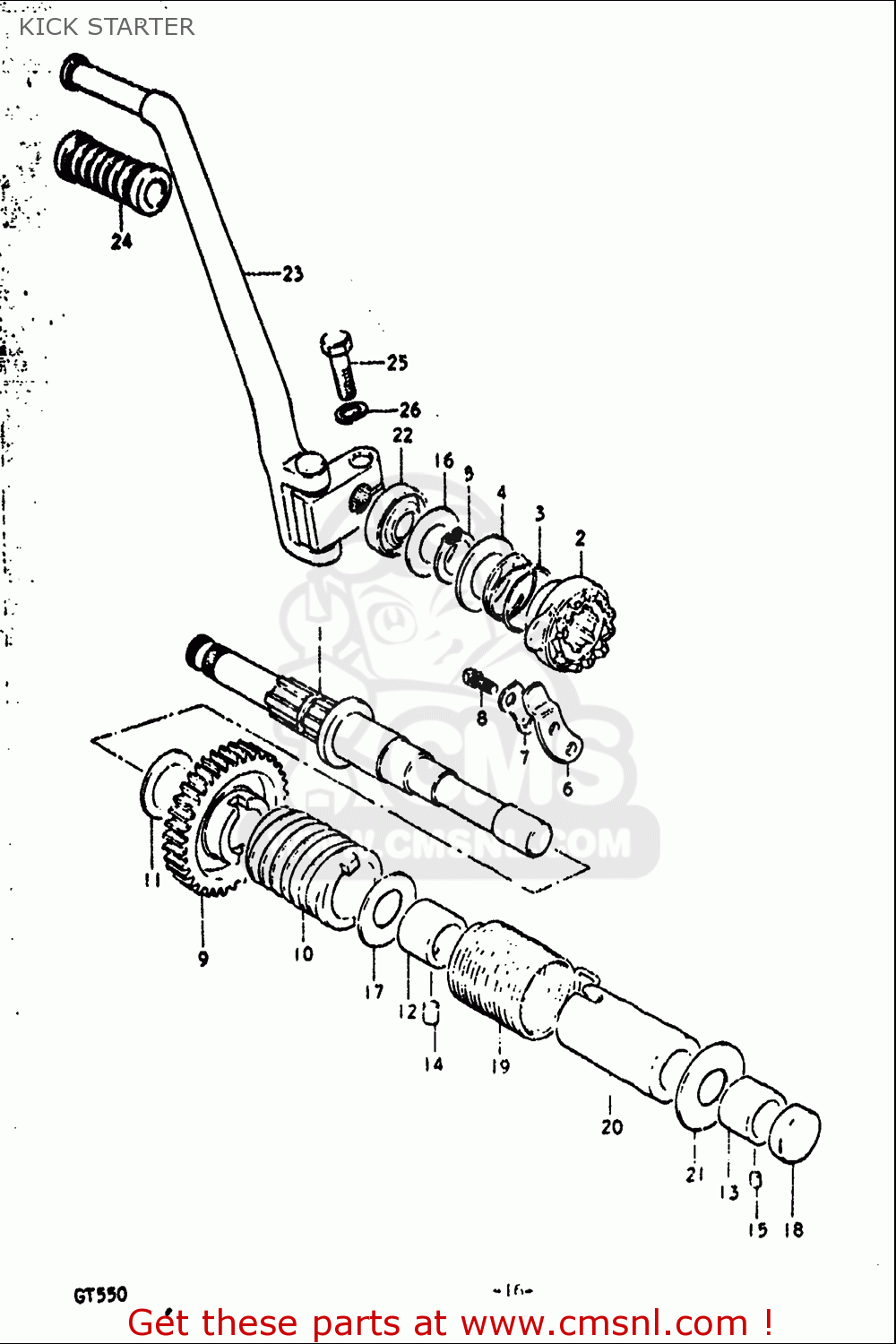

Kick starter diagram GT550 1972 (J) USA (E03)

KICK STARTER GT550 1972 (J) USA (E03)

KICK STARTER GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

2623134000
ref: 2

STARTER,KICK

€ 16.50

3

0944032002
ref: 3

SPRING

€ 2.00

5

0833131226
ref: 5

CIRCLIP

€ 2.00

8

0150006167
ref: 8

BOLT

€ 3.00

11

0918120167
ref: 11

SHIM(20X28X1)

€ 2.50

14

0422107129
ref: 14

PIN

€ 1.50

15

0422104069
ref: 15

PIN

€ 2.00

16

0821116303
ref: 16

THRUST WASHER

€ 4.00

17

0821117342
ref: 17

WASHER

€ 3.00

18

0924223001
ref: 18

PLUG

€ 4.50

19

0944837001
ref: 19

SPRING

€ 16.50

22

0928516002
ref: 22

SEAL,OIL(16X30X8)

€ 6.50

24

2635216401
ref: 24

RUBBER,KICK STARTER PEDAL

€ 4.00

25

0150010303
ref: 25

BOLT

€ 3.00

26

0832101107
ref: 26

WASHER,LOCK

€ 2.00
