FRAME COVER

GT550 1972 (J) USA (E03)

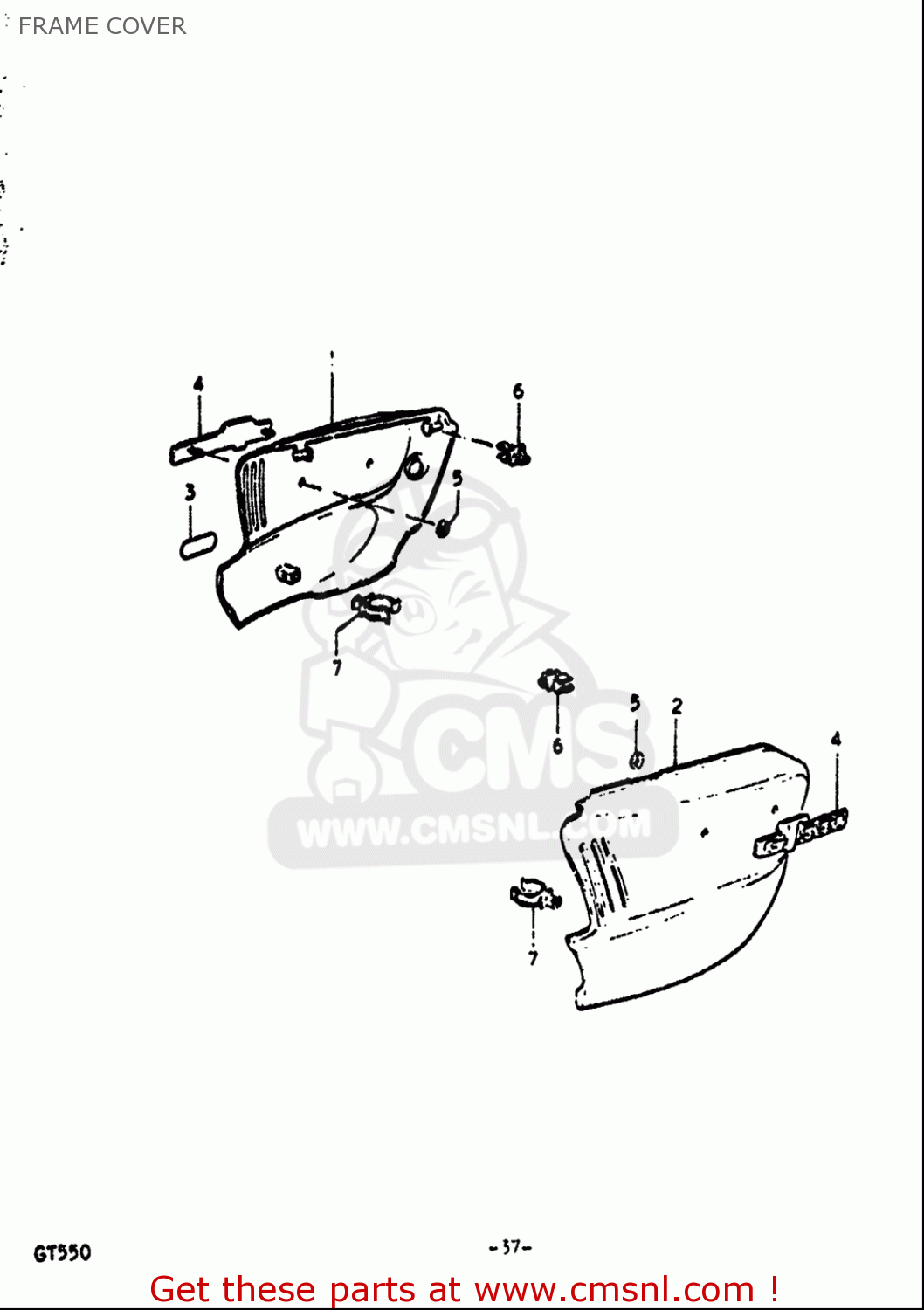

Frame cover diagram GT550 1972 (J) USA (E03)

FRAME COVER GT550 1972 (J) USA (E03)

FRAME COVER GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711134000
ref: 1-1

FRAME,COVER,RIGHT

€ 44.50

1-2

4711134000
ref: 1-2

FRAME,COVER,RIGHT

€ 44.50

2-1

4721134000
ref: 2-1

COVER,FRAME,LEFT

€ 52.50

2-2

4721134000
ref: 2-2

COVER,FRAME,LEFT

€ 52.50

3

6817126000
ref: 3

EMBLEM,CCIS

€ 4.00

4

6814134000
ref: 4

EMBLEM,FRAME COVER,R

€ 52.00

5

0914803011
ref: 5

NUT

€ 2.00

6

0940307306
ref: 6

CLAMP

€ 2.50
