REAR SWINGING ARM
GT550 1972 (J) USA (E03)

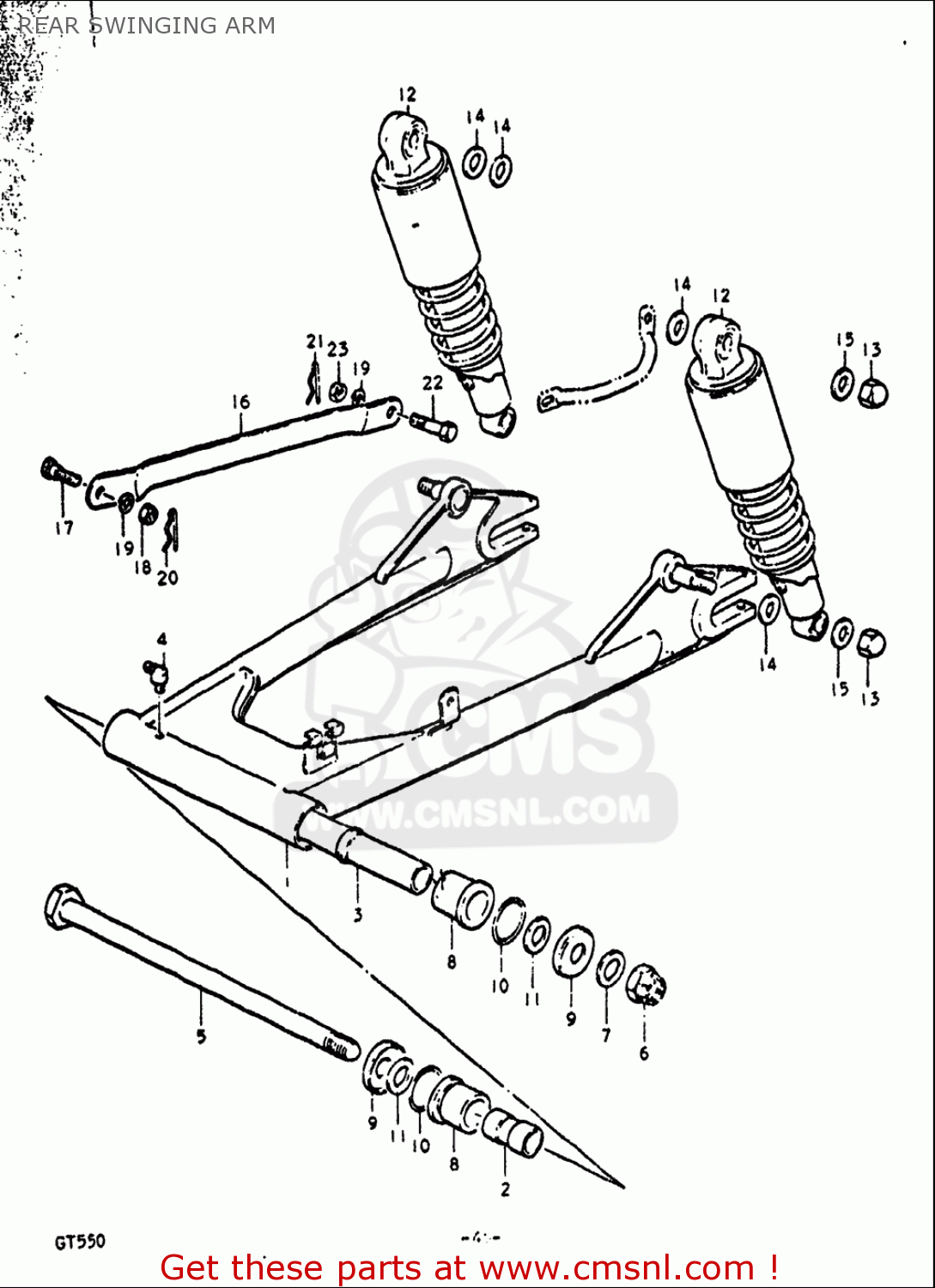

Rear swinging arm diagram GT550 1972 (J) USA (E03)
REAR SWINGING ARM GT550 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0930722003
ref: 2
BUSH
€ 18.00
4
0835131008
ref: 4
NIPPLE,GREASE
€ 10.50
5
6121131001
ref: 5
SHAFT,REAR SWING ARM
€ 62.50
7
0832201147
ref: 7
WASHER
€ 2.00
8
6125115001
ref: 8
SPACER
€ 21.00
9
6126215000
ref: 9
COVER
€ 84.00
10
0928030001
ref: 10
O RING(D:3,ID:29.5)
€ 2.00
11
0916014009
ref: 11
WASHER(14.5X29X2.3)
€ 3.50
13
0831310107
ref: 13
NUT
€ 2.50
14
0832201127
ref: 14
WASHER
€ 2.00
15
0916010127
ref: 15
WASHER (10.5X24X2.3)
€ 2.00
18
0832101107
ref: 18
WASHER,LOCK
€ 2.00
19
0832101107
ref: 19
WASHER,LOCK
€ 2.00
20
0938408001
ref: 20
SPRING,RETAINER
€ 3.00
21
0938510005
ref: 21
CLIP
€ 1.50
23
0831000107
ref: 23
NUT
€ 2.50
