REAR COMBINATION LAMP

GT550 1972 (J) USA (E03)

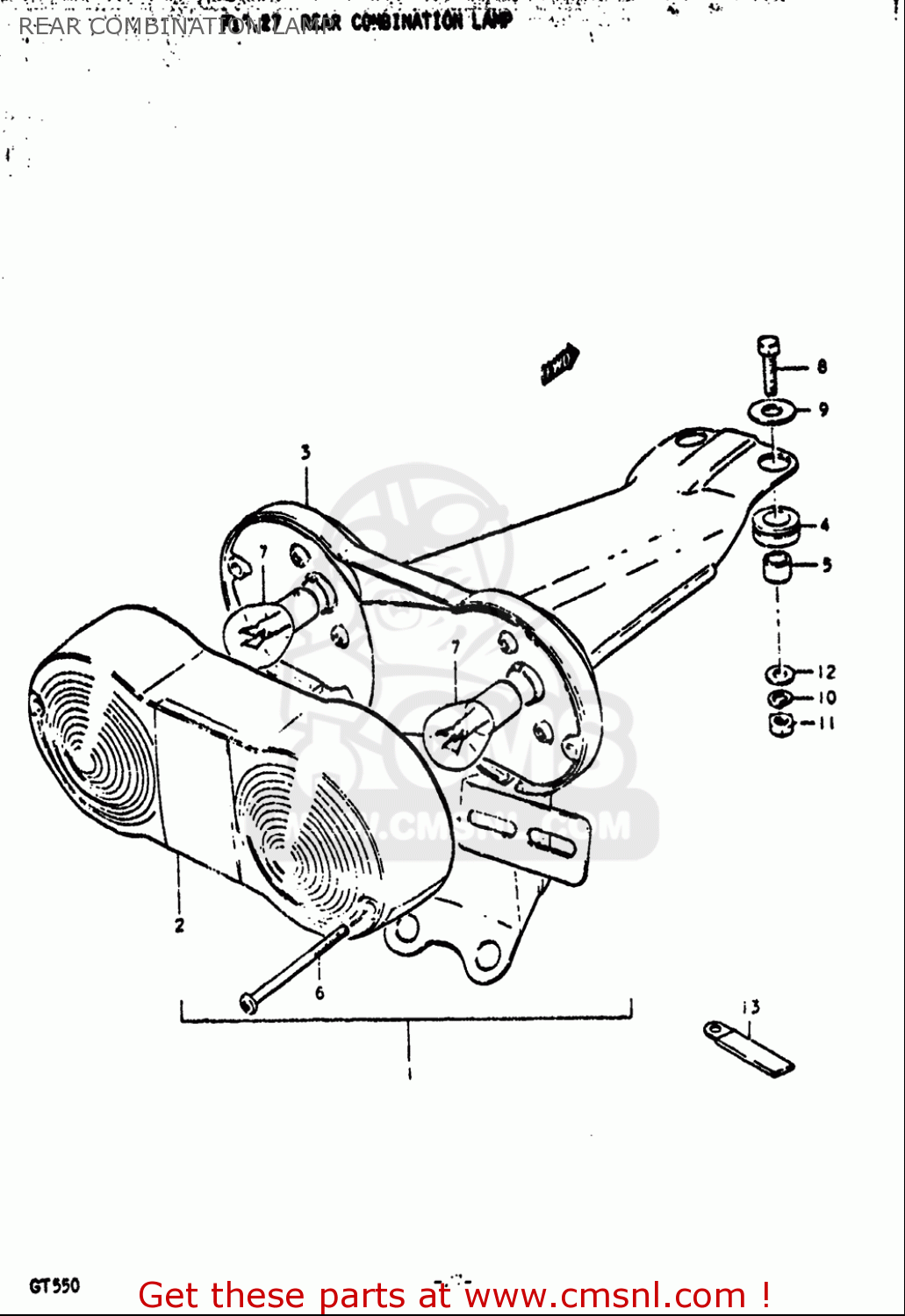

Rear combination lamp diagram GT550 1972 (J) USA (E03)

REAR COMBINATION LAMP GT550 1972 (J) USA (E03)

REAR COMBINATION LAMP GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

3571231610
ref: 2

LENS,REAR COMBINATION LAMP

€ 79.50

4

3576515010
ref: 4

CUSHION

€ 9.00

5

3576637110
ref: 5

SPACER

€ 11.50

6

0211204508
ref: 6

SCREW

€ 1.50

7

0947112035
ref: 7

BULB(12V23W)

€ 5.50

8

0120406257
ref: 8

BOLT

€ 1.50

9

0916006066
ref: 9

WASHER(6.5X20X1.6)

€ 2.00

10

0832101067
ref: 10

WASHER,LOCK

€ 2.50

11

0831000067
ref: 11

NUT

€ 2.50

12

0832201067
ref: 12

WASHER

€ 2.00

13

0940300069
ref: 13

CLAMP

€ 8.50
