CHAIN CASE

GT550 1972 (J) USA (E03)

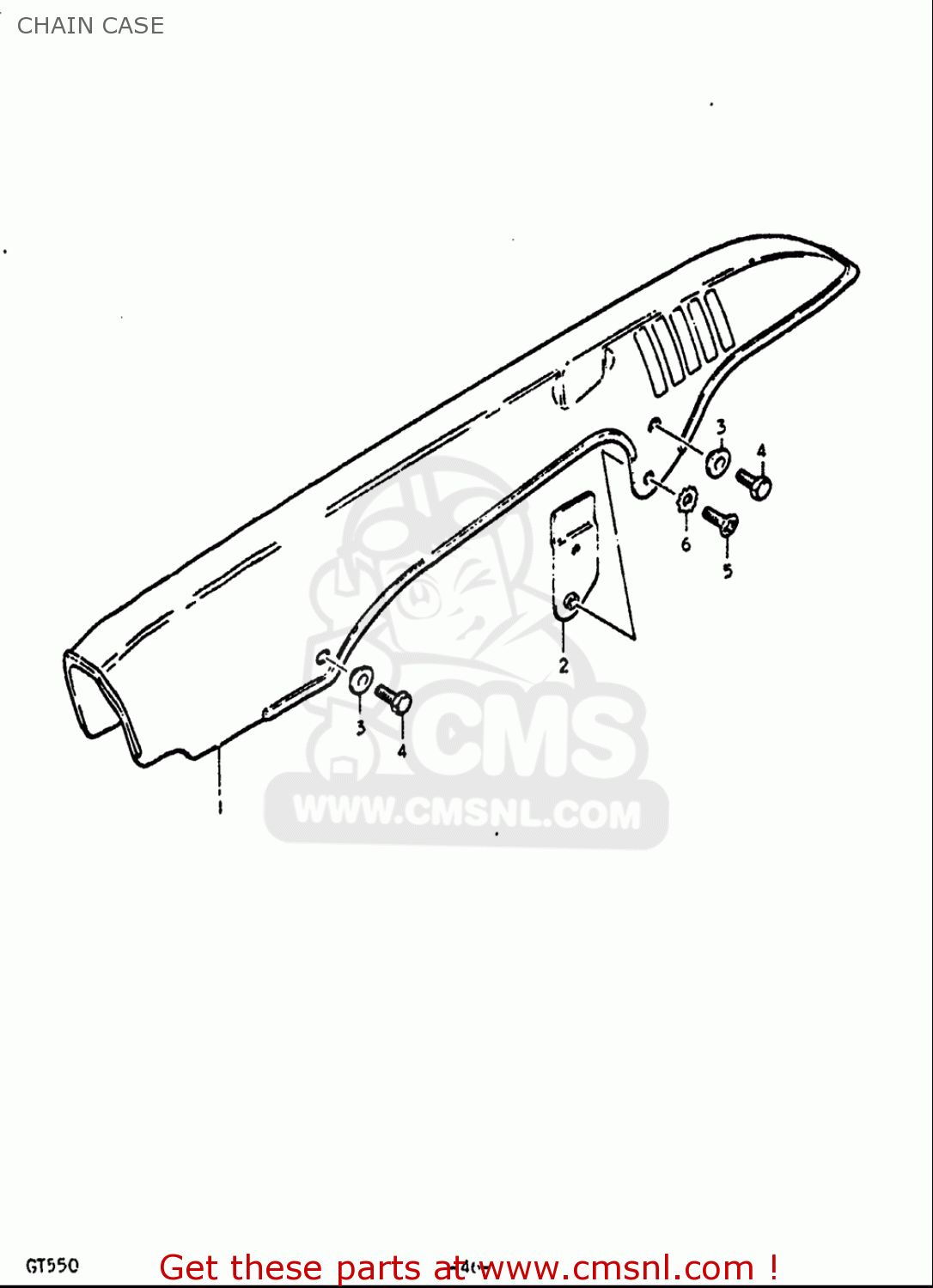

Chain case diagram GT550 1972 (J) USA (E03)

CHAIN CASE GT550 1972 (J) USA (E03)

CHAIN CASE GT550 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0916906010
ref: 3

WASHER

€ 3.00

4

0910006011
ref: 4

BOLT(6X8)

€ 2.50

5

0212206167
ref: 5

SCREW

€ 2.00

6

0832331068
ref: 6

LOCK WASHER

€ 1.50
