GT550 1972 (J) USA (E03)

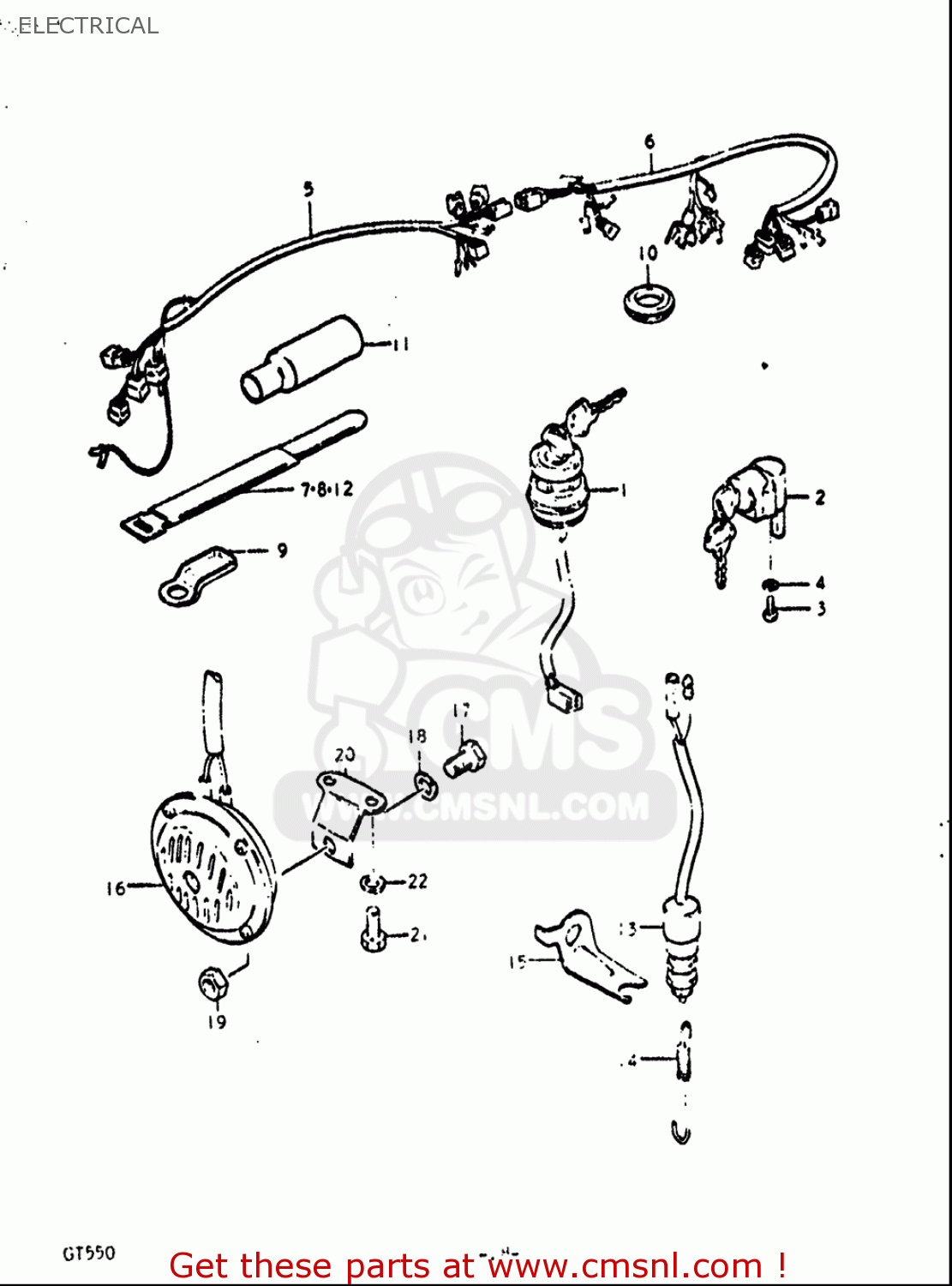

Electrical diagram GT550 1972 (J) USA (E03)
ELECTRICAL GT550 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3711033017
ref: 1
SWITCH ASSY,IGNITION
€ 94.50
2
5190033811
ref: 2
LOCK ASSY,STEERING
€ 32.50
3
0211205257
ref: 3
SCREW
€ 2.00
4
0832101057
ref: 4
WASHER,LOCK
€ 2.00
7
0940714301
ref: 7
CLAMP
€ 6.00
8
0940718301
ref: 8
CLAMP
€ 6.00
9
0940306301
ref: 9
CLAMP
€ 2.00
11
3661830000
ref: 11
BOOT,WIRING HARNESS
€ 8.50
12
0940718301
ref: 12
CLAMP
€ 6.00
13
3774048071
ref: 13
SWITCH ASSY,STOP LAMP
€ 22.00
14
0944306024
ref: 14
SPRING
€ 14.00
15
3775233001
ref: 15
BRACKET, BRAKE LAMP SWITCH
€ 7.00
17
0150008127
ref: 17
BOLT
€ 2.50
18
0832101087
ref: 18
WASHER,LOCK
€ 2.00
19
0831000087
ref: 19
NUT
€ 2.00
21
0150006127
ref: 21
BOLT
€ 2.00
22
0832101067
ref: 22
WASHER,LOCK
€ 2.50
