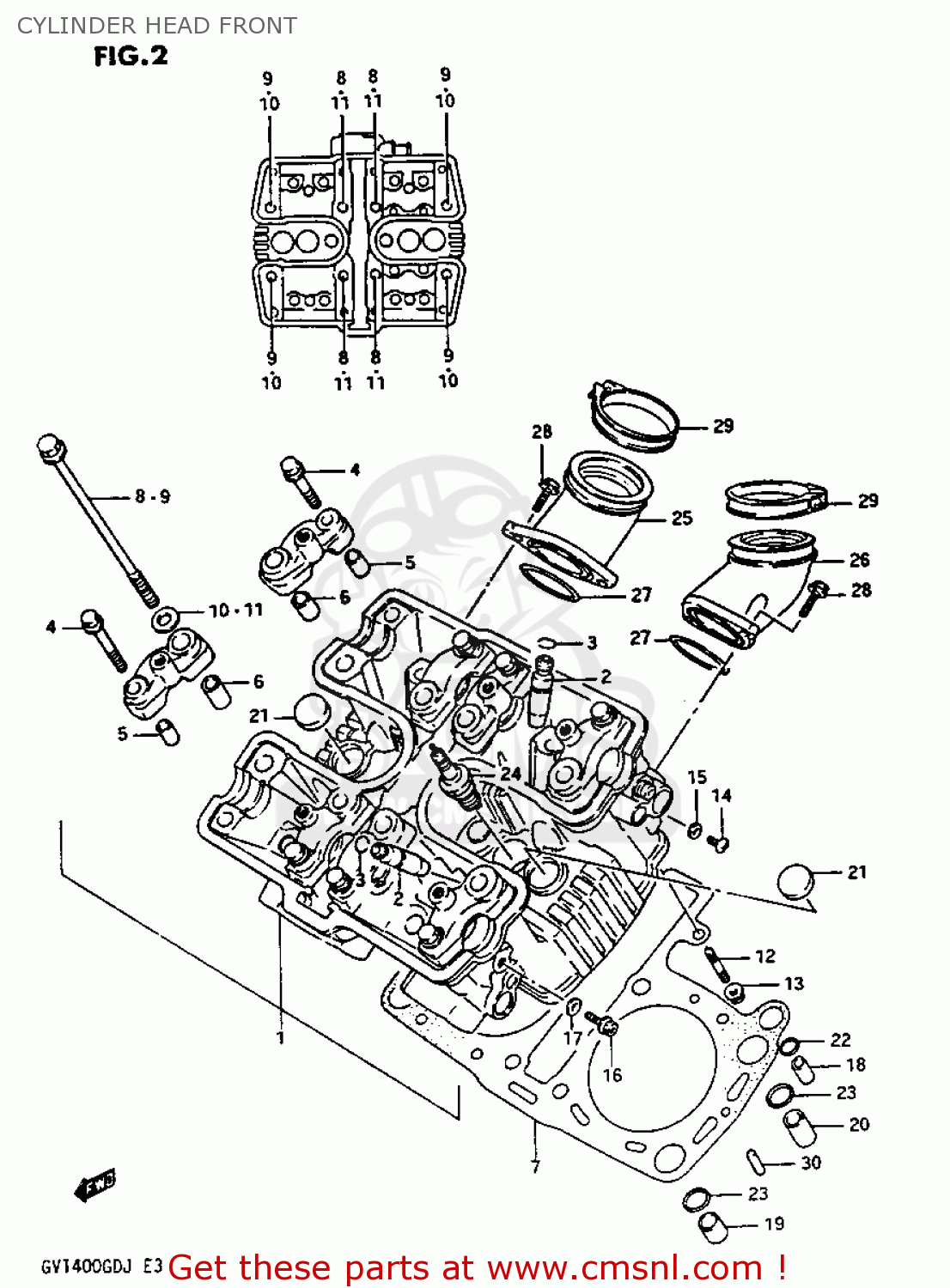

CYLINDER HEAD FRONT

ref

part #

description

quantity

1

1110124A00
ref: 1

HEAD ASSEMBLY,CYLINDER,FRONT

€ 1,332.50

2

1111524A71
ref: 2

GUIDE,VALVE

€ 43.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910308136
ref: 4

BOLT

€ 0.00

5

0920611005
ref: 5

PIN (11X20)(SUS)

€ 6.50

6

0920613004
ref: 6

PIN(10.4X13X22)

€ 3.00

7

1114124A00
ref: 7

GASKET,HEAD,FRONT (NAS)

€ 72.00

8

0910310104
ref: 8

BOLT

€ 7.50

9

0910310105
ref: 9

BOLT

€ 7.50

9

0910310105
ref: 9

BOLT

€ 7.50

10

0916011005
ref: 10

WASHER

€ 0.00

11

0916010085
ref: 11

WASHER (10X20X2.3)

€ 2.00

12

0142106255
ref: 12

STUD 6X25

€ 2.00

13

0831616064
ref: 13

NUT 6MM

€ 2.50

14

0211205085
ref: 14

SCREW

€ 2.00

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16

0712006125
ref: 16

BOLT

€ 3.50

17

0916806018
ref: 17

GASKET(6.2X13X1.2) (NAS)

€ 2.00

18

0920609009
ref: 18

PIN

€ 12.50

19

0920613013
ref: 19

PIPE

€ 0.00

20

0920613014
ref: 20

PIN

€ 1.50

21

0924222001
ref: 21

PLUG

€ 2.50

22

0928009005
ref: 22

O RING(D:1.9,ID:8.6)

€ 4.00

23

0928012009
ref: 23

O RING(D:1.9,ID:12.6)

€ 2.50

24-1

0948200343111
ref: 24-1

SPARK PLUG X22EPR-GL

€ 15.00

24-2

0948200381
ref: 24-2

SPARK PLUG PJR7A

€ 4.50

24-3

0948200344111
ref: 24-3
OPT

SPARK PLUG

€ 0.00

24-4

0948200380
ref: 24-4
OPT

SPARK PLUG PJR6A

€ 4.00

24-5

0948200345111
ref: 24-5
OPT

SPARK PLUG

€ 0.00

24-6

0948200382
ref: 24-6
OPT

SPARK PLUG PJR8A

€ 3.50

25-1

1311024A02
ref: 25-1
MODEL G/H OTHER THAN

PIPE,INTAKE

€ 83.50

25-2

1311024A02
ref: 25-2
MODEL J OTHER THAN C

PIPE,INTAKE

€ 83.50

25-3

1311024A10
ref: 25-3
MODEL G/H CALIFORNIA

PIPE,INTAKE

€ 83.50

25-4

1311024A12
ref: 25-4
MODEL J CALIFORNIA O

PIPE,INTAKE FR,R/RR,L

€ 83.50

26-1

1312024A02
ref: 26-1
MODEL G/H OTHER THAN

PIPE,INTAKE

€ 127.50

26-2

1312024A02
ref: 26-2
MODEL J OTHER THAN C

PIPE,INTAKE

€ 127.50

26-3

1312024A12
ref: 26-3
MODEL G/H CALIFORNIA

PIPE,INTAKE FR,L/RR,R

€ 127.50

26-4

1312024A12
ref: 26-4
MODEL J CALIFORNIA O

PIPE,INTAKE FR,L/RR,R

€ 127.50

27

0928040003
ref: 27

O-RING (D:2.4 ID:39.7)

€ 3.50

28

0151706207
ref: 28

BOLT 6X20

€ 2.50

29

1317005A00
ref: 29

CLAMP,PIPE

€ 9.00

30

0422104109
ref: 30

PIN

€ 1.50
