REAR SHOCK ABSORBER GV1400GDG/GCG/MODEL H/J

GV1400GC 1986 (G) (E01)

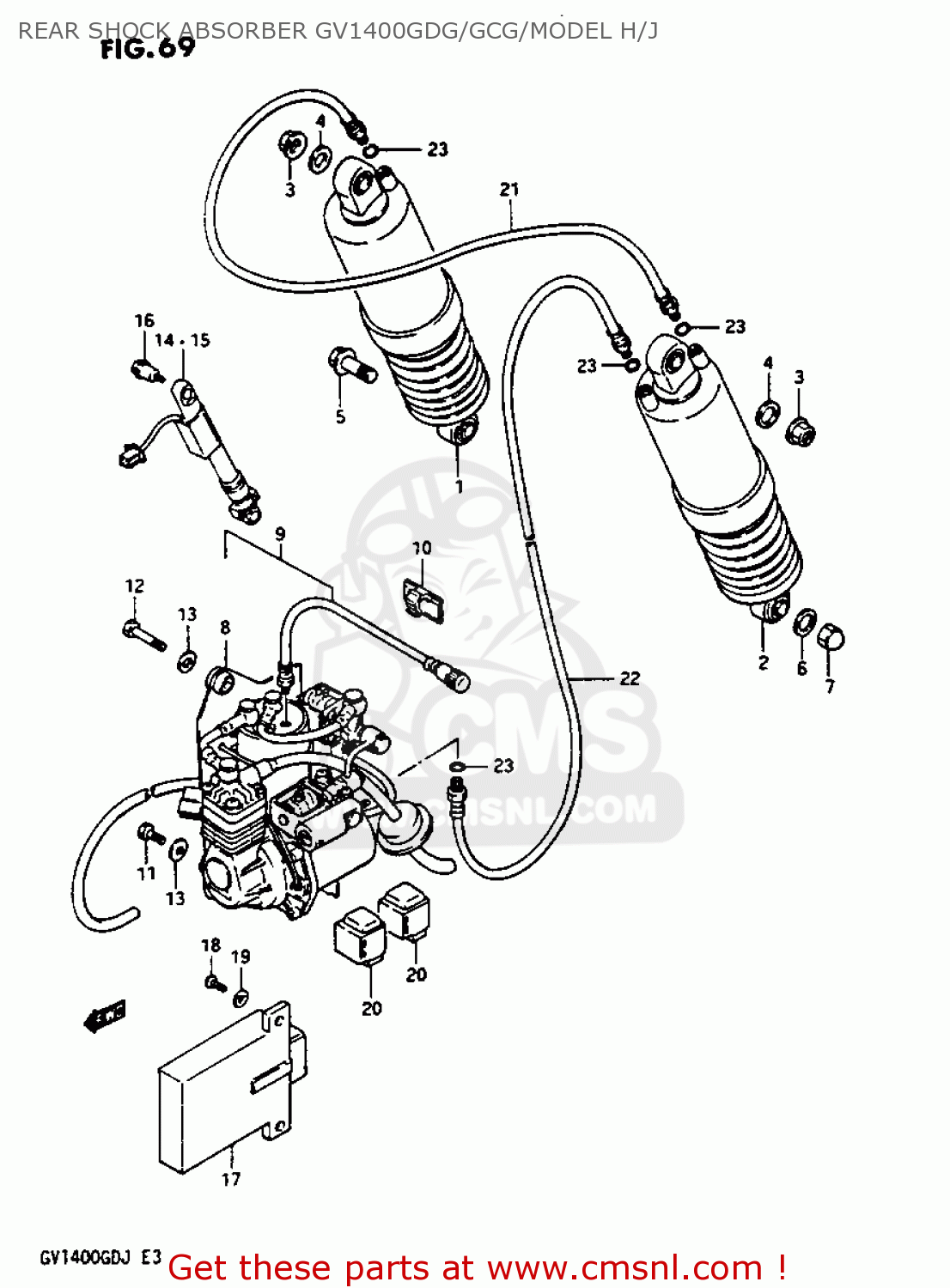

Rear shock absorber gv1400gdg/gcg/model h/j diagram GV1400GC 1986 (G) (E01)

REAR SHOCK ABSORBER GV1400GDG/GCG/MODEL H/J GV1400GC 1986 (G) (E01)

REAR SHOCK ABSORBER GV1400GDG/GCG/MODEL H/J GV1400GC 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

6210324A00
ref: 1

ABSORBER ASSY,RR SHOCK,R

€ 580.00

2

6210424A00
ref: 2

ABSORBER ASSY,RR SHOCK,L

€ 552.00

3

0831616108
ref: 3

NUT

€ 2.00

4

0832211128
ref: 4

WASHER

€ 2.00

5

0910312014
ref: 5

BOLT 2X33

€ 0.00

6

0916010001
ref: 6

WASHER

€ 2.00

7-1

0831310107
ref: 7-1
MODEL G

NUT

€ 2.50

7-2

0831012108
ref: 7-2
MODEL H/J

NUT

€ 2.50

8

6215024A01
ref: 8
GV1400GDG/GDH/GDJ

AUTO LEVEL ASSEMBLY,REAR SHOCK

€ 1,967.00

9

6215024A20
ref: 9
GV1400GCG/GCH

AUTO LEVEL ASSEMBLY,REAR SHOCK

€ 1,967.00

10

0940800082
ref: 10
GC1400GCG/GCH

CLAMP

€ 5.50

11

0150006257
ref: 11
MODEL G

BOLT

€ 2.00

12

0110706508
ref: 12
MODEL G

BOLT

€ 3.00

13

0916006027
ref: 13
MODEL G

WASHER (6.5X20X1.2)

€ 2.00

14

6255024A01
ref: 14
MODEL G

SENSOR ASSEMBLY,AUTO LEVEL

€ 321.50

15

6255024A01
ref: 15
MODEL H/J

SENSOR ASSEMBLY,AUTO LEVEL

€ 321.50

16

0911106040
ref: 16

BOLT(6X21)

€ 3.50

17

6259024A01
ref: 17

UNIT,AUTO LEVEL CONTROL

€ 424.50

18

0211205168
ref: 18

SCREW

€ 2.50

19

0832221057
ref: 19

WASHER

€ 2.50

20

6256024A01
ref: 20

RELAY ASSY, MARKER LAMP

€ 37.50

21

6257024A00
ref: 21

HOSE COMP,REAR SHOCK ABSORBER

€ 59.50

22

6258024A00
ref: 22

HOSE COMP,AUTO LEVEL

€ 77.00

23

0928006005
ref: 23

O RING(D:1.9,ID:5.7)

€ 2.50
