OIL PUMP

GV1400GC 1986 (G) (E01)

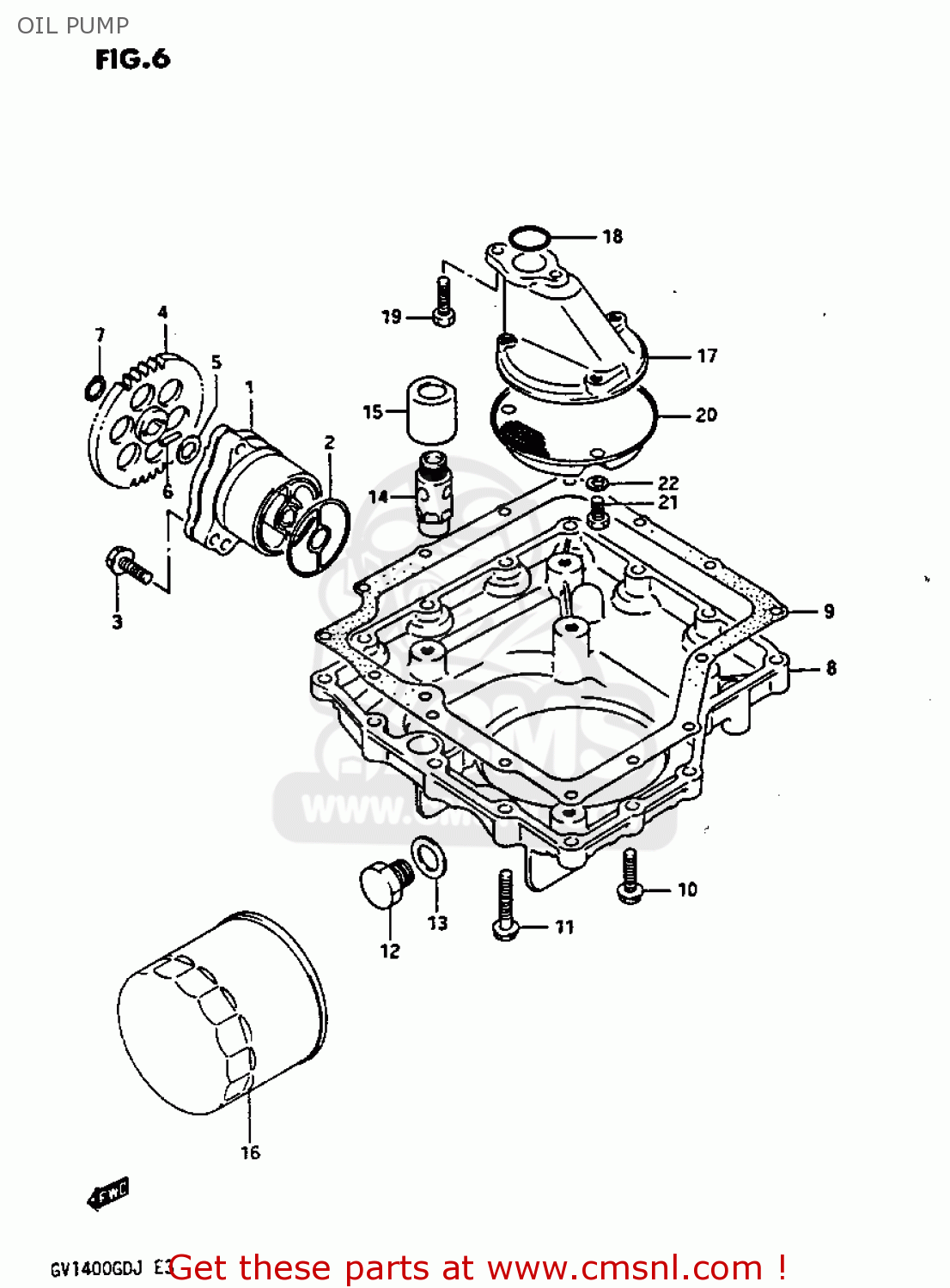

Oil pump diagram GV1400GC 1986 (G) (E01)

OIL PUMP GV1400GC 1986 (G) (E01)

OIL PUMP GV1400GC 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

1640024A00
ref: 1

PUMP ASSEMBLY,ENGINE OIL

€ 151.50

2

1649131300
ref: 2

O RING,OIL PUMP

€ 12.50

3

0151706307
ref: 3

BOLT

€ 2.00

4

1633105A01
ref: 4

GEAR,OIL PUMP DRIVEN

€ 38.00

5

0822110185
ref: 5

SHIM

€ 2.00

6

0926104009
ref: 6

PIN(4X15.8)

€ 1.50

7

0833131109
ref: 7

CIRCLIP

€ 2.00

8-1

1151124A01
ref: 8-1
MODEL G

PAN,OIL

€ 91.50

8-2

1151124A10
ref: 8-2
MODEL H/J

PAN,OIL

€ 91.50

9

1148905A00H17
ref: 9

GASKET,OIL PAN

€ 13.50

10

0151706257
ref: 10

BOLT 6X25

€ 2.50

11

0151706307
ref: 11

BOLT

€ 2.00

12

0924714001
ref: 12

PLUG

€ 5.00

13

0916814004
ref: 13

GASKET(14X19.2X2) (NAS)

€ 2.50

14

1644024A01
ref: 14

VALVE ASSY,OIL RELIEF

€ 52.00

15

1644924A00
ref: 15

GUIDE, VALVE

€ 0.00

16-1

1651005A00
ref: 16-1
MODEL G

FILTER ASSY,ENGINE OIL

€ 8.50

16-2

1651006B01
ref: 16-2
MODEL H/J

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

17

1652509301
ref: 17

PROTECTOR,OIL STRAINER

€ 16.00

18

0928018009
ref: 18

O RING(D:3.2,ID:17.8)

€ 8.00

19

0151706207
ref: 19

BOLT 6X20

€ 2.50

20

1652005A00
ref: 20

STRAINER,ENGINE OIL

€ 11.50

21

0150006127
ref: 21

BOLT

€ 2.00

22

0832101067
ref: 22

WASHER,LOCK

€ 2.50
