SIDE BAG MODEL J
GV1400GC 1986 (G) (E01)

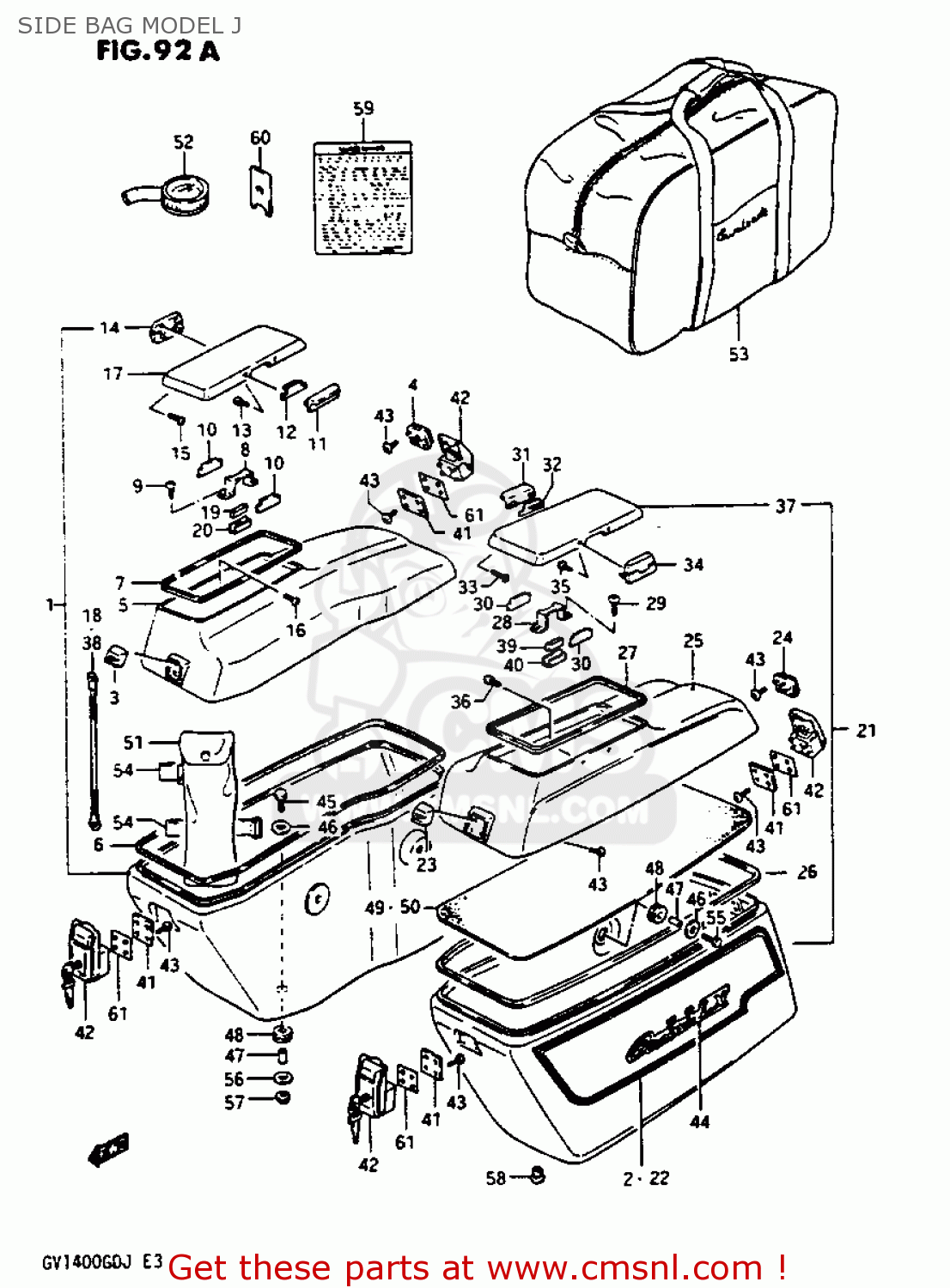

Side bag model j diagram GV1400GC 1986 (G) (E01)
SIDE BAG MODEL J GV1400GC 1986 (G) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
9540024A7020H
ref: 1-1
BAG ASSEMBLY,SIDE,RIGHT
€ 1,033.00
1-2
9540024A7038G
ref: 1-2
BAG ASSEMBLY,SIDE,RIGHT
€ 1,033.00
2-1
6826024A409VJ
ref: 2-1
FOR 20H
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-2
6826024A409VK
ref: 2-2
FOR 38G
TAPE SET,SIDE BAG,RIGHT
€ 0.00
3
9331624A02
ref: 3
PLATE,TRUNK LID LOCK
€ 15.00
4
9331624A13
ref: 4
PLATE,SIDE BAG LID LOCK
€ 15.00
5-1
9544024A2020H
ref: 5-1
FOR 20H
LID,SIDE BAG,RIGHT
€ 433.50
5-2
9544024A2038G
ref: 5-2
FOR 38G
LID,SIDE BAG,RIGHT
€ 0.00
6
9542224A01
ref: 6
SEAL,SIDE BAG
€ 10.50
7
9544624A02
ref: 7
SEAL,SIDE BAG
€ 9.00
8
9551624A00
ref: 8
HOLDER,LID LOCK MAGNET
€ 4.00
9
0351103125
ref: 9
SCREW
€ 0.00
10
9542324A10
ref: 10
PLATE,LID LOCK
€ 4.00
11
9544724A00
ref: 11
LEVER,SIDE POCKET OPEN
€ 19.50
12
9542424A00
ref: 12
PLATE,LID LOCK NO.1
€ 4.50
13
0214204065
ref: 13
SCREW
€ 1.50
14
9544324A00
ref: 14
HINGE,LID SIDE BAG POCKET
€ 47.00
15
0214204065
ref: 15
SCREW
€ 1.50
16
0214204125
ref: 16
SCREW
€ 1.50
17
9544824A00
ref: 17
LID,SIDE BAG POCKET
€ 65.50
18
9319124A00
ref: 18
BAND,SIDE BAG LID
€ 8.00
19
9544924A00
ref: 19
MAGNET
€ 0.00
20
9551724A00
ref: 20
BOX, HOLDER
€ 3.00
21-1
9550024A7020H
ref: 21-1
SIDE BAG ASSEMBLY,LEFT
€ 531.00
21-2
9550024A7038G
ref: 21-2
BAG ASSEMBLY,SIDE,LEFT
€ 531.00
22-1
6829024A409VJ
ref: 22-1
FOR 20H
TAPE SET,SIDE BAG,LEFT
€ 72.00
22-2
6829024A409VK
ref: 22-2
FOR 38G
TAPE SET
€ 0.00
23
9331624A02
ref: 23
PLATE,TRUNK LID LOCK
€ 15.00
24
9331624A13
ref: 24
PLATE,SIDE BAG LID LOCK
€ 15.00
25-1
9554024A2020H
ref: 25-1
FOR 20H
LID,SIDE BAG,LEFT
€ 389.50
25-2
9554024A2038G
ref: 25-2
FOR 38G
LID,SIDE BAG,LEFT (MAROON)
€ 389.50
26
9542224A01
ref: 26
SEAL,SIDE BAG
€ 10.50
27
9544624A02
ref: 27
SEAL,SIDE BAG
€ 9.00
28
9551624A00
ref: 28
HOLDER,LID LOCK MAGNET
€ 4.00
29
0351103125
ref: 29
SCREW
€ 0.00
30
9542324A10
ref: 30
PLATE,LID LOCK
€ 4.00
31
9544724A00
ref: 31
LEVER,SIDE POCKET OPEN
€ 19.50
32
9542424A00
ref: 32
PLATE,LID LOCK NO.1
€ 4.50
33
0214204065
ref: 33
SCREW
€ 1.50
34
9544324A00
ref: 34
HINGE,LID SIDE BAG POCKET
€ 47.00
35
0214204065
ref: 35
SCREW
€ 1.50
36
0214204125
ref: 36
SCREW
€ 1.50
37
9544824A00
ref: 37
LID,SIDE BAG POCKET
€ 65.50
38
9319124A00
ref: 38
BAND,SIDE BAG LID
€ 8.00
39
9544924A00
ref: 39
MAGNET
€ 0.00
40
9551724A00
ref: 40
BOX, HOLDER
€ 3.00
41
9312424A00
ref: 41
SET PLATE,LOCK SIDE BA
€ 5.00
42
9330024820
ref: 42
LOCK SET,SIDE BAG
€ 96.50
43
0214205084
ref: 43
SCREW
€ 2.00
44
6826124A10
ref: 44
EMBLEM,SIDE BAG,RIGHT
€ 29.00
45
0150006307
ref: 45
BOLT
€ 2.50
46
0916006030
ref: 46
WASHER (6.5X29X1.6)
€ 2.50
47
0918006055
ref: 47
SPACER(6.3X9.3X16.5)
€ 4.00
48
0932009017
ref: 48
CUSHION
€ 3.00
49
9541624A00
ref: 49
SEAT, BOTTOM RH
€ 13.50
50
9541724A00
ref: 50
SEAT, BOTTOM LH
€ 13.50
51
0980000293
ref: 51
TOOL ASSY
€ 448.50
52
9620041330
ref: 52
GAUGE ASSY,AIR PRESSURE
€ 77.50
53
9545024A01
ref: 53
LUGGAGE BAG,SIDE BAG
€ 131.50
54
0946200040
ref: 54
BAND
€ 4.50
55
0910406004
ref: 55
BOLT(6X30)
€ 3.00
56
0916006013
ref: 56
WASHER (6.5X18X2)
€ 10.50
57
0831931067
ref: 57
NUT
€ 2.50
58
0925008013
ref: 58
CAP(OD:12)
€ 2.00
59
6861324A20
ref: 59
LABEL (WARNING TRAVEL T
€ 0.00
60
0981300038
ref: 60
SPANNER
€ 0.00
61
9331424A01
ref: 61
PACKING SEAT
€ 3.50
50
9330024820
ref: 50
LOCK SET,SIDE BAG
€ 96.50
51
0214205084
ref: 51
SCREW
€ 2.00
52
6826124A10
ref: 52
GV1409GDH
EMBLEM,SIDE BAG,RIGHT
€ 29.00
53
6826124A20
ref: 53
GV1409GCH
EMBLEM
€ 25.00
54
0150006307
ref: 54
BOLT
€ 2.50
55
0916006030
ref: 55
WASHER (6.5X29X1.6)
€ 2.50
56
0918006055
ref: 56
SPACER(6.3X9.3X16.5)
€ 4.00
57
0932009017
ref: 57
CUSHION
€ 3.00
58
9541624A00
ref: 58
SEAT, BOTTOM RH
€ 13.50
59
9541724A00
ref: 59
SEAT, BOTTOM LH
€ 13.50
60
0980000293
ref: 60
TOOL ASSY
€ 448.50
61
9620041330
ref: 61
GAUGE ASSY,AIR PRESSURE
€ 77.50
62
9545024A01
ref: 62
LUGGAGE BAG,SIDE BAG
€ 131.50
63
0946200040
ref: 63
BAND
€ 4.50
64
0910406004
ref: 64
BOLT(6X30)
€ 3.00
65
0916006013
ref: 65
WASHER (6.5X18X2)
€ 10.50
66
0831931067
ref: 66
NUT
€ 2.50
67
0925008013
ref: 67
CAP(OD:12)
€ 2.00
68
6861324A20
ref: 68
LABEL (WARNING TRAVEL T
€ 0.00
69
0981300038
ref: 69
SPANNER
€ 0.00
70
9331424A01
ref: 70
PACKING SEAT
€ 3.50
