FUEL TANK

GV1400GC 1986 (G) (E01)

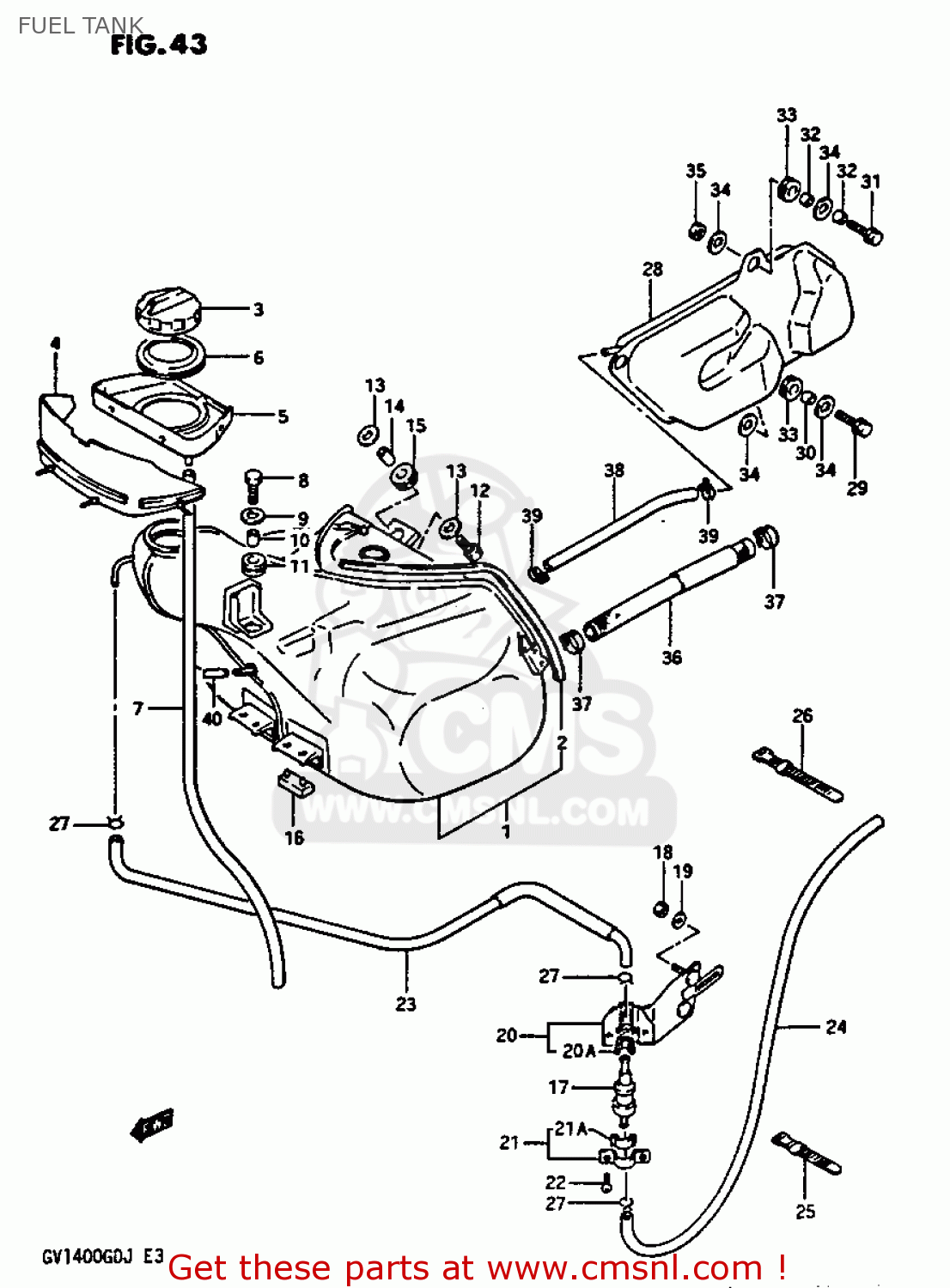

Fuel tank diagram GV1400GC 1986 (G) (E01)

FUEL TANK GV1400GC 1986 (G) (E01)
FUEL TANK GV1400GC 1986 (G) (E01)
FUEL TANK GV1400GC 1986 (G) (E01)
prices are in EUR
ref
part #
description
quantity
1
4410024A01019
ref: 1
TANK ASSEMBLY,FUEL
€ 814.00
2-1
6824124A00
ref: 2-1
MOLDING,FUEL TANK
€ 10.00
2-2
6824224A00
ref: 2-2
MOLDING, NO.2
€ 10.00
2-3
6824324A00
ref: 2-3
MOLDING, NO.3
€ 10.00
3
4420024A00
ref: 3
CAP ASSEMBLY,FUEL TANK
4420024A00
€ 43.50
4
4426224A00
ref: 4
COVER,FUEL INLET TRAY
€ 15.50
5
4411924A00
ref: 5
TRAY, FUEL INLET
€ 5.00
6
4426124A00
ref: 6
JOINT,FUEL INLET,TRAY
€ 5.00
7-1
093527011300A
ref: 7-1
MODEL G/H
HOSE
€ 24.50
7-2
0935270113655
ref: 7-2
MODEL J
HOSE
€ 24.50
8
0110706206
ref: 8
BOLT,M6X1X20
0110706206
€ 2.00
9
0916006066
ref: 9
WASHER(6.5X20X1.6)
0916006066
€ 2.00
10-1
0918006038
ref: 10-1
MODEL G
SPACER(6.1X9X7.5)
0918006038
€ 2.00
10-2
0918006103
ref: 10-2
MODEL H/J
SPACER(6.2X9X7.5)
0918006103
€ 1.50
11
0932008021
ref: 11
CUSHION
0932008021
€ 4.00
12
0110708258
ref: 12
BOLT
0110708258
€ 2.50
13
0916008002
ref: 13
WASHER (8.5X29X1.6)
0916008002
€ 2.00
14
0918008077
ref: 14
SPACER (8.6X13.8X8)
€ 4.50
15
0932013005
ref: 15
CUSHION
0932013005
€ 4.50
16
0932108013
ref: 16
CUSHION
€ 0.00
17
4424038A00
ref: 17
VALVE,FUEL TANK BREATHER
4424038A00
€ 35.00
18
0831921068
ref: 18
NUT 6MM
0831921068
€ 2.00
19
0916006056
ref: 19
WASHER(6.5X18X1)
0916006056
€ 2.00
20-1
4489024A01
ref: 20-1
MODEL G
PLATE,TANK BREATHER VALVE
€ 0.00
20-2
4489024A01
ref: 20-2
MODEL H/J
PLATE,TANK BREATHER VALVE
€ 0.00
20A
4489424A00
ref: 20A
CUSHION
4489424A00
€ 1.50
21
4489224A00
ref: 21
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
21A
4489424A00
ref: 21A
CUSHION
4489424A00
€ 1.50
22
0214204103
ref: 22
SCREW
0214204103
€ 1.50
23
0934305373
ref: 23
HOSE
€ 0.00
24
0934305414
ref: 24
HOSE
€ 3.50
25
0940714403
ref: 25
CLAMP(L:125)
0940714403
€ 2.50
26
0940718401
ref: 26
CLAMP(L:187)
0940718401
€ 2.00
27
0940111410
ref: 27
(CA) CLIP
0940111410
€ 2.50
28
4911024A00
ref: 28
SUB TANK,FUEL
€ 98.00
29
0910308199
ref: 29
BOLT
€ 2.50
30
0918008001
ref: 30
SPACER (8.8X12X11)
0918008001
€ 2.00
31
0151708407
ref: 31
BOLT 8X40
€ 3.50
32
0918008033
ref: 32
SPACER(8.4X12X12)
0918008033
€ 2.50
33
0932011008
ref: 33
CUSHION
0932011008
€ 3.00
34
0916008067
ref: 34
WASHER
€ 2.00
35
0831931085
ref: 35
NUT
0831931085
€ 2.50
36
0934313008
ref: 36
HOSE
€ 0.00
37-1
0940225502
ref: 37-1
MODEL G
CLAMP
0940225502
€ 8.50
37-2
0940225502
ref: 37-2
MODEL H/J
CLAMP
0940225502
€ 8.50
38
0934307185
ref: 38
HOSE
€ 0.00
39
0940215502
ref: 39
CLAMP
€ 8.00
40-1
0934408014
ref: 40-1
MODEL G/H
HOSE
€ 5.50
40-2
0935180902048
ref: 40-2
MODEL J
HOSE
€ 5.50
