REAR END MARKER LAMP SET OPTIONAL

GV1400GC 1986 (G) (E01)

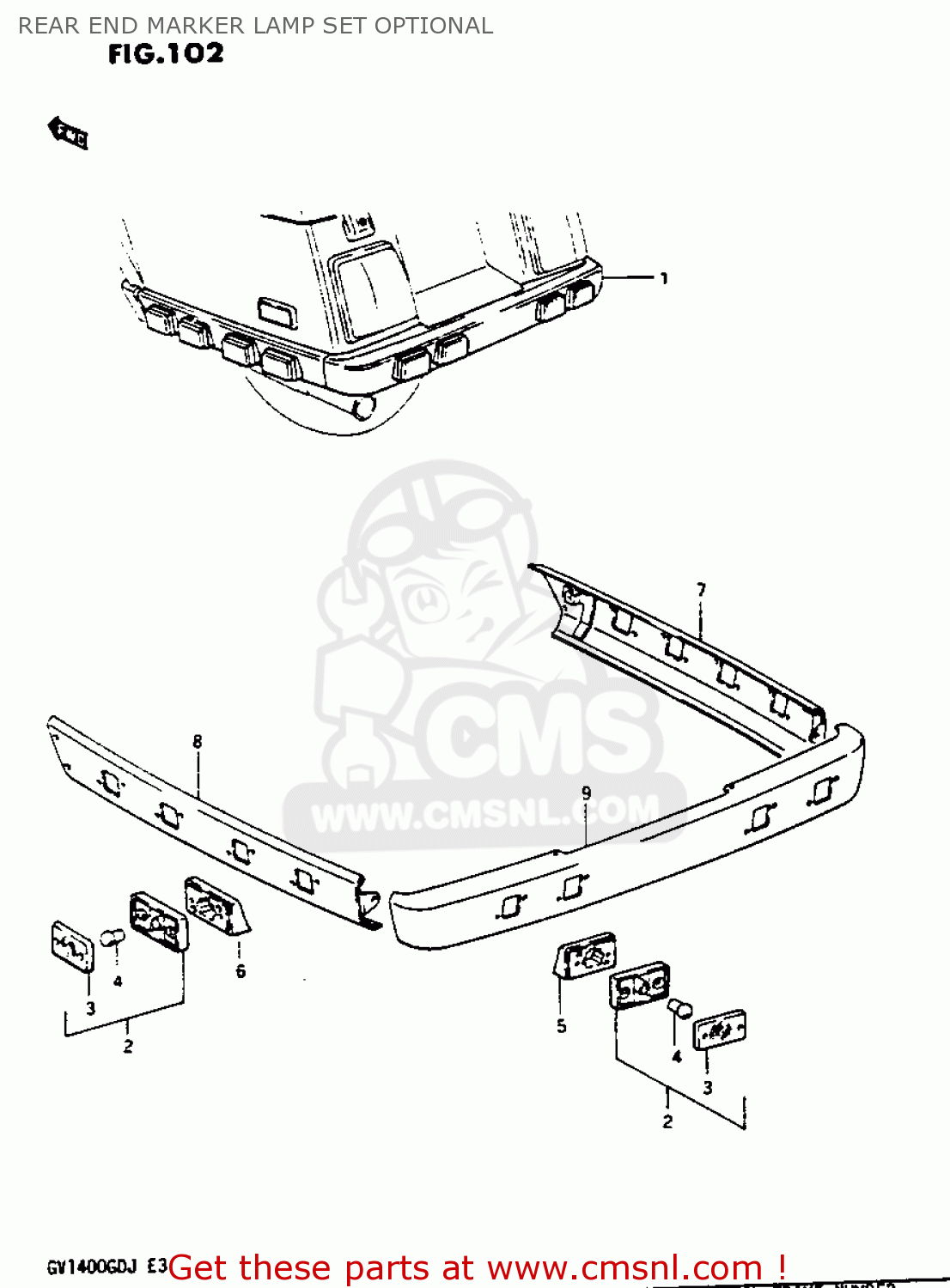

Rear end marker lamp set optional diagram GV1400GC 1986 (G) (E01)

REAR END MARKER LAMP SET OPTIONAL GV1400GC 1986 (G) (E01)
REAR END MARKER LAMP SET OPTIONAL GV1400GC 1986 (G) (E01)
REAR END MARKER LAMP SET OPTIONAL GV1400GC 1986 (G) (E01)
prices are in EUR
ref
part #
description
quantity
1
3650024852
ref: 1
REAR END,MARKER LAMP S
€ 798.00
2
3657024A20
ref: 2
TRAVEL TRUNK,MARKER LAMP
€ 0.00
3
3657224A10
ref: 3
LENS
3657224A10
€ 9.50
4
0947112115
ref: 4
BULB 12V 3W
0947112115
€ 2.50
5
3576524A00
ref: 5
BASE,MARKER LAMP MOUNT
€ 0.00
6
3576524A10
ref: 6
BASE,MARKER LAMP MOUNT
€ 0.00
7
9472024A90
ref: 7
REAR END,RIGHT COVER
€ 139.50
8
9473024A90
ref: 8
REAR END,LEFT COVER
€ 125.50
9
9489024A91
ref: 9
TRIM,SIDE BAG CARRIER
€ 175.50
