MUFFLER

GV1400GC 1986 (G) (E01)

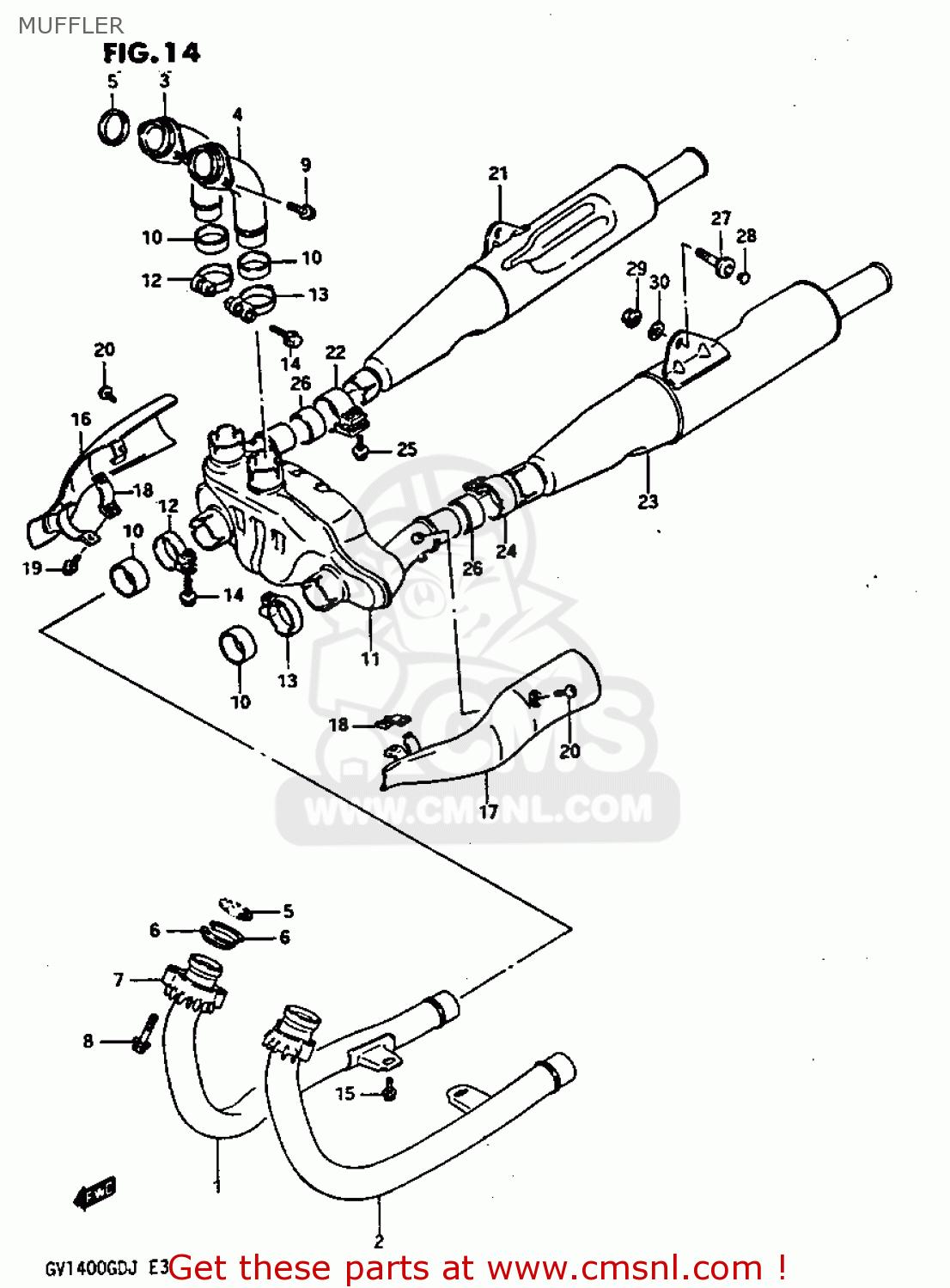

Muffler diagram GV1400GC 1986 (G) (E01)

MUFFLER GV1400GC 1986 (G) (E01)

MUFFLER GV1400GC 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

1415024A01
ref: 1

PIPE COMP,EXHAUST,FRONT

€ 139.00

2

1416024A01
ref: 2

PIPE,EXHAUST FR,L(#2)

€ 153.00

3

1417024A00
ref: 3

PIPE,EXHAUST RR,R(#3)

€ 112.00

4

1418024A01
ref: 4

PIPE,EXHAUST RR,L(#1)

€ 112.00

5

1418119B00
ref: 5

GASKET,EXHAUST PIPE (NAS)

€ 8.50

6

1415524A00
ref: 6

SPACER,EXHAUST PIPE

€ 14.00

7

1418249011
ref: 7

CLAMP(H:21)

€ 49.00

8

0712008457
ref: 8

BOLT

€ 3.50

9

0712008308
ref: 9

BOLT, REAR

€ 3.50

10

1477105A11
ref: 10

CONNECTOR,MUFFLER

€ 23.00

11

1420024A00H01
ref: 11

BODY ASSY,PRE MUFFLER

€ 416.50

12

1445914A10
ref: 12

CLAMP,MUFFLER,R(L:42.7)

€ 10.50

13

1446924B00
ref: 13

CLAMP,MUFFLER CONNECTOR

€ 16.00

14

0151708407
ref: 14

BOLT 8X40

€ 3.50

15

0910308123
ref: 15

BOLT

€ 2.00

16

1478024A01
ref: 16

COVER,MUFFLER,R

€ 44.50

17

1479024A01
ref: 17

COVER,MUFFLER,L

€ 45.50

18

1478524A00
ref: 18

CLAMP,MUFFLER COVER

€ 36.50

19

0910306070
ref: 19

BOLT

€ 2.00

20

0912506071
ref: 20

SCREW(6X8)

€ 2.50

21

1431024A02H01
ref: 21

MUFFLER,RIGHT

€ 392.00

22

1445924A00
ref: 22

CLAMP,CONNECTOR MUFFLER

€ 14.00

23

1434024A02H01
ref: 23

MUFFLER,LEFT

€ 224.50

24

1446924A00
ref: 24

CLAMP,CONNECTOR MUFFLER,L

€ 14.00

25

0110708358
ref: 25

BOLT

€ 3.50

26

1477124A00
ref: 26

CONNECTOR,MUFFLER

€ 21.50

27

0910610010
ref: 27

BOLT(10X50)

€ 44.00

28

0925008014
ref: 28

CAP(OD:12)

€ 3.50

29

0915910014
ref: 29

NUT

€ 2.00

30

0916010069
ref: 30

WASHER (10X18X3.2)

€ 2.00
