prices are in EUR
ref
part #
description
quantity

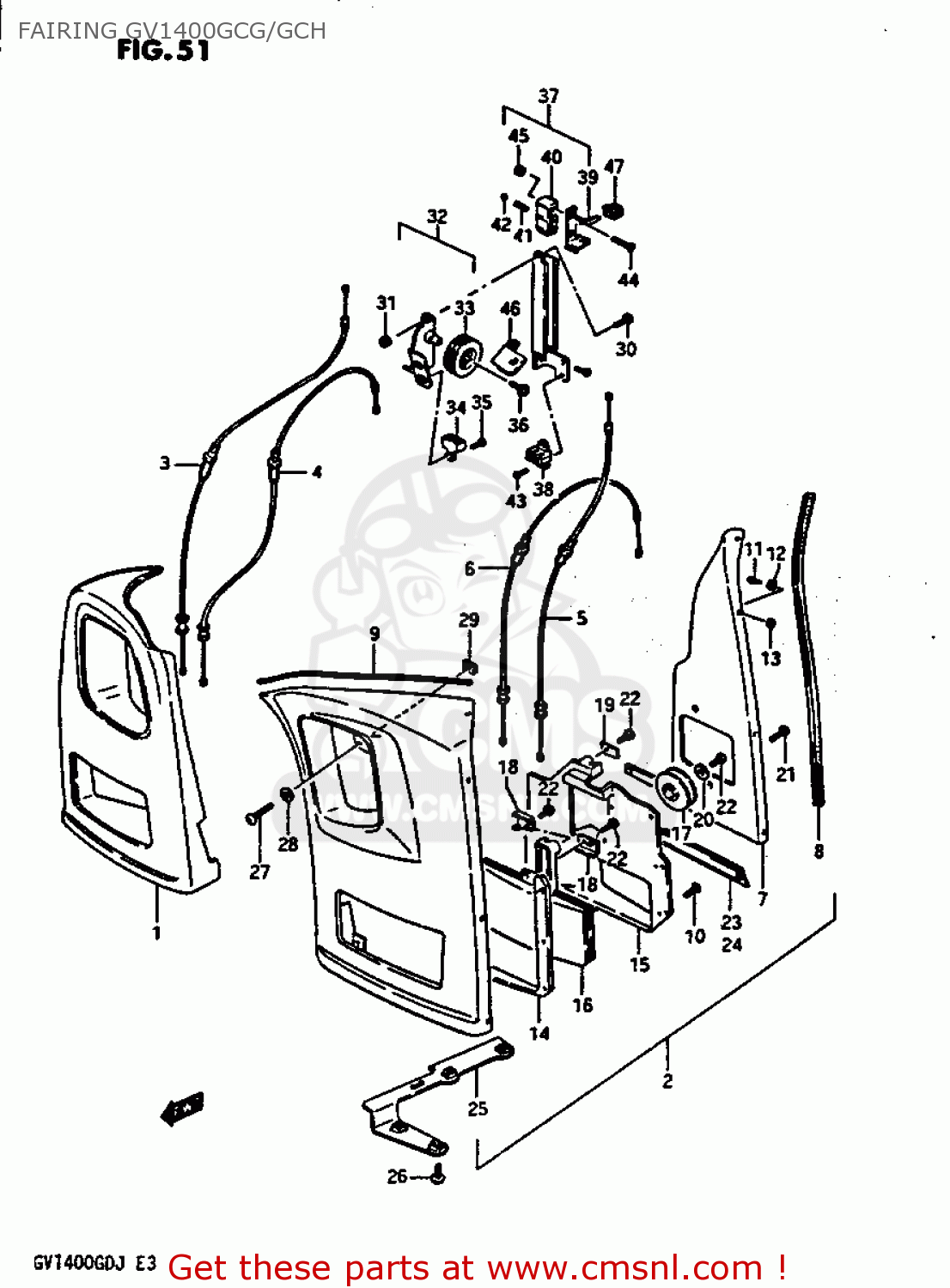

1-1
FAIRING ASSEMBLY,EXTENSION
1-2
FAIRING ASSEMBLY,EXTENSION
1-3
FAIRING ASSEMBLY,EXTENSION
1-4
FAIRING ASSEMBLY,EXTENSION
2-1
FAIRING ASSEMBLY,EXTENSION
2-2
FAIRING ASSEMBLY,EXTENSION
2-3
FAIRING ASSEMBLY,EXTENSION
2-4
FAIRING ASSEMBLY,EXTENSION
7-1
FAIRING EXTENTION, RH (BROWN)
7-2
FAIRING EXTENTION, RH (BLUE)
7-3
FAIRING, EXTENSION REAR LH
7-4
FAIRING EXTENTION ,LH (BLUE)
7-5
EXTENTION, FAIRING REAR RH (MAROON)
7-6
EXTENTION, FAIRING REAR LH (BLACK)
7-7
EXTENTION, FAIRING REAR LH (MAROON)
7-8
EXTENTION, FAIRING REAR LH (BLACK)
8
MOLDING NO.1
15-1
GUIDE, VENT LID NO.2 RH
15-2
GUIDE,VENT LID,LEFT NO.2
16-1
LID,VENTILATOR, RH (BROWN)
16-2
LID,VENTILATOR,RH (BLUE)
16-3
LID,VENTILATOR, LH (BROWN)
16-4
LID,VENTILATOR, LH (BLUE)
16-5
LID, VENTILATOR RH (MAROON)
16-6
LID, VENTILATOR RH (BLACK)
16-7
LID, VENTILATOR LH (MAROON)
16-8
LID, VENTILATOR LH (BLACK)
18-1
HOLDER, VENT CABLE RH
18-2
HOLDER, VENT CABLE LH
19
HOLDER, VENT CABLE CUTER
20
WASHER (4X16X1.2)
21
SCREW
22
SCREW
25-1
BRACKET, EXTENTION RH
25-2
BRACKET,FAIRING EXTENSTION
28
WASHER (5.5X14X1.2)
30
BOLT 6X16
31
NUT 6MM
32
GUIDE ASSEMBLY,VENTILATOR
34
GUIDE, VENT OUTER CABLE
35
SCREW, 4X10
37
OPERATION ASSEMBLY,VENTILATOR
38
GUIDE, VENT OUTER CABLE
42
BALL
43
SCREW, 4X10
45
NUT
46
BRACKET COMP,VENT OPERATING
47
KNOB,VENTILATOR OPERATING
