STARTING MOTOR

GV1400GC 1986 (G) (E01)

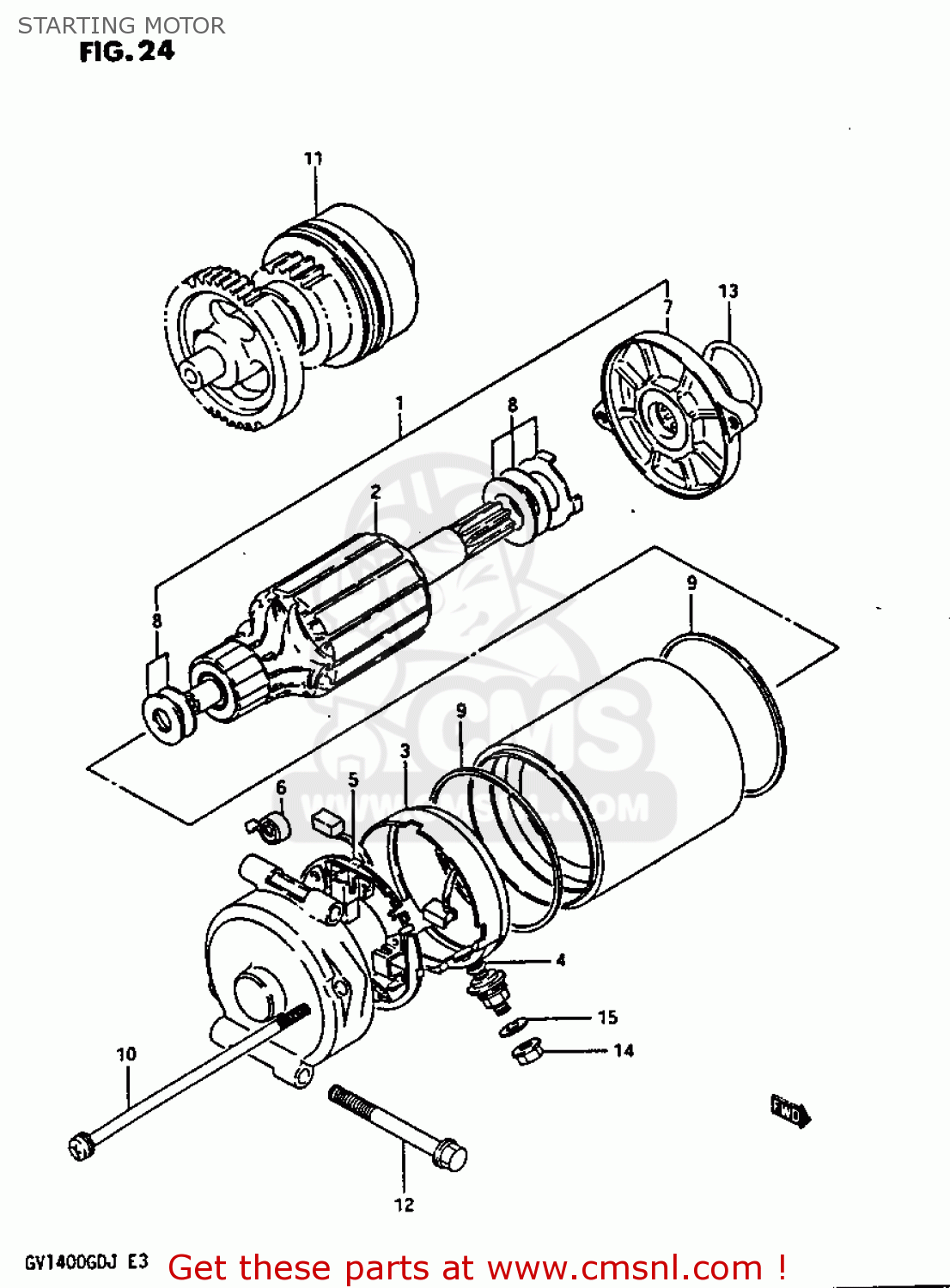

Starting motor diagram GV1400GC 1986 (G) (E01)

STARTING MOTOR GV1400GC 1986 (G) (E01)
STARTING MOTOR GV1400GC 1986 (G) (E01)
STARTING MOTOR GV1400GC 1986 (G) (E01)
prices are in EUR
ref
part #
description
quantity
1
3110005A00
ref: 1
MOTOR ASSEMBLY,STARTING
€ 583.50
2
3131105A00
ref: 2
ARMATURE
€ 112.00
3
3113005A00
ref: 3
BRUSH TERMINAL SET
3113005A00
€ 54.00
4
3114349040
ref: 4
O RING
3114349040
€ 3.00
5
3113205A00
ref: 5
HOLDER,BRUSH
3113205A00
€ 35.50
6
3113549040
ref: 6
SPRING,BRUSH
3113549040
€ 5.00
7
3115005A00
ref: 7
BRACKET SET,STARTING MOTOR
€ 70.00
8
3136005A00
ref: 8
SHIM SET,STARTING MOTOR
€ 6.50
9
3126449040
ref: 9
SEAL,RING
3126449040
€ 7.50
10
3128005A00
ref: 10
BOLT
€ 10.50
11
3137024A02
ref: 11
PINION ASSEMBLY,STARTING MOTOR
€ 286.50
12
0154706605
ref: 12
BOLT (6X60)
€ 3.50
13
0928024003
ref: 13
O RING(D:3,ID:24.5)
0928024003
€ 2.00
14
0831012066
ref: 14
NUT
0831012066
€ 2.00
15
0832121066
ref: 15
WASHER,LOCK
0832121066
€ 2.00
