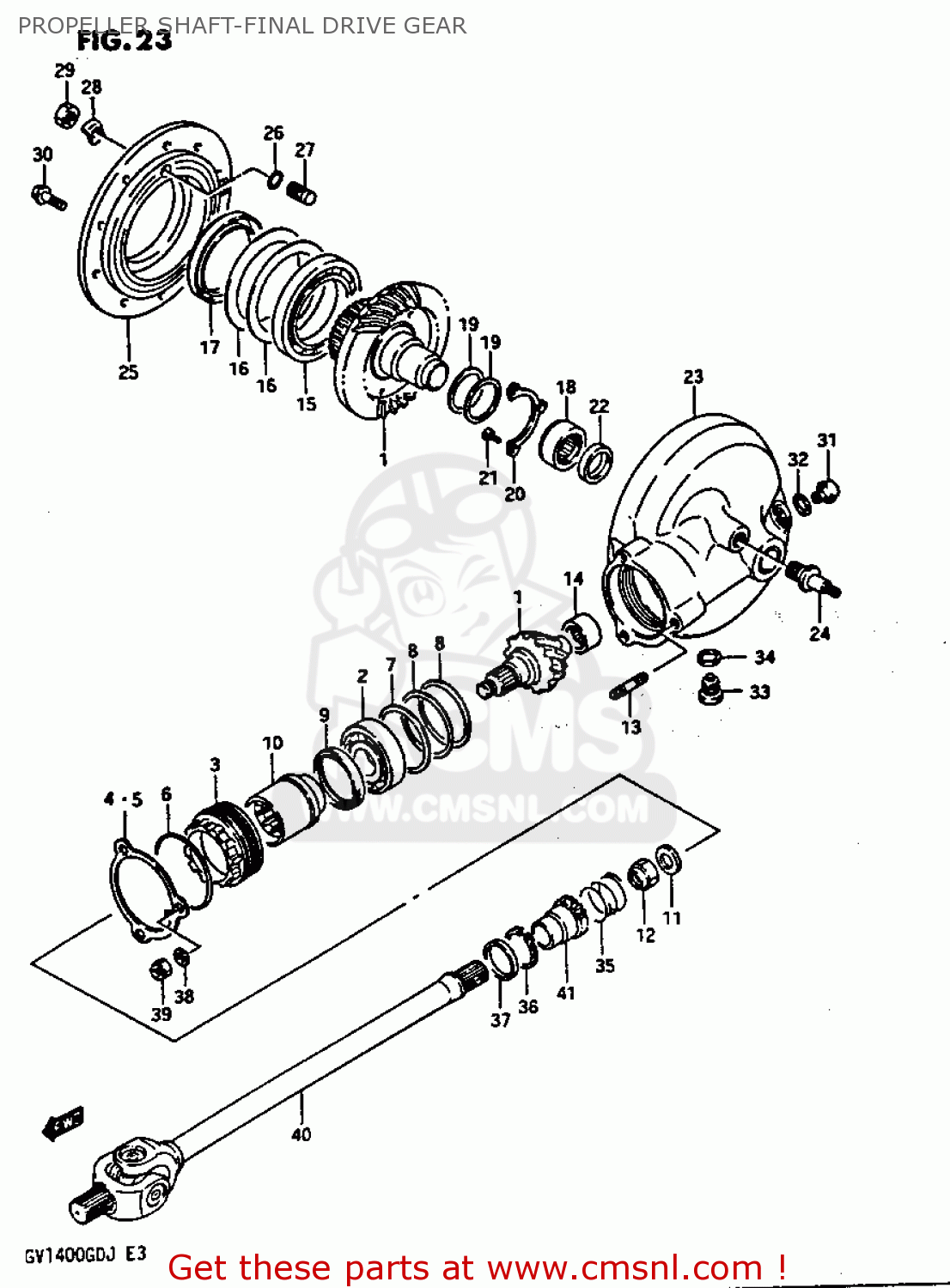

PROPELLER SHAFT-FINAL DRIVE GEAR

ref

part #

description

quantity

1

2730024833
ref: 1

GEAR & CASE SET,FINAL BEVEL

€ 799.00

1

2731124A03
ref: 1
NT:12/32

GEAR,FINAL DRIVE BEVEL

€ 198.00

2

0926228023
ref: 2

BEARING(28X68X18)

€ 71.00

3

2731224A02
ref: 3

STOPPER,FINAL DRIVE BEARING

€ 38.50

4

2731324A00
ref: 4

PLATE,BEARING STOPPER

€ 3.50

5

2731324A10
ref: 5

PLATE,BEARING STOPPER

€ 3.50

6

0928067004
ref: 6

O RING(D:2.1,ID:66.2)

€ 2.50

7

0916054001
ref: 7

WASHER(54X68X1.5)

€ 6.50

8-1

2744524A01030
ref: 8-1

SHIM,FINAL DRIVE GEAR 62

€ 3.50

8-2

2744524A01035
ref: 8-2

SHIM,FINAL DRIVE GEAR 62

€ 3.50

8-3

2744524A01040
ref: 8-3

SHIM,FINAL DRIVE GEAR 62

€ 3.50

8-4

2744524A01050
ref: 8-4

SHIM,FINAL DRIVE GEAR 62

€ 3.50

8-5

2744524A01060
ref: 8-5

SHIM,FINAL DRIVE GEAR 62

€ 3.50

9

0928347002
ref: 9

SEAL,OIL

€ 11.00

10

2717224A00
ref: 10

COUPLING,FINAL DRIVE GEAR

€ 35.50

11

0916016029
ref: 11

WASHER(16X29X4)

€ 6.00

12

0915916003
ref: 12

NUT

€ 3.50

13

0142110258
ref: 13

STUD 10X25

€ 3.00

14

0926320062
ref: 14

BEARING(20X34X18)

€ 26.50

15

0926270001
ref: 15

BEARING(70X110X13)

€ 78.50

16-1

2732745100
ref: 16-1

SHIM,DRIVEN GEAR BEARING

€ 2.50

16-2

2732745102
ref: 16-2

SHIM,DRIVEN GEAR BEARING

€ 2.50

16-3

2732745103
ref: 16-3

SHIM,DRIVEN GEAR BEARING

€ 2.50

16-4

2732745104
ref: 16-4

SHIM,DRIVEN GEAR BEARING

€ 3.00

17

0928970001
ref: 17

SEAL,OIL(70X96X16)

€ 41.50

18

0926335004
ref: 18

BEARING(35X48X23.7)

€ 58.00

19-1

2732645102
ref: 19-1

SHIM,FINAL DRIVEN GEAR

€ 2.50

19-2

2732645103
ref: 19-2

SHIM,FINAL DRIVEN GEAR

€ 3.00

19-3

2732645101
ref: 19-3

SHIM,FINAL DRIVEN GEAR

€ 2.50

19-4

2732645100
ref: 19-4

SHIM,FINAL DRIVEN GEAR

€ 2.50

19-5

2732645104
ref: 19-5

SHIM,FINAL DRIVEN GEAR

€ 2.50

19-6

2732645100140
ref: 19-6

SHIM,FINAL DRIVEN GEAR

€ 3.00

19-7

2732645100145
ref: 19-7

SHIM,FINAL DRIVEN GEAR

€ 3.00

19-8

2732645100150
ref: 19-8

SHIM,FINAL DRIVEN GEAR

€ 3.00

20

2732945100
ref: 20

RETAINER,FINAL DRIVEN GEAR BRG

€ 5.00

21

0211206128
ref: 21

SCREW 6X12

€ 2.00

22

0928330028
ref: 22

SEAL,OIL(30X42X7)

€ 7.50

23

2745024A03
ref: 23

CASE,FINAL GEAR

€ 407.50

24

0910810077
ref: 24

STUD

€ 0.00

25

2746024A01
ref: 25

CASE,FINAL GEAR BEARING

€ 123.50

26

0928010016
ref: 26

O RING(D:1.9,ID:9.8)

€ 3.50

27

2748124A00
ref: 27

BOLT,FINAL DRIVEN GEAR THRUST

€ 8.50

28

0916912003
ref: 28

WASHER (54X68X1.5)

€ 0.00

29

0831022127
ref: 29

NUT 12MM

€ 3.00

30

0151708307
ref: 30

BOLT 8X30

€ 3.50

31

0924714026
ref: 31

PLUG(14X12)

€ 3.50

32

0916814004
ref: 32

GASKET(14X19.2X2) (NAS)

€ 2.50

33

0924714019
ref: 33

PLUG

€ 5.50

34

0916814004
ref: 34

GASKET(14X19.2X2) (NAS)

€ 2.50

35

0944030008
ref: 35

SPRING

€ 2.50

36

0938140003
ref: 36

CIRCLIP

€ 5.00

37

0928330026
ref: 37

SEAL,OIL(30X40.5X5.5)

€ 9.00

38

0832131105
ref: 38

LOCK WASHER

€ 3.00

39

0915910036
ref: 39

NUT

€ 3.00

40-1

2710024A06
ref: 40-1
MODEL G/H

SHAFT,PROPELLER

€ 320.00

40-2

2710024A06
ref: 40-2
MODEL J

SHAFT,PROPELLER

€ 320.00

41

2717145101
ref: 41

COUPLING,PROPELLER SHAFT

€ 38.00
