FRAME

GV1400GC 1986 (G) (E01)

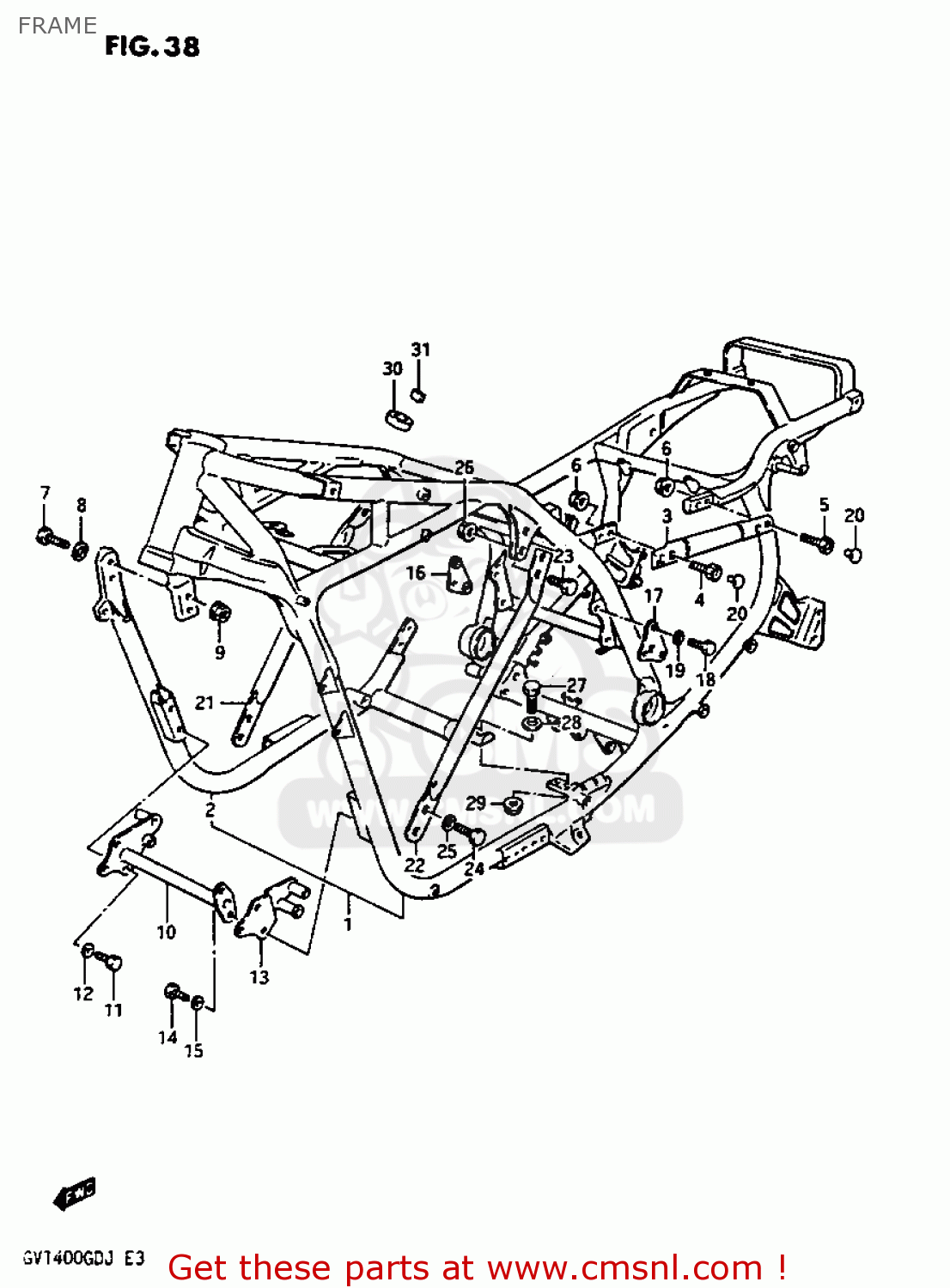

Frame diagram GV1400GC 1986 (G) (E01)

FRAME GV1400GC 1986 (G) (E01)

FRAME GV1400GC 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4110024833019
ref: 1-1
MODEL G

FRAME

€ 1,979.50

1-2

4110024833019
ref: 1-2
MODEL H

FRAME

€ 1,979.50

1-3

4110024833019
ref: 1-3
MODEL J

FRAME

€ 1,979.50

2

4114024A01019
ref: 2

TUBE,FRAME

€ 228.00

3

4164024A00019
ref: 3

TUBE, FRAME UPPER (BLACK)

€ 66.50

4

0711010255
ref: 4

BOLT 10X25

€ 3.50

5

0711010305
ref: 5

BOLT

€ 3.50

6

0831931105
ref: 6

NUT 10MM

€ 3.00

7

0910610033
ref: 7

BOLT 10X38

€ 2.50

8

0916410005
ref: 8

WASHER

€ 6.50

9

0831931105
ref: 9

NUT 10MM

€ 3.00

10

4191024A00019
ref: 10

PLATE COMP,ENGINE MOUNTING

€ 36.00

11

0110708165
ref: 11

BOLT

€ 2.00

12

0832121084
ref: 12

WASHER,LOCK,8.

€ 2.50

13

4192024A00019
ref: 13

PLATE,ENGINE MOUNTING

€ 24.00

14

0110708205
ref: 14

BOLT

€ 2.00

15

0832121084
ref: 15

WASHER,LOCK,8.

€ 2.50

16

4195024A00019
ref: 16

PLATE,ENGINE MOUNTING

€ 0.00

17

4195124A00019
ref: 17

PLATE,ENGINE MOUNTING

€ 0.00

18

0110708205
ref: 18

BOLT

€ 2.00

19

0832121084
ref: 19

WASHER,LOCK,8.

€ 2.50

20

4357534500
ref: 20

CAP

€ 1.50

21-1

4163024A01019
ref: 21-1
MODEL G

ROD,GRIP,LEFT

€ 0.00

21-2

4163024A01019
ref: 21-2
MODEL H/J

ROD,GRIP,LEFT

€ 0.00

22-1

4162024A01019
ref: 22-1
MODEL G

GRIP,FRAME HANDLE,LEFT

€ 0.00

22-2

4162024A01019
ref: 22-2
MODEL H/J

GRIP,FRAME HANDLE,LEFT

€ 0.00

23

0110710256
ref: 23

BOLT 10X25 UPPER

€ 2.00

24

0910410033
ref: 24

BOLT

€ 0.00

25

0832121104
ref: 25

WASHER,LOCK

€ 3.00

26

0831931105
ref: 26

NUT 10MM

€ 3.00

27

0910610019
ref: 27

BOLT(10X33)

€ 4.00

28

0916410005
ref: 28

WASHER

€ 6.50

29

0831931105
ref: 29

NUT 10MM

€ 3.00

30

4716124A00
ref: 30

CUSHION,FRAME COVER

€ 0.00

31

4716224A00
ref: 31

CUSHION,FRAME COVER

€ 2.50
