prices are in EUR
ref
part #
description
quantity

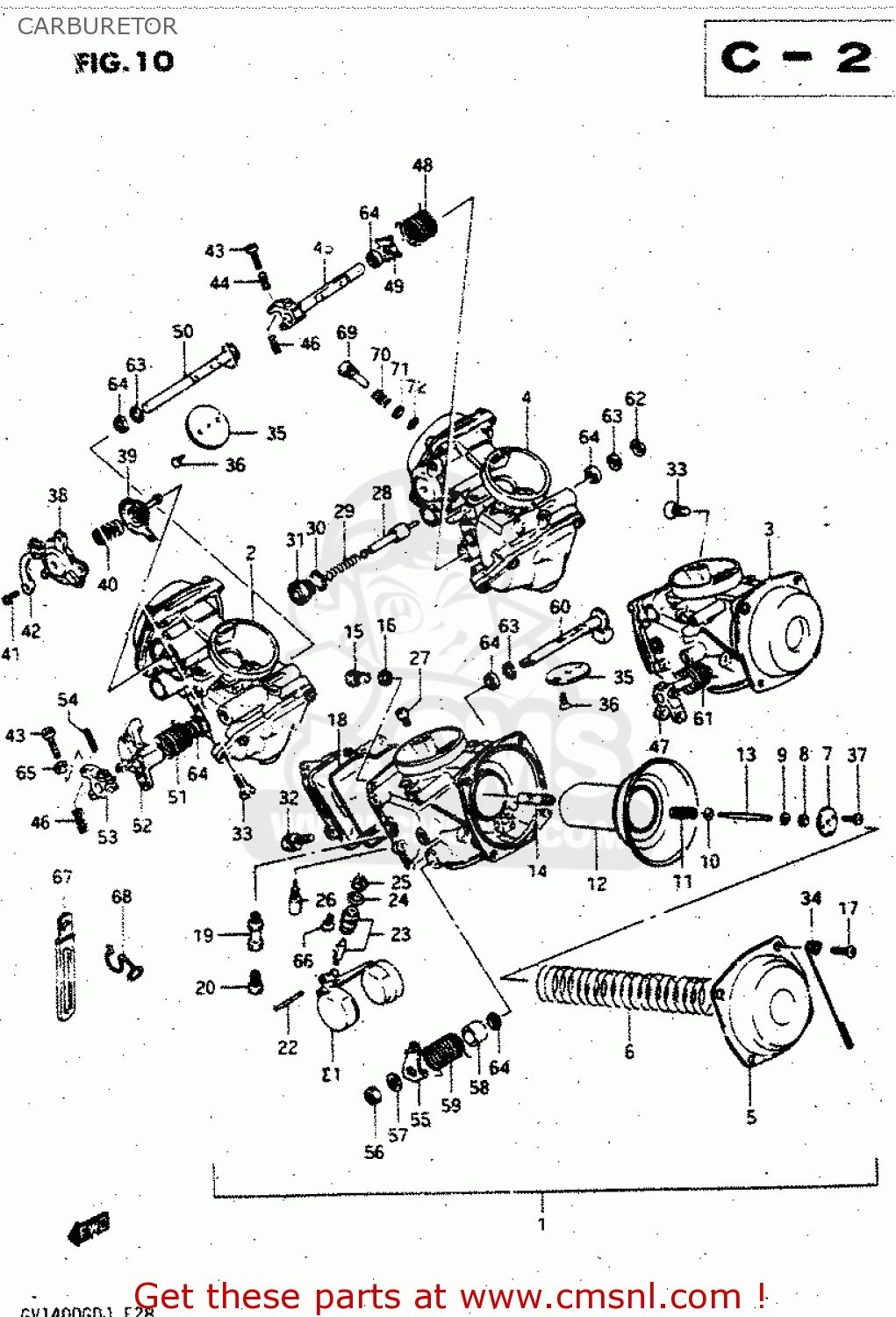

1-1
CARBURETOR ASSY, FRONT LH
1-2
CARBURETOR ASSY, FRONT LH
2-1
CARBURETOR ASSY, FRONT RH
2-2
CARBURETOR ASSY, FRONT RH
3-1
CARBURETOR ASSY, REAR LH
3-2
CARBURETOR ASSY, REAR LH
4-1
CARBURETOR ASSY, REAR RH
4-2
CARBURETOR ASSY, REAR RH
5
COVER,DIAPHRAGM
6
SPRING,DIAPHRAGM
7
PLATE
8
RING
9
CLIP,NEEDLE
10
WASHER
11
SPRING
12
DIAPHRAGM,CARBURETOR
15
SCREW
17
SCREW
18
O RING,FLOAT CHAMBER
19-2
HOLDER,MAIN JET
20
JET,MAIN(105)
21
FLOAT
22
PIN,FLOAT
24
O-RING,NEEDLE VALVE
26
JET,PILOT(25)
27
JET,ENRICH
28
PLUNGER
29
SPRING,STARTER PLUNGER
30
O RING
31
HOLDER,GUIDE
32
SCREW
36
SCREW
39
DIAPHRAGM ASSY
41
SCREW
56
NUT 8MM
57
WASHER
62
E RING
63
GASKET,THROTTLE SHAFT (NAS)
64
SEAL,THROTTLE SHAFT
66
SCREW
69-1
SCREW,PILOT
69-2
SCREW,PILOT AIR
70
SPRING
71
WASHER
72
O RING,PILOT AIR SCREW
