INNER COWLING (MODEL G/H/GV1400GDJ)
GV1400GC 1988 (J) (E01)

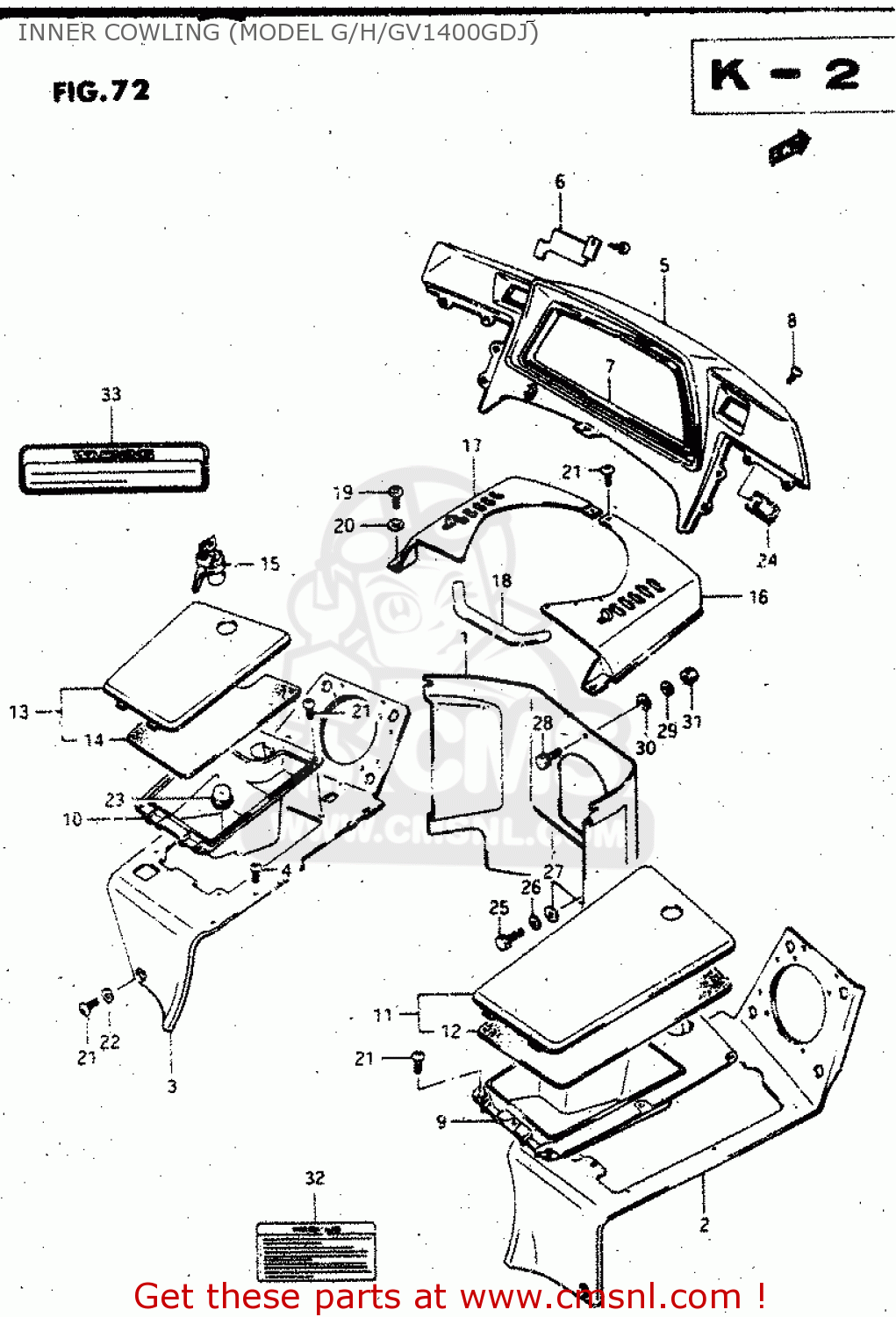

Inner cowling (model g/h/gv1400gdj) diagram GV1400GC 1988 (J) (E01)
INNER COWLING (MODEL G/H/GV1400GDJ) GV1400GC 1988 (J) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
9441924A00
ref: 1-1
MODEL G ~F.NO.104470
COVER,COWLING,INNER
€ 44.00
1-2
9441924A01
ref: 1-2
MODEL G F.NO.104471~
COVER,COWLING,INNER
€ 44.00
2
9442124A01291
ref: 2
PANEL,COWLING,R
€ 90.00
3
9442224A01291
ref: 3
PANEL,COWLING,L
€ 108.00
4
0214205164
ref: 4
SCREW
€ 2.50
5
9442024A02291
ref: 5
COVER ASSY,METER
€ 140.00
6-1
9442624A00
ref: 6-1
MODEL G
COVER,METER COVER HOLE
€ 8.00
6-2
9442724A00
ref: 6-2
MODEL H/J
COVER,METER COVER HOLE
€ 7.00
7
9463824A02
ref: 7
MOLDING,METER COVER
€ 26.00
8
0214205105
ref: 8
SCREW
€ 2.50
9-1
9442324A00
ref: 9-1
MODEL G ~F.NO.104470
BOX, COWL PANEL RH
€ 44.50
9-2
9746024A00
ref: 9-2
MODEL G F.NO.104471~
BOX ASSY,COWLING PANEL R
€ 44.50
10
9442424A01
ref: 10
BOX,COWLING PANEL,LEFT
€ 31.50
11
9441424A01291
ref: 11
LID,COWLING BOX RH
€ 158.00
12
9442824A00
ref: 12
SEAL,LID,RIGHT
€ 8.50
13
9441524A01291
ref: 13
LID,COWLING BOX LH
€ 40.00
14
9442924A00
ref: 14
SEAL,LID,LEFT
€ 8.50
15
9570024820
ref: 15
LOCK SET,TOOL HOLDER
€ 61.50
16
4735024A02291
ref: 16
COVER ASSY,FRAME HEAD,R(BLACK)
€ 53.00
17
4736024A02291
ref: 17
COVER ASSY,FRAME HEAD,L(BLACK)
€ 59.00
18
4734524A01
ref: 18
SEAL,FRAME HEAD
€ 19.00
19-1
0211205163
ref: 19-1
MODEL G/H
SCREW
€ 2.00
19-2
0211205164
ref: 19-2
GV1400GDJ
SCREW
€ 2.00
20
0832221053
ref: 20
MODEL G/H
WASHER,5.5X12X
€ 2.00
21
0214204165
ref: 21
SCREW
€ 2.00
22
0916004017
ref: 22
WASHER (4.3X13X0.80)
€ 1.50
23
9441724A00
ref: 23
CAP,COWLING PANEL BOX
€ 8.50
24
9443724A01
ref: 24
CAP,RADIO IND
€ 15.50
25
0110405123
ref: 25
BOLT
€ 1.50
26
0832121053
ref: 26
LOCK WASHER
€ 2.50
27
0832221053
ref: 27
WASHER,5.5X12X
€ 2.00
28
0110405123
ref: 28
BOLT
€ 1.50
29
0832121053
ref: 29
LOCK WASHER
€ 2.50
30
0832221053
ref: 30
WASHER,5.5X12X
€ 2.00
31
0831011053
ref: 31
NUT
€ 2.00
32-1
6861524A00
ref: 32-1
MODEL G
LABEL (WARNING)
€ 0.00
32-2
6861524A10
ref: 32-2
MODEL G
LABEL, WARNING (FRENCH)
€ 0.00
32-3
6861524A40
ref: 32-3
MODEL H/J
LABEL (WARNING)
€ 0.00
32-4
6861524A50
ref: 32-4
MODEL H/J
LABEL, WARNING (FRENCH)
€ 0.00
33-1
6861824A00
ref: 33-1
LABEL (WARNING COVER CO
€ 0.00
33-2
6861824A10
ref: 33-2
LABEL, WARNING (FRENCH)
€ 0.00
