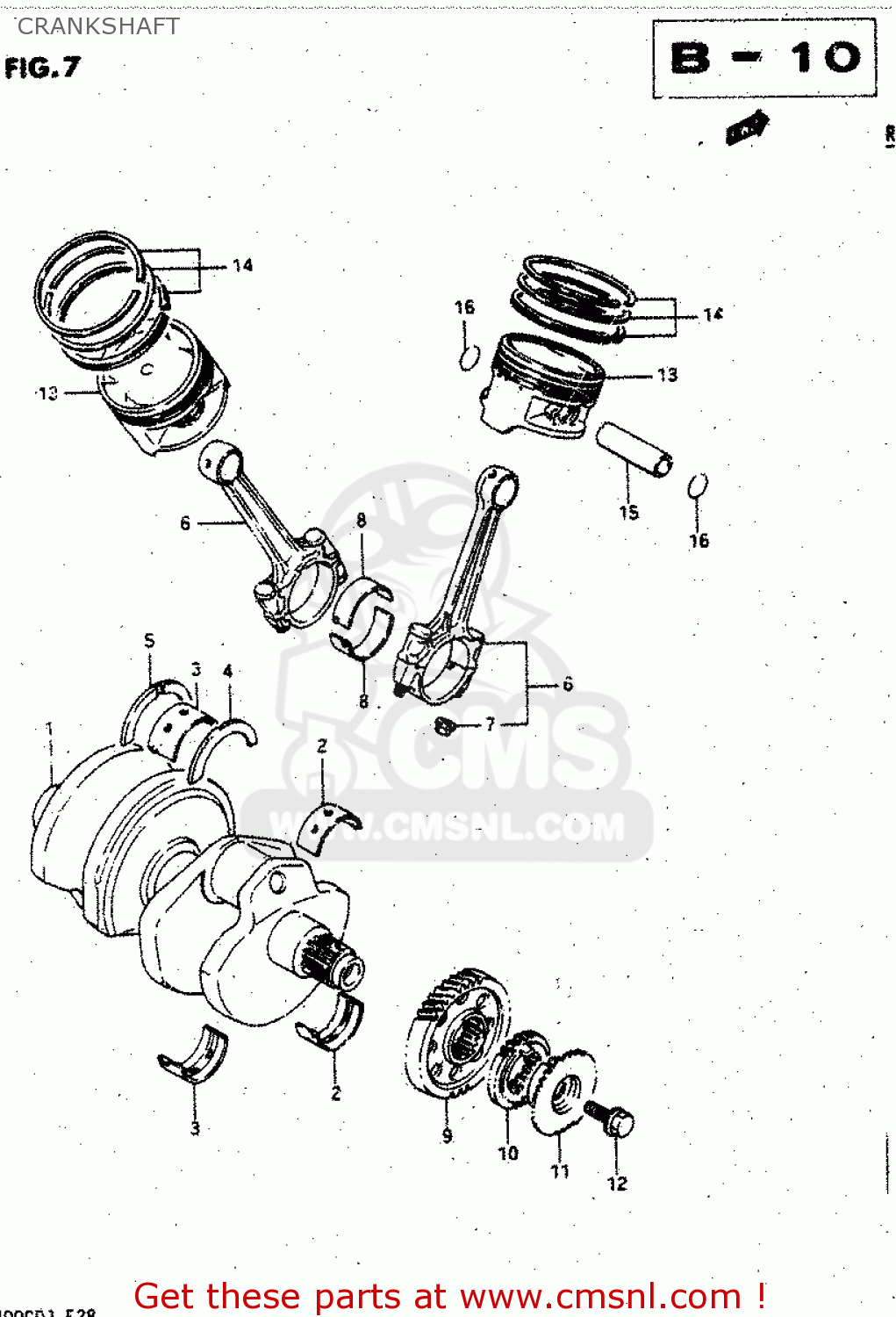

CRANKSHAFT

ref

part #

description

quantity

1

1222024A10
ref: 1

CRANKSHAFT

€ 1,074.50

2-1

1222905A000A0
ref: 2-1

METAL CRANKSHAFT

€ 7.00

2-2

1222905A000B0
ref: 2-2

METAL CRANKSHAFT

€ 9.00

2-3

1222905A000C0
ref: 2-3

METAL CRANKSHAFT

€ 7.50

2-4

1222905A000D0
ref: 2-4

METAL CRANKSHAFT

€ 7.00

3-1

1222905A100A0
ref: 3-1

METAL CRANKSHAFT (GREEN)

€ 9.00

3-2

1222905A100B0
ref: 3-2

METAL CRANKSHAFT (BLACK)

€ 6.50

3-3

1222905A100C0
ref: 3-3

METAL CRANKSHAFT (BROWN)

€ 9.00

3-4

1222905A100D0
ref: 3-4

METAL CRANKSHAFT

€ 7.00

4

1222805A000D0
ref: 4

PLATE,CRANK THRUST

€ 6.50

5-1

1222805A000A0
ref: 5-1

PLATE,CRANK THRUST

€ 6.50

5-2

1222805A000B0
ref: 5-2

PLATE,CRANK THRUST

€ 6.50

5-3

1222805A000C0
ref: 5-3

PLATE,CRANK THRUST

€ 6.50

5-4

1222805A000D0
ref: 5-4

PLATE,CRANK THRUST

€ 6.50

5-5

1222805A000E0
ref: 5-5

PLATE,CRANK THRUST

€ 6.50

5-6

1222805A000F0
ref: 5-6

PLATE,CRANK THRUST

€ 6.50

6

1216024A02
ref: 6

CONNECTING ROD ASSEMBLY

€ 99.50

7

0915909001
ref: 7

NUT

€ 4.50

8-1

1216424A000A0
ref: 8-1

BEARING,CRANK PIN

€ 11.00

8-2

1216424A000B0
ref: 8-2

BEARING,CRANK PIN

€ 13.00

8-3

1216424A000C0
ref: 8-3

BEARING,CRANK PIN

€ 7.00

8-4

1216424A000D0
ref: 8-4

BEARING,CRANK PIN

€ 7.00

9

2111105A02
ref: 9

GEAR,PRIMARY DRIVE

€ 80.50

10

1274405A00
ref: 10

SPROCKET,CHAIN DRIVE I

€ 48.50

11

1753124A00
ref: 11

SPROCKET,WATER PUMP DRIVE

€ 48.50

12

0910310112
ref: 12

BOLT(10X24)

€ 4.00

13-1

1211124A05
ref: 13-1

PISTON (81.00MM)

€ 68.50

13-2

1211124A05050
ref: 13-2
OPT

PISTON

€ 95.50

13-3

1211124A05100
ref: 13-3
OPT

PISTON

€ 86.50

14-1

1214024A00
ref: 14-1

RING SET,PISTON

€ 44.50

14-2

1214024A00050
ref: 14-2
OPT

RING SET,PISTON (OS:0.5)

€ 39.50

14-3

1214024A00100
ref: 14-3
OPT

RING SET,PISTON (OS:1.0)

€ 39.50

15

1215124A00
ref: 15

PIN,PISTON

€ 18.50

16

0938120004
ref: 16

CIRCLIP,PISTON PIN

€ 2.00

all assemblies
