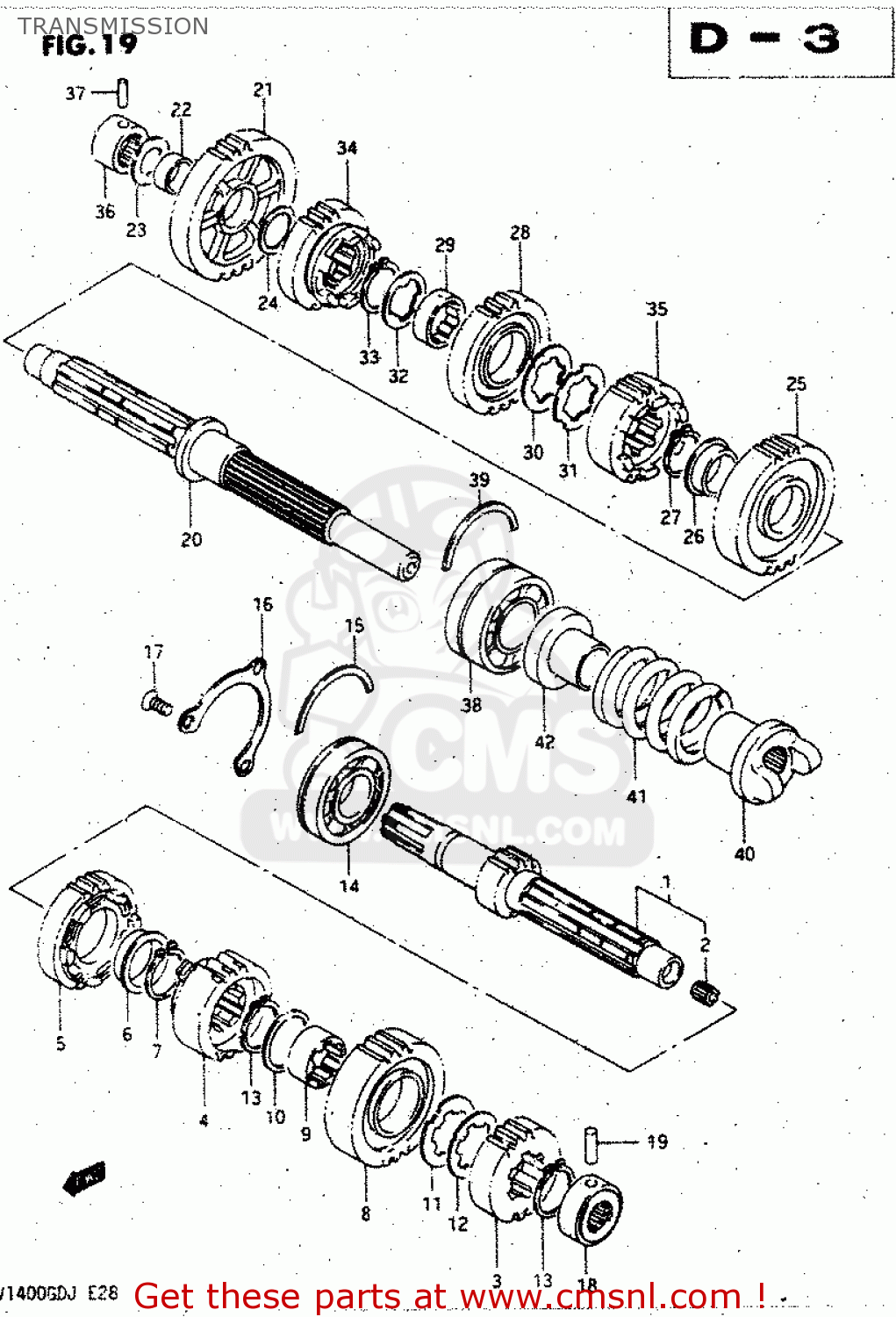

TRANSMISSION

ref

part #

description

quantity

1

2410024840
ref: 1

SHAFT,COUNTER

€ 164.50

2

2412538201
ref: 2

BUSH

€ 3.50

3

2422124A02
ref: 3

GEAR,SECOND DRIVE

€ 96.50

4

2423124A05
ref: 4

GEAR,THIRD DRIVE

€ 100.50

5

2424124A05
ref: 5

GEAR,FOURTH DRIVE

€ 132.50

6

0930128001
ref: 6

BUSH(28X32X2)

€ 19.50

7

0938028008
ref: 7

CIRCLIP

€ 5.00

8

2425124A05
ref: 8

GEAR,FIFTH DRIVE

€ 122.50

9

2433224A00
ref: 9

BUSH

€ 18.00

10

0916728001
ref: 10

WASHER,LOCK

€ 3.00

11

0916728002
ref: 11

WASHER,LOCK

€ 3.00

12

0916928002
ref: 12

WASHER,LOCK

€ 6.00

13

0833111289
ref: 13

CIRCLIP

€ 2.50

14

0926225051
ref: 14

BEARING(25X62X17)

€ 59.50

15

0939062006
ref: 15

C-RING

€ 5.00

16

2474105A00
ref: 16

PLATE,COUNTERSHAFT BEARING

€ 6.00

17

0212206167
ref: 17

SCREW

€ 2.00

18

0926320054
ref: 18

ROLLER BEARING (20X36X1

€ 36.50

19

0422107209
ref: 19

PIN

€ 1.50

20

2413124A04
ref: 20

SHAFT,DRIVE

€ 156.50

21

2431124A03
ref: 21

GEAR,FIRST DRIVEN

€ 88.00

22

0930022005
ref: 22

BUSHING

€ 19.50

23

0821120343
ref: 23

WASHER

€ 2.50

24

0821122321
ref: 24

WASHER

€ 3.00

25

2432124A01
ref: 25

GEAR,SECOND DRIVEN

€ 96.50

26

0930128001
ref: 26

BUSH(28X32X2)

€ 19.50

27

0833111289
ref: 27

CIRCLIP

€ 2.50

28

2433124A02
ref: 28

GEAR,THIRD DRIVEN

€ 111.50

29

2433249000
ref: 29

BUSH,3RD DRIVEN GEAR

€ 13.50

30

0916928001
ref: 30

WASHER

€ 3.00

31

0916728002
ref: 31

WASHER,LOCK

€ 3.00

32

0916728001
ref: 32

WASHER,LOCK

€ 3.00

33

0833111289
ref: 33

CIRCLIP

€ 2.50

34

2434124A02
ref: 34

GEAR,FOURTH DRIVEN

€ 99.50

35

2435124A04
ref: 35

GEAR,FIFTH DRIVEN

€ 93.50

36

0926320040
ref: 36

BEARING(20X34X20)

€ 42.50

37

0422107209
ref: 37

PIN

€ 1.50

38

0926730008
ref: 38

BALL BEARING 30X62X28

€ 110.50

39

0939062006
ref: 39

C-RING

€ 5.00

40

2492224A03
ref: 40

DOG,INPUT CAM

€ 37.50

41

0944047004
ref: 41

SPRING

€ 49.50

42

2492324A01
ref: 42

STOPPER,CAM SPRING

€ 45.50
