HEADLAMP

GV1400GC 1988 (J) (E01)

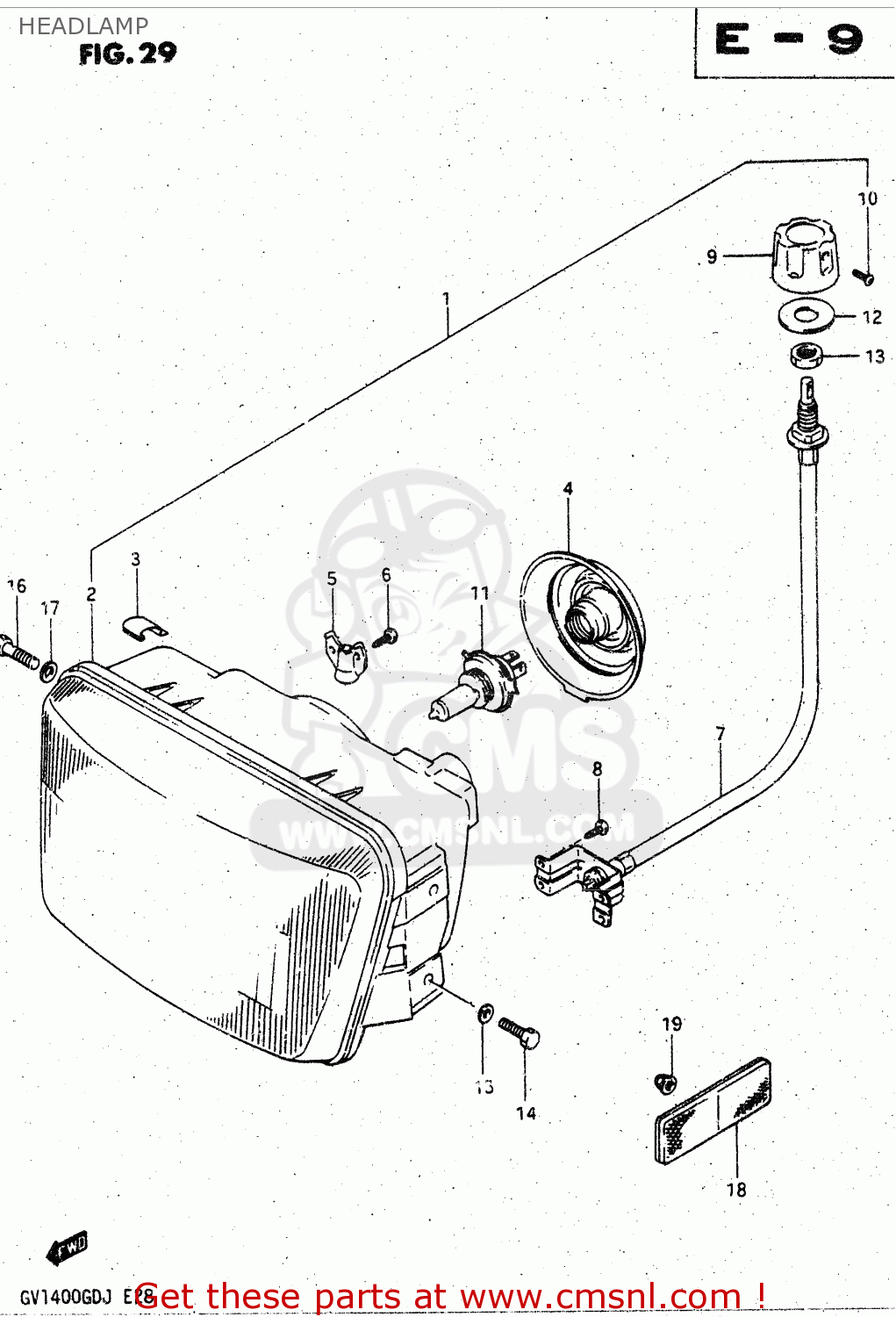

Headlamp diagram GV1400GC 1988 (J) (E01)

HEADLAMP GV1400GC 1988 (J) (E01)

HEADLAMP GV1400GC 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

1

3510024A30599
ref: 1

HEADLAMP ASSY

€ 0.00

2

3512124A30
ref: 2

LAMP UNIT

€ 290.00

3

3512824A30
ref: 3

PLATE,HOOK

€ 0.00

4

3517324A30
ref: 4

COVER,SOCKET

€ 0.00

5

3515624A30
ref: 5

HOLDER

€ 0.00

6

0351104126
ref: 6

SCREW

€ 1.50

7

3515824A30
ref: 7

CABLE,ADJUSTING

€ 41.00

8

0351104126
ref: 8

SCREW

€ 1.50

9

3516124A30
ref: 9

KNOB,ADJUSTING

€ 7.50

10

0211203128
ref: 10

SCREW 3X12

€ 2.50

11

0947112060
ref: 11

BULB(12V60/55W,H4)

€ 8.00

12

0916012001
ref: 12

WASHER(12.5X32X2.3)

€ 2.50

13

0831021125
ref: 13

NUT

€ 2.50

14

0110706166
ref: 14

BOLT

€ 2.00

15

0832121066
ref: 15

WASHER,LOCK

€ 2.00

16

0110706356
ref: 16

BOLT ,6X35

€ 2.50

17

0832221066
ref: 17

WASHER, LOWER

€ 2.00

18

3595024A00
ref: 18

REFLEX REFLECTOR ASSY,FR SIDE

€ 13.00

19

0831321055
ref: 19

NUT 5MM

€ 1.50
