REAR BRAKE

GV1400GC 1988 (J) (E01)

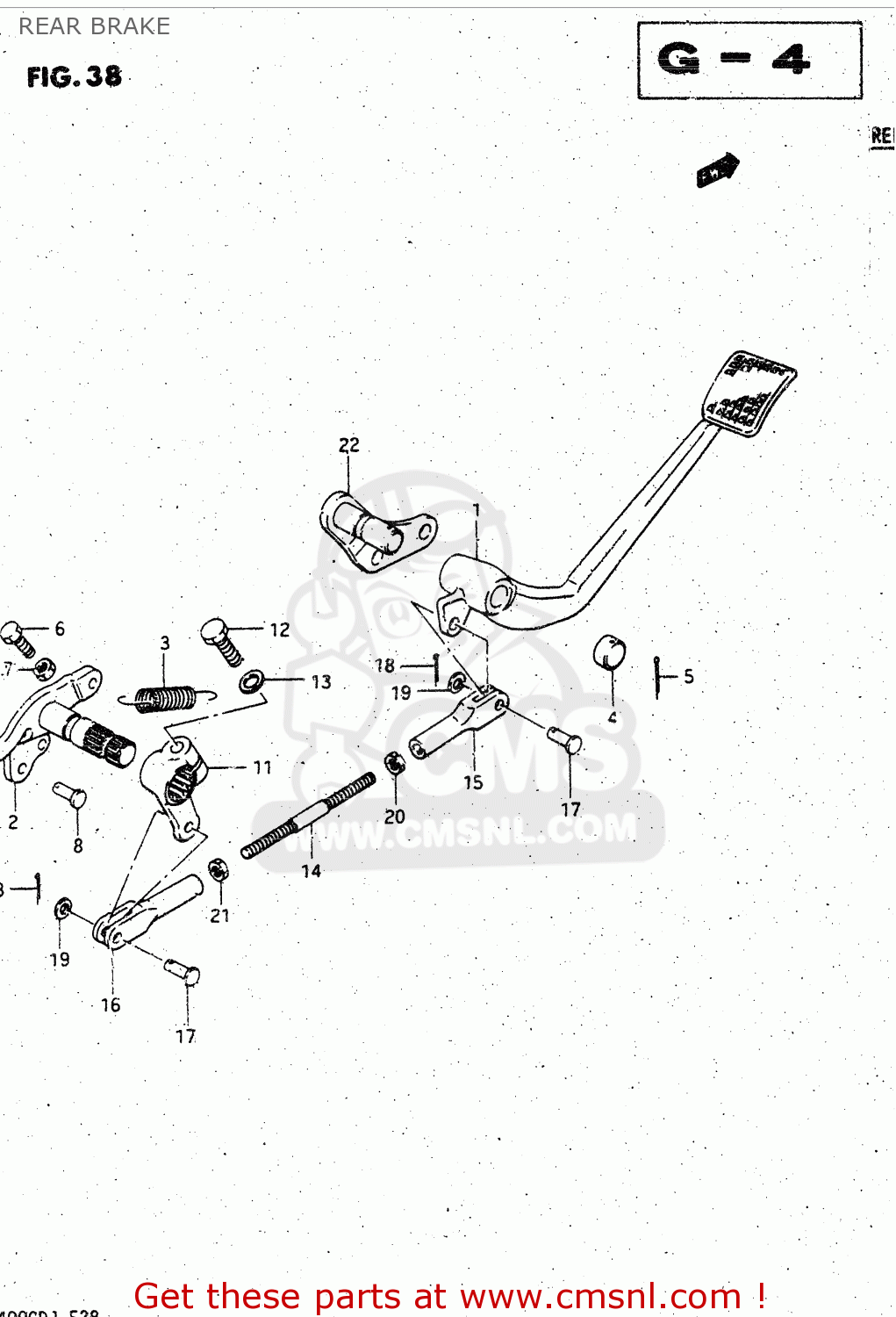

Rear brake diagram GV1400GC 1988 (J) (E01)

REAR BRAKE GV1400GC 1988 (J) (E01)

REAR BRAKE GV1400GC 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

1

4311024A00
ref: 1

PEDAL COMP,BRAKE

€ 63.00

2

4312024A01
ref: 2

ARM,REAR MASTER CYLINDER

€ 22.50

3

0944314046
ref: 3

SPRING

€ 5.00

4

4313507A01
ref: 4

CAP,BRAKE PEDAL

€ 7.00

5

0411130308
ref: 5

COTTER PIN

€ 1.50

6

0910006009
ref: 6

BOLT(6X23)

€ 1.50

7

0831011067
ref: 7

NUT 6MM

€ 2.50

8

0920006037
ref: 8

PIN

€ 5.00

9

0832221067
ref: 9

WASHER

€ 2.00

10

0411120158
ref: 10

PIN

€ 1.50

11-1

4326124A01
ref: 11-1
MODEL G

ARM,BRAKE PEDAL LINK

€ 27.00

11-2

4326124A02
ref: 11-2
MODEL H/J

ARM,BRAKE PEDAL LINK

€ 27.00

12-1

0120408257
ref: 12-1
MODEL G/H

BOLT

€ 2.00

12-2

0110708258
ref: 12-2
MODEL J

BOLT

€ 2.50

13

0832121088
ref: 13

LOCK WASHER

€ 2.00

14

4327124A00
ref: 14

LINK,BRAKE PEDAL

€ 7.50

15

4327224A00
ref: 15

JOINT,BRAKE PEDAL,FRONT

€ 22.50

16-1

4327324A00
ref: 16-1
MODEL G

JOINT,BRAKE PEDAL,REAR

€ 24.00

16-2

4327324A01
ref: 16-2
MODEL H/J

JOINT,BRAKE PEDAL,REAR

€ 24.00

17

0920006037
ref: 17

PIN

€ 5.00

18

0411120208
ref: 18

PIN 20X20

€ 1.50

19

0832221067
ref: 19

WASHER

€ 2.00

20

0915908058
ref: 20

NUT

€ 0.00

21

0831022088
ref: 21

NUT 8MM

€ 2.00

22-1

4314024A00
ref: 22-1
MODEL G

BAR,BRAKE PEDAL BOSS

€ 19.00

22-2

4314024A01
ref: 22-2
MODEL H/J

BAR,BRAKE PEDAL BOSS

€ 19.00
