MUFFLER
GV1400GC 1988 (J) (E01)

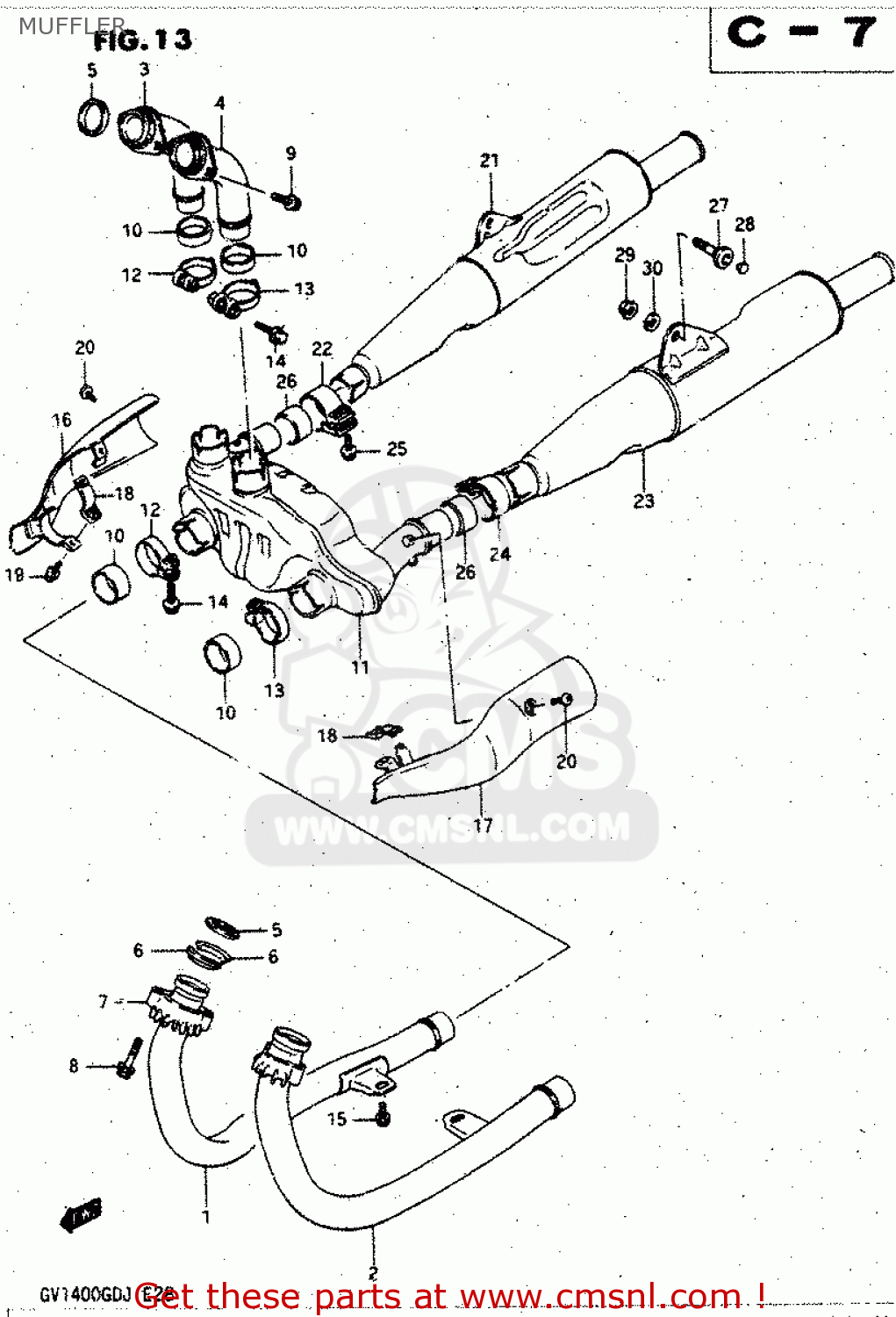

Muffler diagram GV1400GC 1988 (J) (E01)
MUFFLER GV1400GC 1988 (J) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1415024A01
ref: 1
PIPE COMP,EXHAUST,FRONT
€ 139.00
2
1416024A01
ref: 2
PIPE,EXHAUST FR,L(#2)
€ 153.00
3
1417024A00
ref: 3
PIPE,EXHAUST RR,R(#3)
€ 112.00
4
1418024A01
ref: 4
PIPE,EXHAUST RR,L(#1)
€ 112.00
5
1418112010
ref: 5
GASKET,EXHAUST PIPE (NAS)
€ 8.50
6
1415524A00
ref: 6
SPACER,EXHAUST PIPE
€ 14.00
7
1418249011
ref: 7
CLAMP(H:21)
€ 49.00
8
0712008458
ref: 8
BOLT
€ 3.50
9
0712008308
ref: 9
BOLT, REAR
€ 3.50
10
1477105A11
ref: 10
CONNECTOR,MUFFLER
€ 23.00
11
1421024A03H01
ref: 11
BODY,PRE MUFFLER
€ 416.50
12
1445905A00
ref: 12
CLAMP,MUFFLER CONNECTOR
€ 14.50
13
1446905A00
ref: 13
CLAMP,MUFFLER CONNECTOR LH
€ 16.00
14
0151708405
ref: 14
BOLT 8X40
€ 3.50
15
0151708202
ref: 15
BOLT
€ 2.00
16
1478024A01
ref: 16
COVER,MUFFLER,R
€ 44.50
17
1479024A01
ref: 17
COVER,MUFFLER,L
€ 45.50
18
1478524A00
ref: 18
CLAMP,MUFFLER COVER
€ 36.50
19
0910306070
ref: 19
BOLT
€ 2.00
20
0912506071
ref: 20
SCREW(6X8)
€ 2.50
21
1431024A02H01
ref: 21
MUFFLER,RIGHT
€ 392.00
22
1445924A00
ref: 22
CLAMP,CONNECTOR MUFFLER
€ 14.00
23
1434024A02H01
ref: 23
MUFFLER,LEFT
€ 224.50
24
1446924A00
ref: 24
CLAMP,CONNECTOR MUFFLER,L
€ 14.00
25
0110708358
ref: 25
BOLT
€ 3.50
26
1477124A00
ref: 26
CONNECTOR,MUFFLER
€ 21.50
27
0910610010
ref: 27
BOLT(10X50)
€ 44.00
28
0925008014
ref: 28
CAP(OD:12)
€ 3.50
29
0915910014
ref: 29
NUT
€ 2.00
30
0916010069
ref: 30
WASHER (10X18X3.2)
€ 2.00
