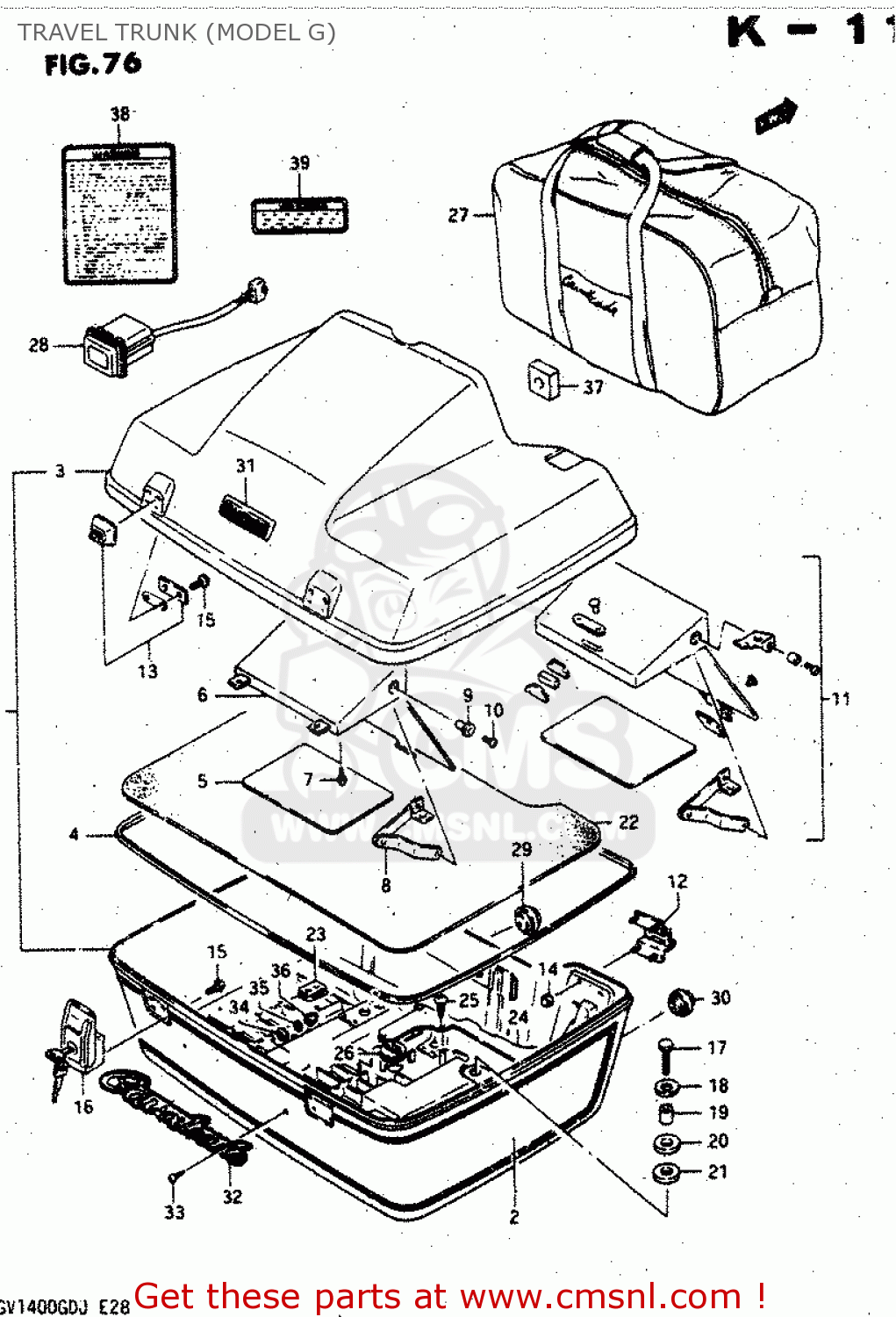

TRAVEL TRUNK (MODEL G)

ref

part #

description

quantity

1-1

9310024A007UM
ref: 1-1
GOLD/BROWN

TRUNK ASSEMBLY,TRAVEL

€ 0.00

1-2

9310024A007UN
ref: 1-2
BROWN/BROWN

TRUNK ASSEMBLY,TRAVEL

€ 1,499.50

1-3

9310024A008RB
ref: 1-3
BROWN/BROWN

TRUNK ASSY, TRAVEL

€ 1,300.00

2-1

6879024A007UP
ref: 2-1
FOR 7UM

TAPE SET,TRAVEL TRUNK

€ 0.00

2-2

6879024A007UR
ref: 2-2
FOR 7UN

TAPE SET,TRAVEL TRUNK

€ 0.00

2-3

6879024A008JB
ref: 2-3
FOR 8RB

TAPE SET, TRAVEL TRUNK

€ 0.00

3-1

9312024A0024G
ref: 3-1
FOR 7UM

LID,TRAVEL TRUNK

€ 527.00

3-2

9312024A0024H
ref: 3-2
FOR 7UN

LID,TRAVEL TRUNK

€ 527.00

3-3

9312024A0027U
ref: 3-3
FOR 8RB

LID,TRAVEL TRUNK

€ 527.00

4

9311524A00
ref: 4

SEAL,TRAVEL TRUNK LID

€ 18.50

5

9312824A00
ref: 5
~F.NO.104470

MIRROR

€ 18.00

6

9312724A00
ref: 6
~F.NO.104470

BASE, MIRROR

€ 110.00

7

0351104125
ref: 7
~F.NO.104470

SCREW

€ 1.50

8

9312924A00
ref: 8
~F.NO.104470

STOPPER,MIRROR OPEN

€ 20.00

9

9312624A00
ref: 9
~F.NO.104470

WASHER

€ 2.50

10

0211204105
ref: 10
~F.NO.104470

SCREW

€ 2.00

11

9314024A00
ref: 11
F.NO.104471~

MIRROR,TRAVEL TRUNK

€ 110.00

12

9313024A00
ref: 12

HINGE,TRAVEL TRUNK

€ 19.50

13

9331624A00
ref: 13

PLATE,TRUNK LID LOCK

€ 15.00

14

0831311045
ref: 14

NUT

€ 0.00

15

0214205085
ref: 15

SCREW

€ 2.00

16

9331024A00KEY
ref: 16

LOCK ASSY, SIDE BAG

€ 96.50

17

0110706257
ref: 17

BOLT

€ 2.00

18

0916006030
ref: 18

WASHER (6.5X29X1.6)

€ 2.50

19

0918006055
ref: 19

SPACER(6.3X9.3X16.5)

€ 4.00

20

0932009023
ref: 20

CUSHION

€ 1.50

21

0932009023
ref: 21

CUSHION

€ 1.50

22

9541524A00
ref: 22

SEAT,TRAVEL TRUNK BODY

€ 20.00

23

0930920001
ref: 23

GROMMET

€ 0.00

24

9311624A00
ref: 24

COVER, AIR HOSE

€ 9.50

25

0354104105
ref: 25

SCREW

€ 1.50

26

0930924001
ref: 26

GROMMET

€ 0.00

27

9341024A00
ref: 27

LUGGAGE BAG,TRAVEL TRUNK

€ 115.00

28

6268024A00
ref: 28
OPT

SWITCH ASSEMBLY,AIR AUXILIARY

€ 37.50

29

4542524A00
ref: 29

GROMMET

€ 0.00

30

4542624A00
ref: 30

GROMMET

€ 0.00

31

6828524A00
ref: 31

EMBLEM,TRAVEL TRUNK,UPPER

€ 21.00

32

6828624A00
ref: 32

EMBLEM,TRAVEL TRUNK,LOWER

€ 45.50

33

0213203165
ref: 33

SCREW

€ 1.50

34

0832221035
ref: 34

WASHER

€ 1.50

35

0916203002
ref: 35

WASHER

€ 1.50

36

0831311035
ref: 36

NUT

€ 0.00

37

4542924A00
ref: 37

SEAL

€ 0.00

38-1

6861324A02
ref: 38-1

LABEL (WARNING)

€ 0.00

38-2

6861324A11
ref: 38-2

LABEL, WARNING (FRENCH)

€ 0.00

39-1

6861924A00
ref: 39-1

LABEL, WARNING

€ 0.00

39-2

6861924A10
ref: 39-2

LABEL, WARNING (FRENCH)

€ 0.00
