TAIL MARKER LAMP/HARNESS SET (OPTIONAL)

GV1400GC 1988 (J) (E01)

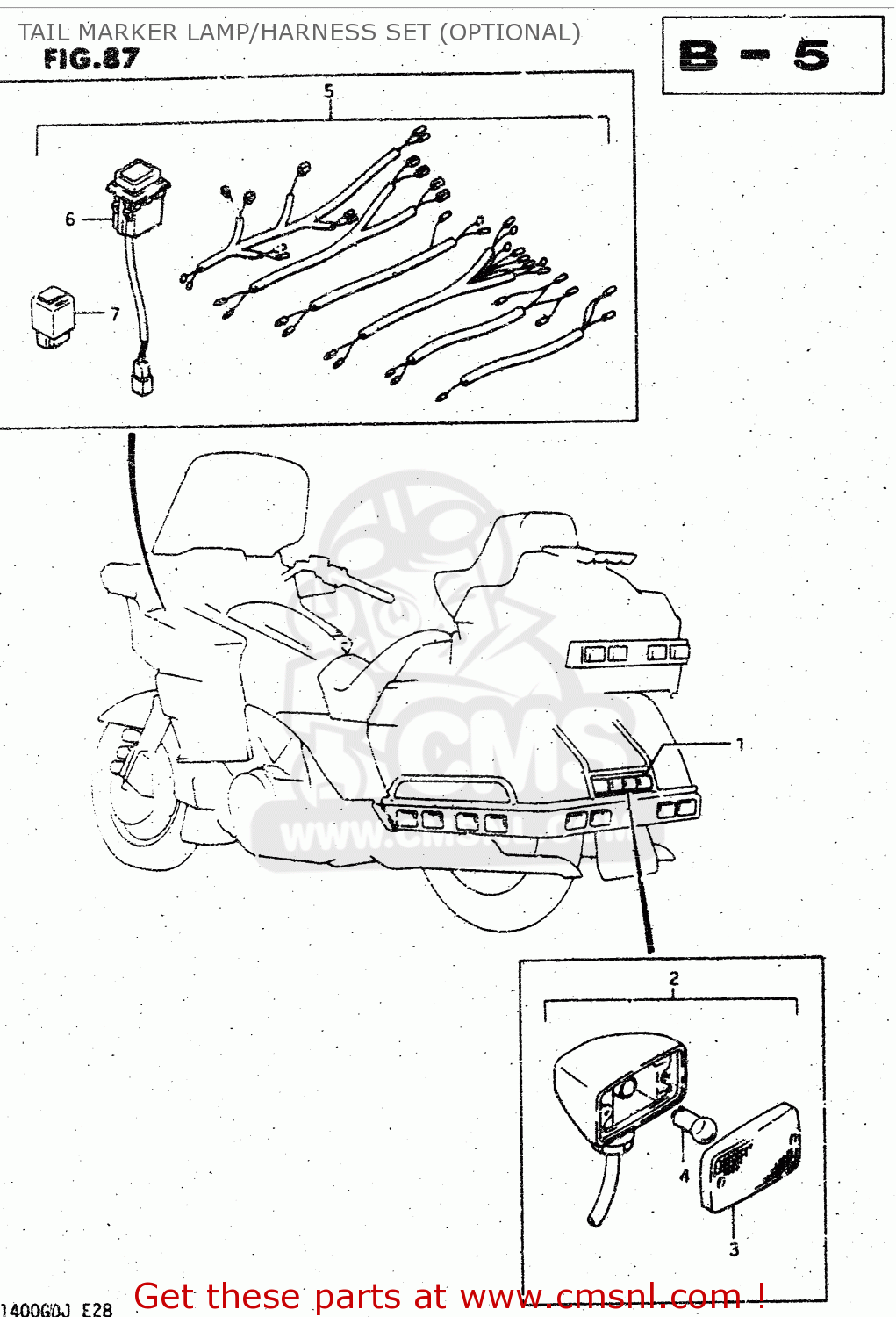

Tail marker lamp/harness set (optional) diagram GV1400GC 1988 (J) (E01)

TAIL MARKER LAMP/HARNESS SET (OPTIONAL) GV1400GC 1988 (J) (E01)

TAIL MARKER LAMP/HARNESS SET (OPTIONAL) GV1400GC 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

1

3650024830
ref: 1

REAR END,MARKER LAMP S

€ 143.50

2

3657024A00
ref: 2

TRAVEL TRUNK,MARKER LAMP

€ 85.00

3

3657224A00
ref: 3

LENS

€ 7.00

4

0947112115
ref: 4

BULB 12V 3W

€ 2.50

5

3650024862
ref: 5

MARKER LAMP SWITCH & WASHER

€ 66.50

6

3725024A01
ref: 6

SWITCH ASSEMBLY,LIGHTING

€ 34.50

7

6256024A01
ref: 7

RELAY ASSY, MARKER LAMP

€ 37.50
