REAR CALIPERS

GV1400GC 1988 (J) (E01)

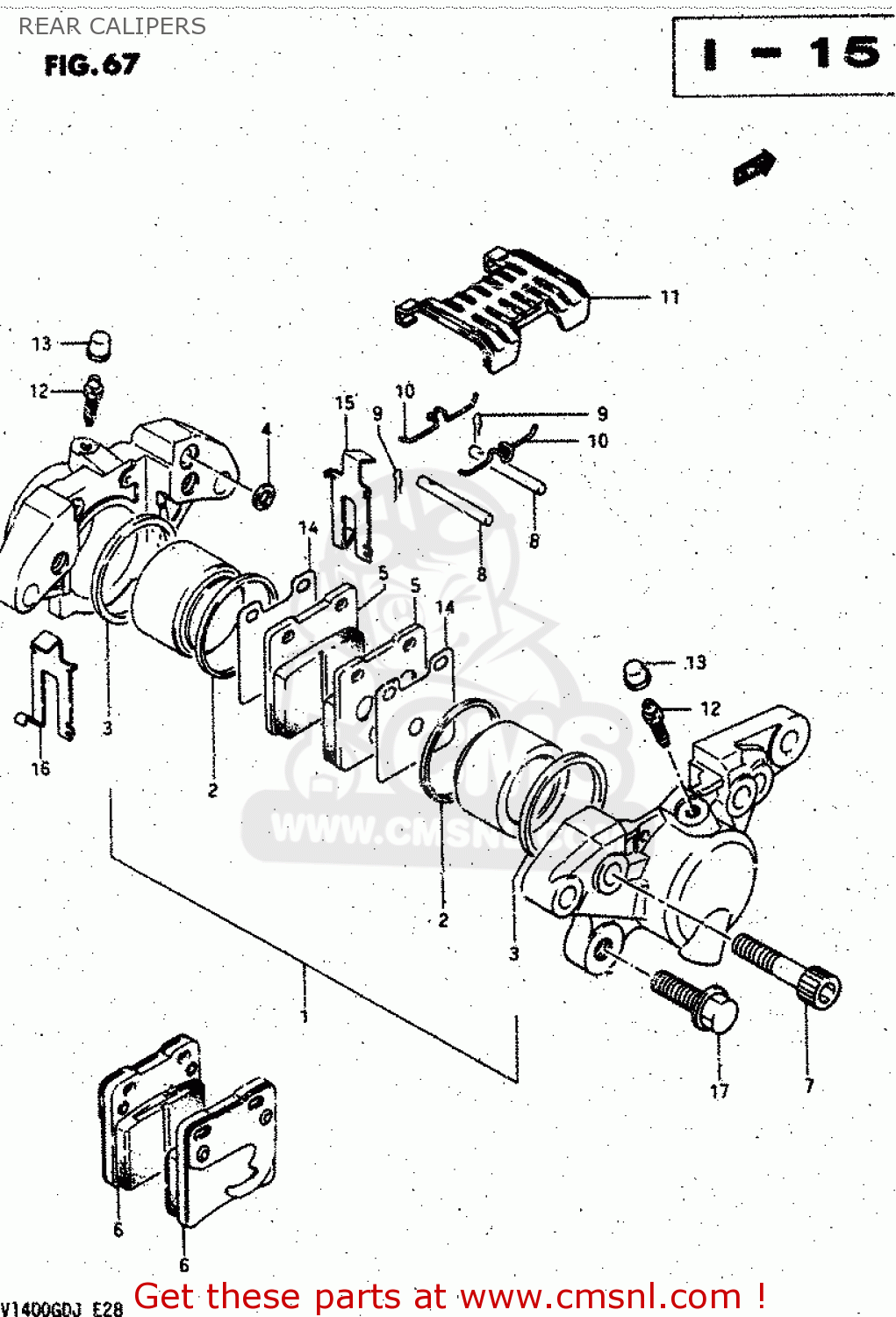

Rear calipers diagram GV1400GC 1988 (J) (E01)

REAR CALIPERS GV1400GC 1988 (J) (E01)

REAR CALIPERS GV1400GC 1988 (J) (E01)

prices are in EUR

ref

part #

description

quantity

0

6910024A01
ref: 0
MODEL G ~F.NO.103764

CALIPER ASSEMBLY,REAR

€ 425.00

0

6910024A04
ref: 0
MODEL G F.NO.103765~

CALIPER ASSEMBLY,REAR

€ 425.00

0

6910024A05
ref: 0
MODEL H/J

CALIPER ASSEMBLY,REAR (ASB)

€ 425.00

1-1

6910024830
ref: 1-1
MODEL G ~F.NO.103764

PISTON SET

€ 0.00

1-2

6910024840
ref: 1-2
MODEL G F.NO.103765~

PISTON SET

€ 122.50

2

5910824A00
ref: 2

SEAL,WIPER

€ 37.50

3

5910724A00
ref: 3

SEAL,PISTON

€ 30.50

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

5913024A00
ref: 5
MODEL G ~F.NO.103764

PAD

€ 41.50

6-1

6913024A03
ref: 6-1
MODEL G F.NO.103765~

PAD,BRAKE

€ 43.00

6-2

6910024860
ref: 6-2
MODEL H/J

PAD SET (NAS)

€ 43.00

7

6914534200
ref: 7

BOLT,CALIPER HOUSING

€ 9.50

8

6914145000
ref: 8

PIN,PAD

€ 6.50

9

6914245000
ref: 9

CLIP,PAD PIN

€ 4.50

10

5914316700
ref: 10

SPRING

€ 7.50

11-1

5915100A01
ref: 11-1
MODEL G ~F.NO.103764

COVER,CALIPER

€ 13.00

11-2

6917124A00
ref: 11-2
MODEL G F.NO.103765~

COVER,DUST

€ 11.50

12

5912118410
ref: 12

BLEEDER

€ 8.00

13

5912218410
ref: 13

CAP,BREATHER

€ 6.00

14

5937133410
ref: 14
MODEL G ~F.NO.103764

SHIM,PAD

€ 15.00

15

6915124A00
ref: 15
MODEL G F.NO.103765~

SHIM,SIDE,FRONT

€ 7.50

16

6916124A00
ref: 16
MODEL G F.NO.103765~

SHIM, SIDE REAR

€ 7.50

17

0151710305
ref: 17

BOLT 10X30

€ 3.00
