BATTERY

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

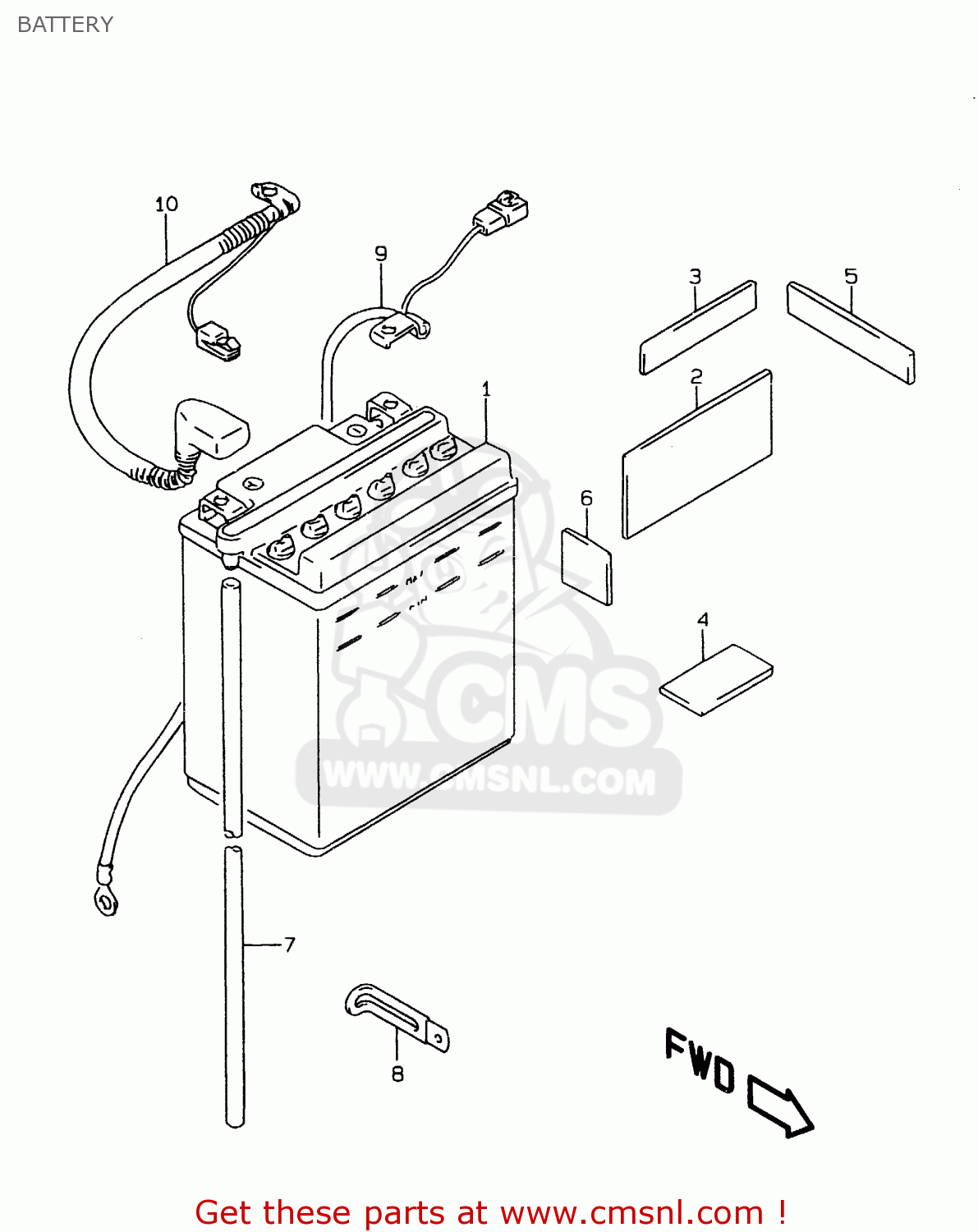

Battery diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

3361005A10
ref: 1

BATTERY(YB14L-B2,12V14.7AH)

€ 46.00

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365207D00
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(80X80X2)

€ 4.50

3365220C00
ref: 6
CUT AS REQUIRED PROO

PROTECTOR(50X50X5)

€ 2.50

3368016A10
ref: 7
L:780->400

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

0940406432
ref: 8
<-09404-06429

CLAMP(L:65)

€ 2.50

3386024B00
ref: 9

WIRE,BATTERY MINUS

€ 12.00

3387024B00
ref: 10

WIRE,BATTERY PLUS LEAD

€ 12.50
