STARTER CLUTCH

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

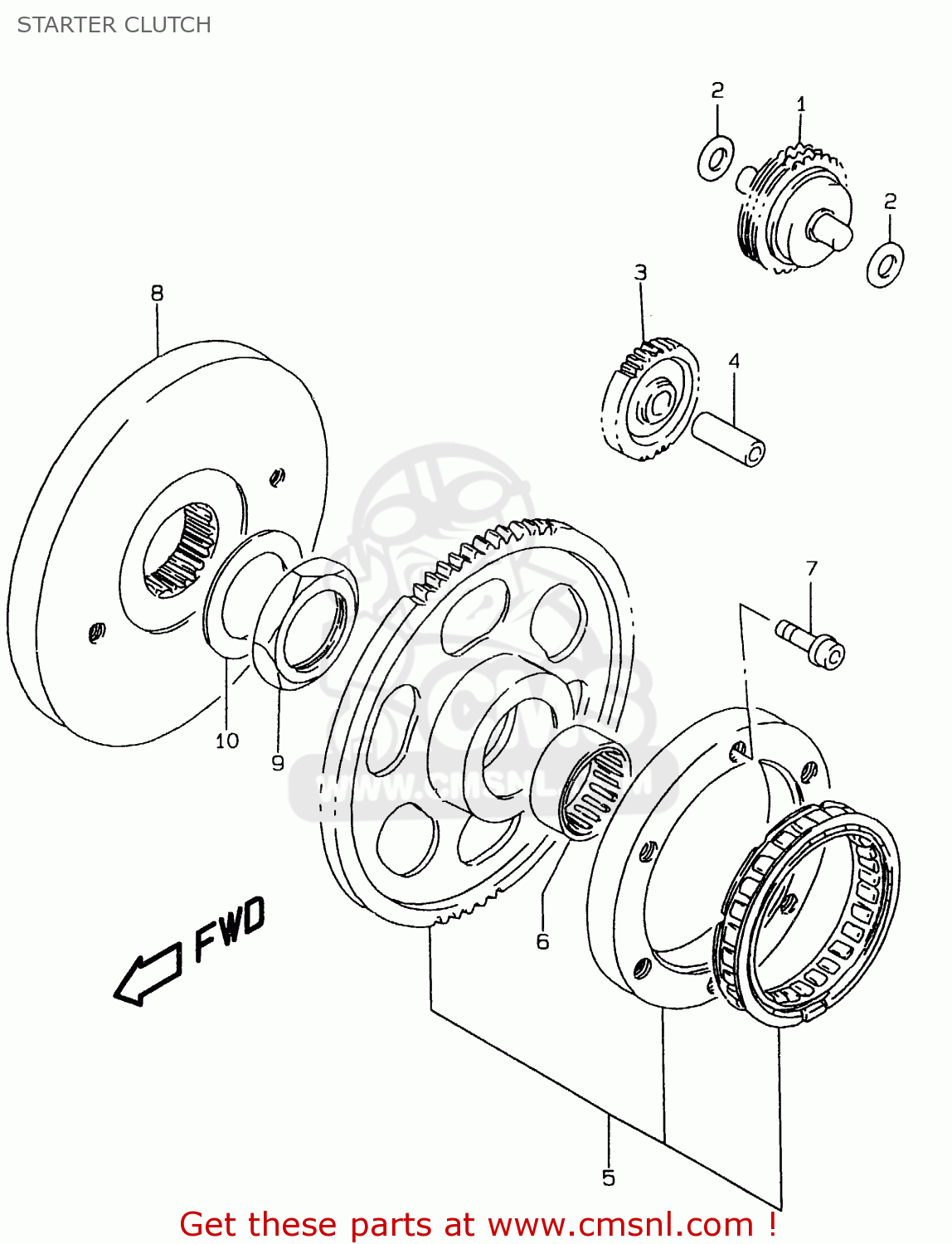

Starter clutch diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

1260024B00
ref: 1
MODEL T/V

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 236.50

1260024B10
ref: 1
MODEL W/X

LIMITER ASSEMBLY,STARTER IDLER GEAR N

€ 196.50

0821110181
ref: 2
MODEL T

WASHER,THRUST

€ 3.00

0918110167
ref: 2
MODEL V/W/X

SHIM(10X18X1)

€ 3.00

1261224B03
ref: 3
NT:34

GEAR,STARTER IDLE NO.2

€ 48.50

0920210011
ref: 4

PIN(10X30)

€ 7.00

1260024831
ref: 5

CLUTCH SET,STARTER

€ 322.50

0926331009
ref: 6

BEARING(31X39X17.8)

€ 27.50

0713008163
ref: 7

BOLT

€ 3.00

1265624B02
ref: 8

FLYWHEEL

€ 110.00

1266424B01
ref: 9

NUT,FLYWHEEL

€ 10.50

0916435002
ref: 10

WASHER

€ 5.50
