HANDLE LEVER

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

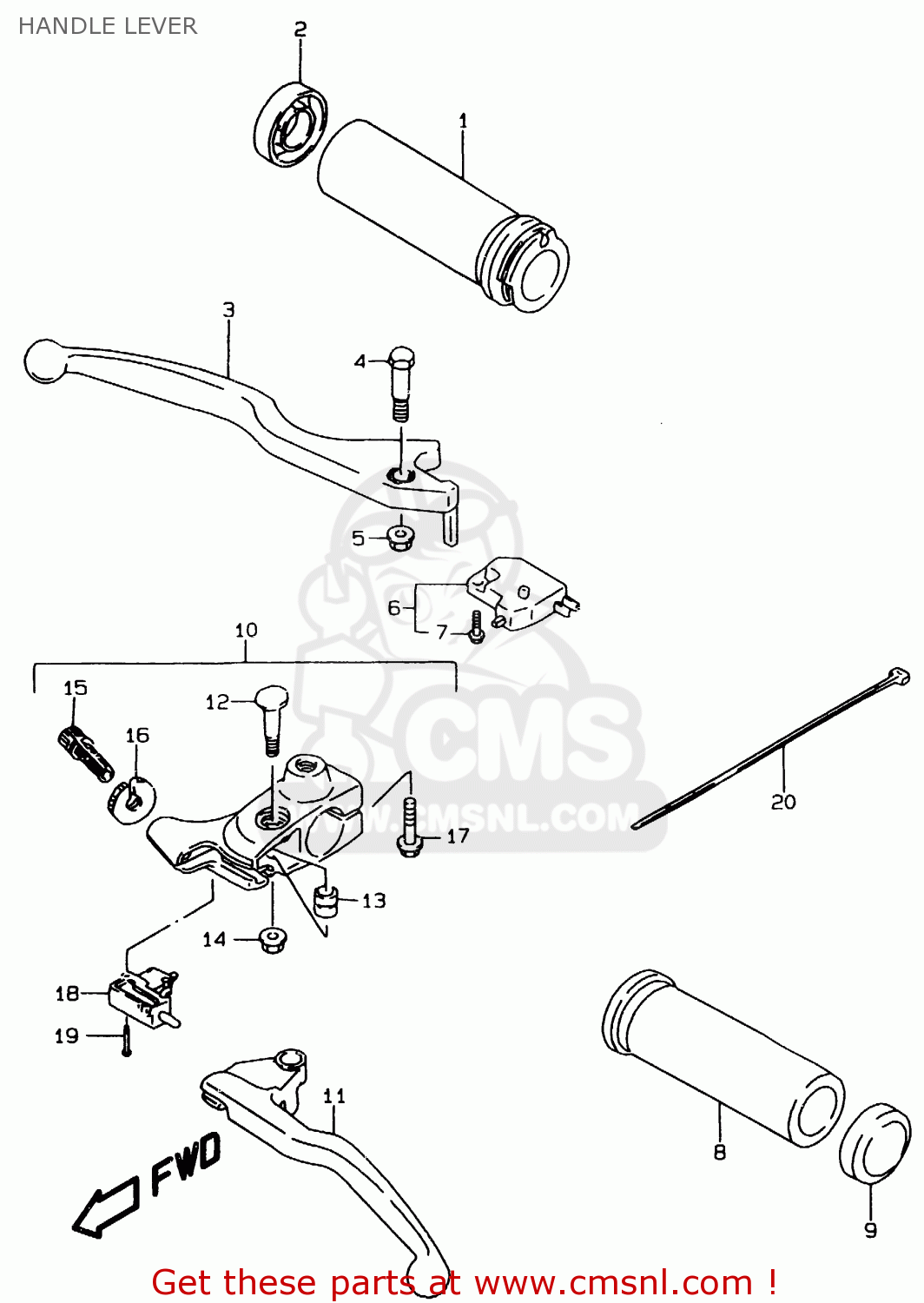

Handle lever diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

HANDLE LEVER LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
HANDLE LEVER LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
HANDLE LEVER LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
5711026D00
ref: 1
GRIP,THROTTLE
5711026D00
€ 45.00
2
5721638A00
ref: 2
CAP,GRIP END
5721638A00
€ 6.50
3
5742024B01
ref: 3
LEVER,BRAKE
5742024B01
€ 53.50
4
5743138A10
ref: 4
BOLT,LEVER SET
5743138A10
€ 14.50
5
0831921068
ref: 5
NUT 6MM
0831921068
€ 2.00
6
5746017C00
ref: 6
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
7
5746517C00
ref: 7
SCREW
5746517C00
€ 1.50
8
5721026D00
ref: 8
GRIP,L
5721026D00
€ 21.50
9
5721638A00
ref: 9
CAP,GRIP END
5721638A00
€ 6.50
10
5750024B01
ref: 10
LEVER ASSY,CLUTCH
5750024B01
€ 87.00
11
5762024B01
ref: 11
LEVER,CLUTCH
5762024B01
€ 75.50
12
5753124B00
ref: 12
BOLT,CLUTCH LEVER
5753124B00
€ 6.50
13
5762324B00
ref: 13
SPACER,CLUTCH LEVER PIVOT
5762324B00
€ 6.50
14
0831921068
ref: 14
NUT 6MM
0831921068
€ 2.00
15
5744145C00
ref: 15
ADJUSTER,WIRE
5744145C00
€ 8.50
16
5744245C00
ref: 16
NUT,LOCK
5744245C00
€ 7.50
17
0713006207
ref: 17
BOLT
0713006207
€ 3.50
18
5756005A00
ref: 18
SWITCH,CLUTCH
5756005A00
€ 11.00
19
0211203205
ref: 19
SCREW
0211203205
€ 5.00
20
0940720405
ref: 20
MODEL T
CLAMP
€ 4.50
20
0940725402
ref: 20
MODEL V/W/X
CLAMP(L:250)
0940725402
€ 4.50
