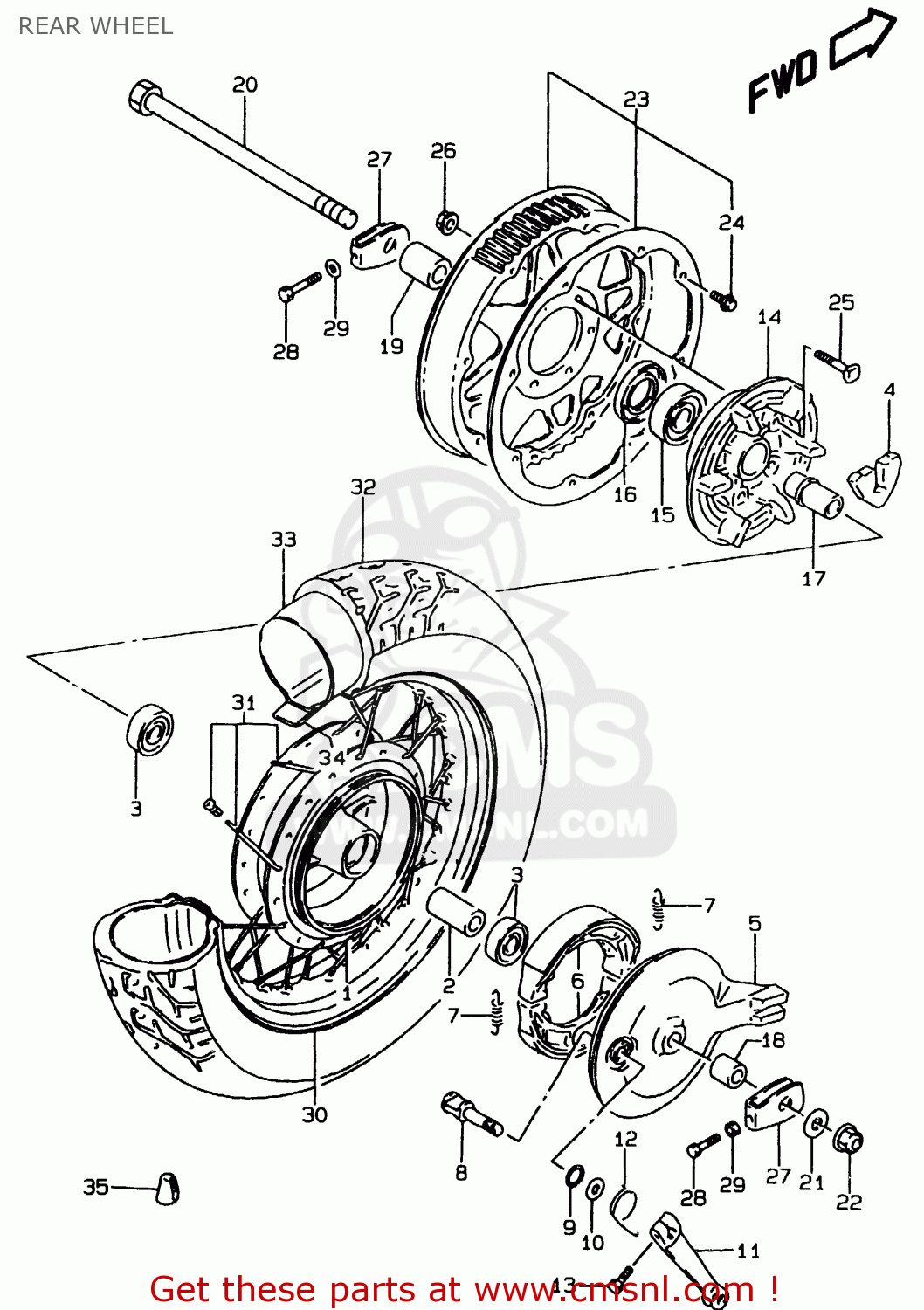

REAR WHEEL

ref

part #

description

quantity

1

6411024B00
ref: 1

HUB,RR WHEEL

€ 461.00

2

0918017069
ref: 2

SPACER(17.5X25X70)

€ 15.00

3

0814363037
ref: 3

BEARING

€ 23.00

4

6465131001
ref: 4

ABSORBER,RR HUB SHOCK

€ 9.50

5

6421024B01
ref: 5

PANEL,RR BRAKE ANCHOR

€ 215.00

6

6440044810
ref: 6

SHOE SET,BRAKE (NAS)

€ 44.00

7

5542030000
ref: 7

SPRING,BRAKE SHOE

€ 3.50

8

5444008004
ref: 8

CAM,BRAKE

€ 19.00

9

0928015003
ref: 9

O RING(D:2.4,ID:14.8)

€ 2.00

10

0916015048
ref: 10

WASHER(15.5X24X1.6)

€ 2.50

11

6445124B00
ref: 11

LEVER,RR BRAKE CAM

€ 26.50

12

0944833006
ref: 12

SPRING

€ 11.00

13

0157006253
ref: 13

BOLT. FRONT

€ 2.50

14

6461131003
ref: 14

DRUM,RR SPROCKET MOUNTING

€ 140.00

15

0926225073
ref: 15

BEARING(25X62X17)

€ 21.50

16

0928533001
ref: 16

SEAL,OIL(33X62X7)

€ 20.00

17

6473331300
ref: 17

RETAINER,RR SPROCKET DRUM

€ 16.50

18

0918017082
ref: 18

SPACER(17X28X22.3)

€ 7.00

19

0918017083
ref: 19

SPACER(17X33X35.3)

€ 11.00

20

6471124B02
ref: 20

AXLE,RR

€ 42.00

21

0916017050
ref: 21

WASHER(17X30X3.2)

€ 2.00

22

0915916002
ref: 22

NUT

€ 5.00

23

6451024B02
ref: 23

SPROCKET,REAR (NT:68)

€ 370.00

24

0155006123
ref: 24

BOLT

€ 2.50

25

0910510005
ref: 25

BOLT(10X40)

€ 3.00

26

0831931105
ref: 26
MODEL T/V

NUT 10MM

€ 3.00

26

0831931103
ref: 26
MODEL W/X

NUT

€ 3.00

27

6141024B00
ref: 27

ADJUSTER,BELT

€ 10.00

28

0910408027
ref: 28

BOLT(8X43)

€ 9.00

29

0831000087
ref: 29

NUT

€ 2.00

30

6531124B01
ref: 30

RIM,RR WHEEL WM(2.75X15 M/C)

€ 247.00

31

6532024B00
ref: 31

SPOKE SET,RR WHEEL

€ 49.50

32

6510024B02
ref: 32

TIRE,RR(140/80-15M/C 67H)

€ 126.00

33

6520038A00
ref: 33

TUBE ASSEMBLY,WHEEL,INNER

€ 32.50

34

6526124B01
ref: 34

PROTECTOR

€ 5.00

35

5541238A00
ref: 35

BALANCER,WHEEL

€ 6.50

35

5541338A00
ref: 35

BALANCER,WHEEL (30G)

€ 8.00

all assemblies
