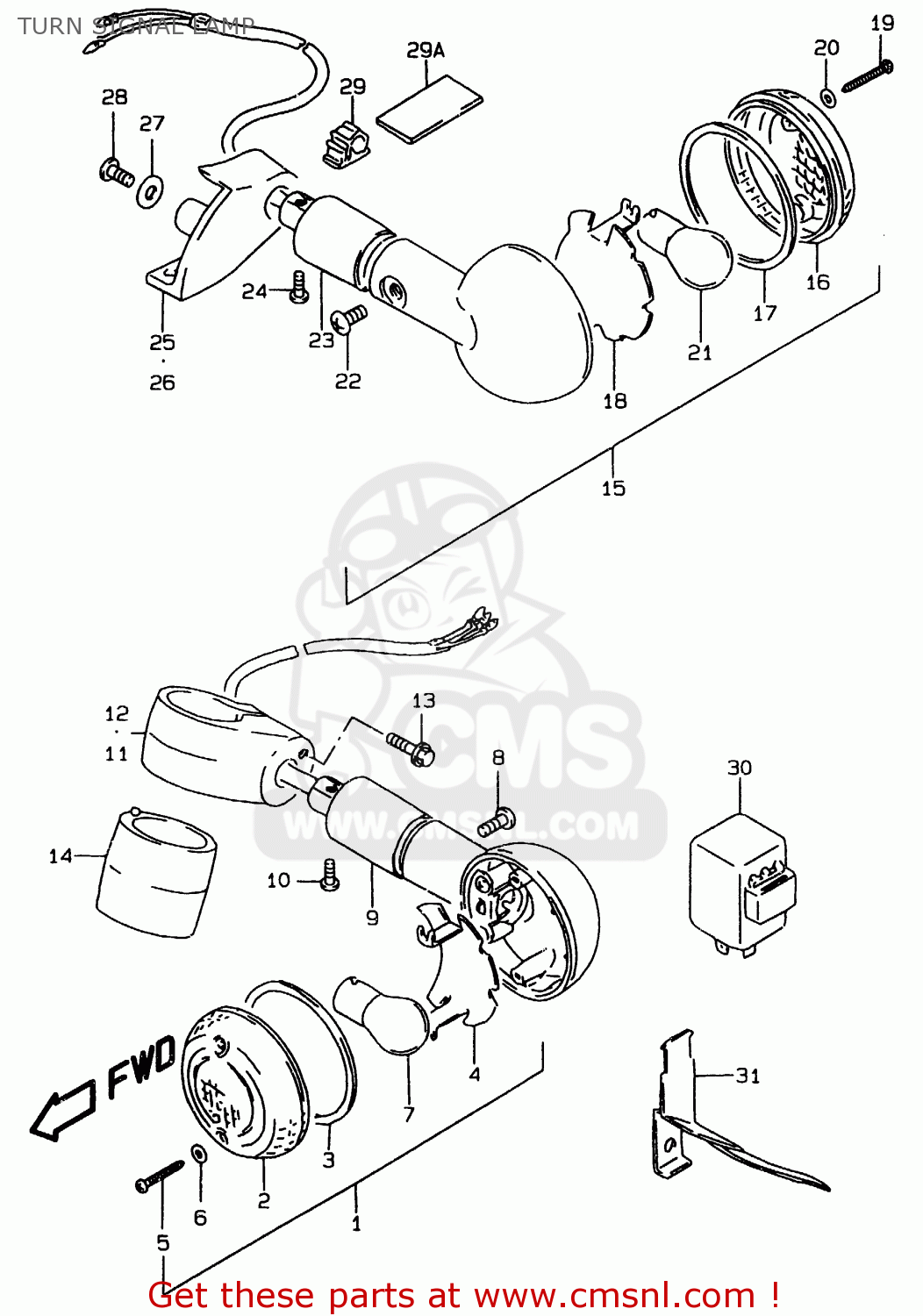

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560138A22
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 93.50

2

3561238A01
ref: 2

LENS

€ 10.50

3

3561338A00
ref: 3

GASKET (NAS)

€ 11.50

4

3562438A20
ref: 4

REFLECTOR

€ 71.00

5

0321104253
ref: 5

SCREW

€ 2.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

3562338A01
ref: 8

SCREW

€ 5.50

9

3561938A01
ref: 9

STAY,TURNSIGNAL LAMP

€ 35.50

10

0214206107
ref: 10

SCREW

€ 2.00

11

3567124B00
ref: 11

BRACKET,FR TURNSIGNAL LAMP,R

€ 45.50

12

3568124B00
ref: 12

BRACKET,FR TURNSIGNAL LAMP,L

€ 45.50

13

0154705257
ref: 13

BOLT

€ 2.00

14

3569524B20
ref: 14
E17, E18, E22

SPACER,FR TURNSIGNAL LAMP BRKT

€ 23.00

15

3560338A22
ref: 15

LAMP ASSY,RR TURNSIGNAL,R

€ 98.00

16

3565238A21
ref: 16

LENS

€ 16.50

17

3561338A00
ref: 17

GASKET (NAS)

€ 11.50

18

3565438A20
ref: 18

REFLECTOR

€ 83.50

19

0321104253
ref: 19

SCREW

€ 2.00

20

3562743010
ref: 20

GASKET (NAS)

€ 2.00

21

0947112045
ref: 21

BULB(12V21W)

€ 5.00

22

3562338A01
ref: 22

SCREW

€ 5.50

23

3561938A01
ref: 23

STAY,TURNSIGNAL LAMP

€ 35.50

24

0214206167
ref: 24

SCREW

€ 2.00

25

3562124B21
ref: 25
E17, E18, E22

BRACKET,RR TURNSIGNAL,R

€ 31.50

26

3564124B21
ref: 26
E17, E18, E22

BRACKET,RR TURNSIGNAL,L

€ 38.50

27

0916006066
ref: 27
E17, E18, E22

WASHER(6.5X20X1.6)

€ 2.00

28

0214206127
ref: 28
E17, E18, E22

SCREW 6X12

€ 1.50

29

0940307315
ref: 29

CLAMP

€ 3.50

29A

3692010B00
ref: 29A

TAPE

€ 3.00

30

3861045D01
ref: 30
MODEL T/V

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

30

3861026E00
ref: 30
MODEL W/X

RELAY ASSY

€ 47.00

31

3862124B10
ref: 31

BRACKET,TURNSIGNAL RELAY

€ 0.00

all assemblies
