LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

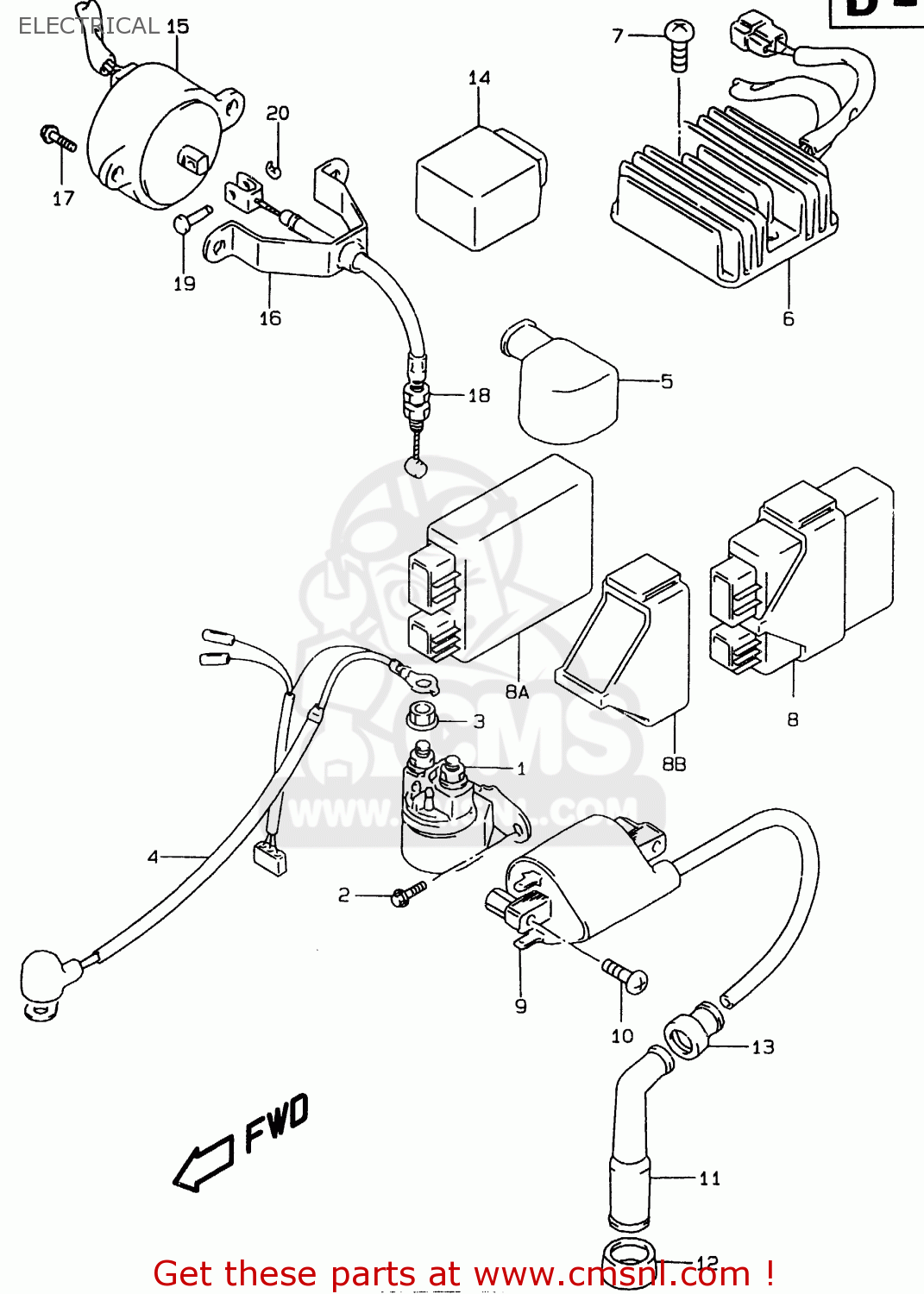

Electrical diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

ELECTRICAL LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
ELECTRICAL LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
ELECTRICAL LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
0155006103
ref: 2
BOLT
0155006103
€ 2.50
3
0836135068
ref: 3
NUT
0836135068
€ 2.00
4
3385024B10
ref: 4
WIRE,STARTER MOTOR
3385024B10
€ 27.00
5
3362449420
ref: 5
MODEL T/V
CAP,STARTER RELAY TERMINAL
€ 5.00
5
3362449401
ref: 5
MODEL W
CAP,STARTER RELAY TERMINAL
3362449401
€ 5.00
6
3280024B01
ref: 6
RECTIFIER ASSEMBLY
€ 243.50
7
0214206163
ref: 7
SCREW
0214206163
€ 2.50
8
3290024B20
ref: 8
~F.NO.NP41A-118010,
IGNITER ASSY
3290024B20
€ 431.00
8A
3290024B21
ref: 8A
F.NO.NP41A-118011~,
IGNITOR ASSY
€ 431.00
8B
3298024B00
ref: 8B
F.NO.NP41A-118011~,
CUSHION,IGNITOR
€ 8.50
9
3341024B00
ref: 9
COIL ASSY,IGNITION
3341024B00
€ 121.50
10
0214205123
ref: 10
SCREW 5X12
0214205123
€ 1.50
11
3351045010
ref: 11
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
12
3354124510
ref: 12
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
13
3354238B00
ref: 13
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
14
3291024B10
ref: 14
CONTROL UNIT,DECOMP
3291024B10
€ 69.50
15
3397024B00
ref: 15
SOLENOID ASSY,DECOMP
3397024B00
€ 174.00
16
3397124B00
ref: 16
BRACKET,DECOMP SOLENOID
€ 10.00
17
0155006163
ref: 17
BOLT
0155006163
€ 2.50
18
5890024B00
ref: 18
CABLE ASSEMBLY,DECOMPRESSION
5890024B00
€ 21.00
19
0920904020
ref: 19
PIN(4X12.5)
0920904020
€ 5.50
20
0833211033
ref: 20
E RING
0833211033
€ 1.50
