HANDLE SWITCH

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

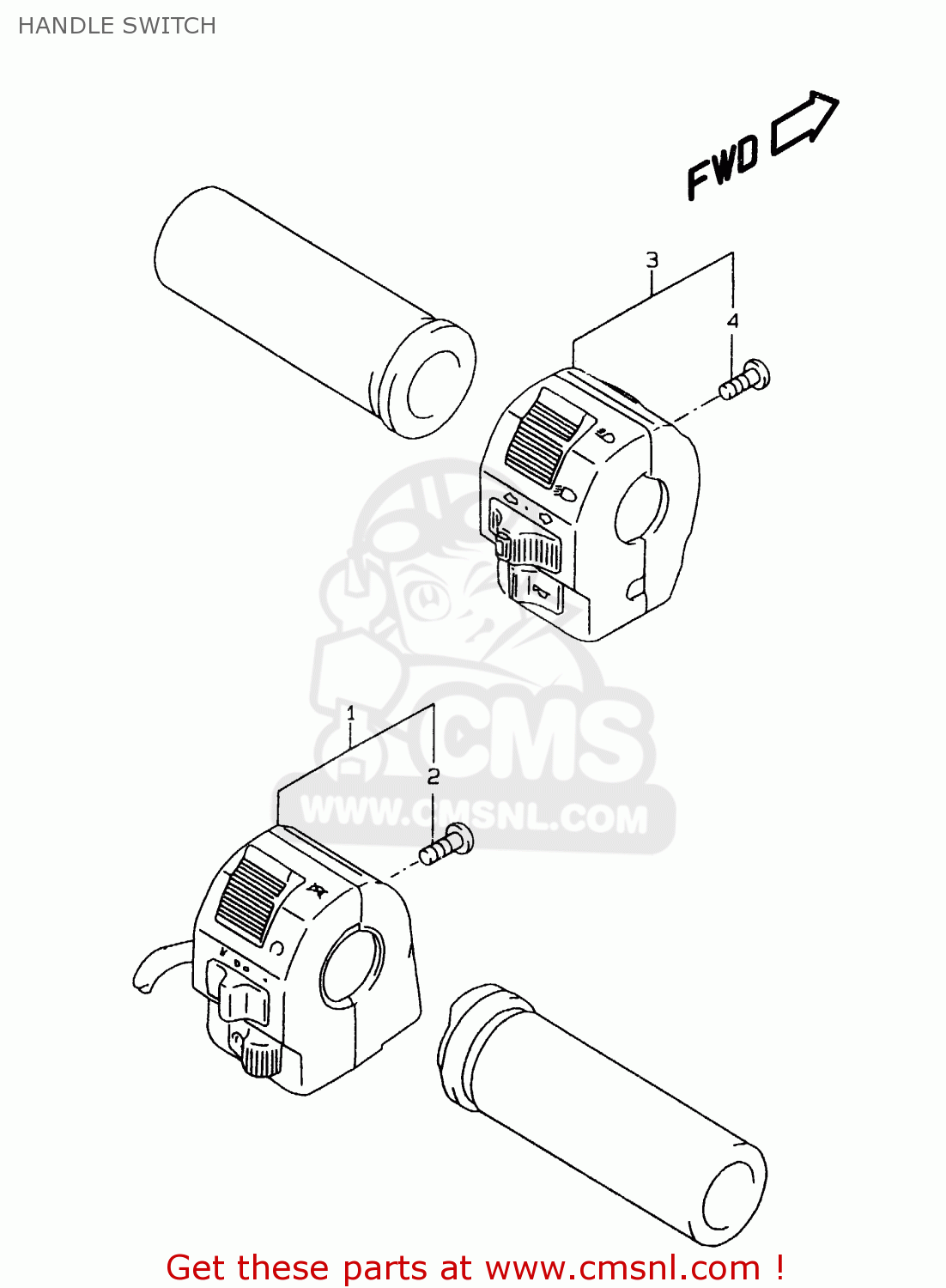

Handle switch diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

HANDLE SWITCH LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

HANDLE SWITCH LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

1

3720024BA0
ref: 1

SWITCH ASSY,HANDLE,R

€ 205.50

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740024BA0
ref: 3

SWITCH ASSY,HANDLE,L

€ 238.50

4

0211205167
ref: 4

SCREW

€ 2.50
