CRANKCASE

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

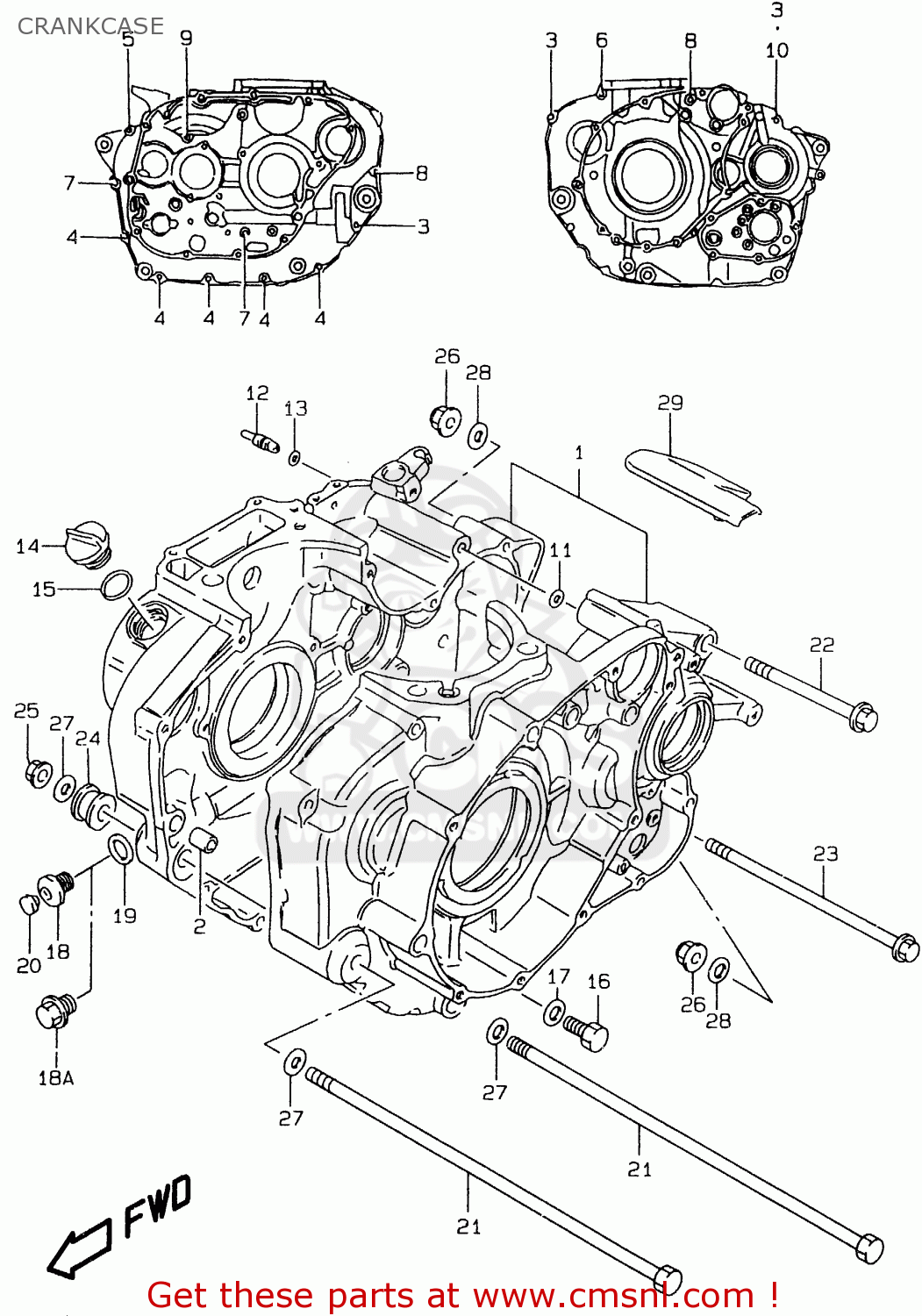

Crankcase diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

CRANKCASE LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
CRANKCASE LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
CRANKCASE LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
1130124812
ref: 1
CRANKCASE SET
€ 1,352.00
2
0920611017
ref: 2
PIN(8.4X11X20)
0920611017
€ 6.50
3
0154706407
ref: 3
BOLT
0154706407
€ 2.50
4
0154706457
ref: 4
BOLT
0154706457
€ 2.50
5
0154706557
ref: 5
BOLT
0154706557
€ 2.50
6
0154706607
ref: 6
BOLT
0154706607
€ 2.50
7
0154706657
ref: 7
BOLT
0154706657
€ 2.00
8
0154706707
ref: 8
BOLT
0154706707
€ 2.50
9
0154706753
ref: 9
BOLT
€ 2.00
10
0916806024
ref: 10
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
11
0928010013
ref: 11
O RING(D:2.4,ID:9.6)
0928010013
€ 5.50
12
0949336004
ref: 12
JET,OIL GALLERY(18)
0949336004
€ 8.00
13
0928004004
ref: 13
O RING(D:1.2,ID:4)
0928004004
€ 2.00
14
0925920007
ref: 14
PLUG(20X10)
0925920007
€ 6.50
15
0928017003
ref: 15
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
16
0150012203
ref: 16
MODEL T/V/W
BOLT
0150012203
€ 3.00
16
0924712106
ref: 16
MODEL X
PLUG,12X20
0924712106
€ 2.50
17
0916812002
ref: 17
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
18
0924814005
ref: 18
~F.NO.NP41A-116898,
PLUG,14X12
0924814005
€ 5.00
18A
0924714026
ref: 18A
F.NO.NP41A-116899~,
PLUG(14X12)
0924714026
€ 3.50
19
0916814002
ref: 19
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
20
0925008014
ref: 20
~F.NO.NP41A-116898,
CAP(OD:12)
0925008014
€ 3.50
21
0910410034
ref: 21
BOLT(10X323)
0910410034
€ 16.50
22
0910310087
ref: 22
BOLT(10X105)
0910310087
€ 6.50
23
0910310053
ref: 23
BOLT(10X180)
0910310053
€ 7.50
24
1161038400
ref: 24
SPACER,ENGINE MOUNT(L20)
1161038400
€ 9.00
25
0915910064
ref: 25
NUT
0915910064
€ 8.50
26
0915910047
ref: 26
NUT
0915910047
€ 7.50
27
0832201107
ref: 27
WASHER
0832201107
€ 2.50
28
0832201103
ref: 28
WASHER
0832201103
€ 2.50
29
1138424B01
ref: 29
COVER,CRANKCASE START MOT
1138424B01
€ 18.00
