GEAR SHIFTING

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

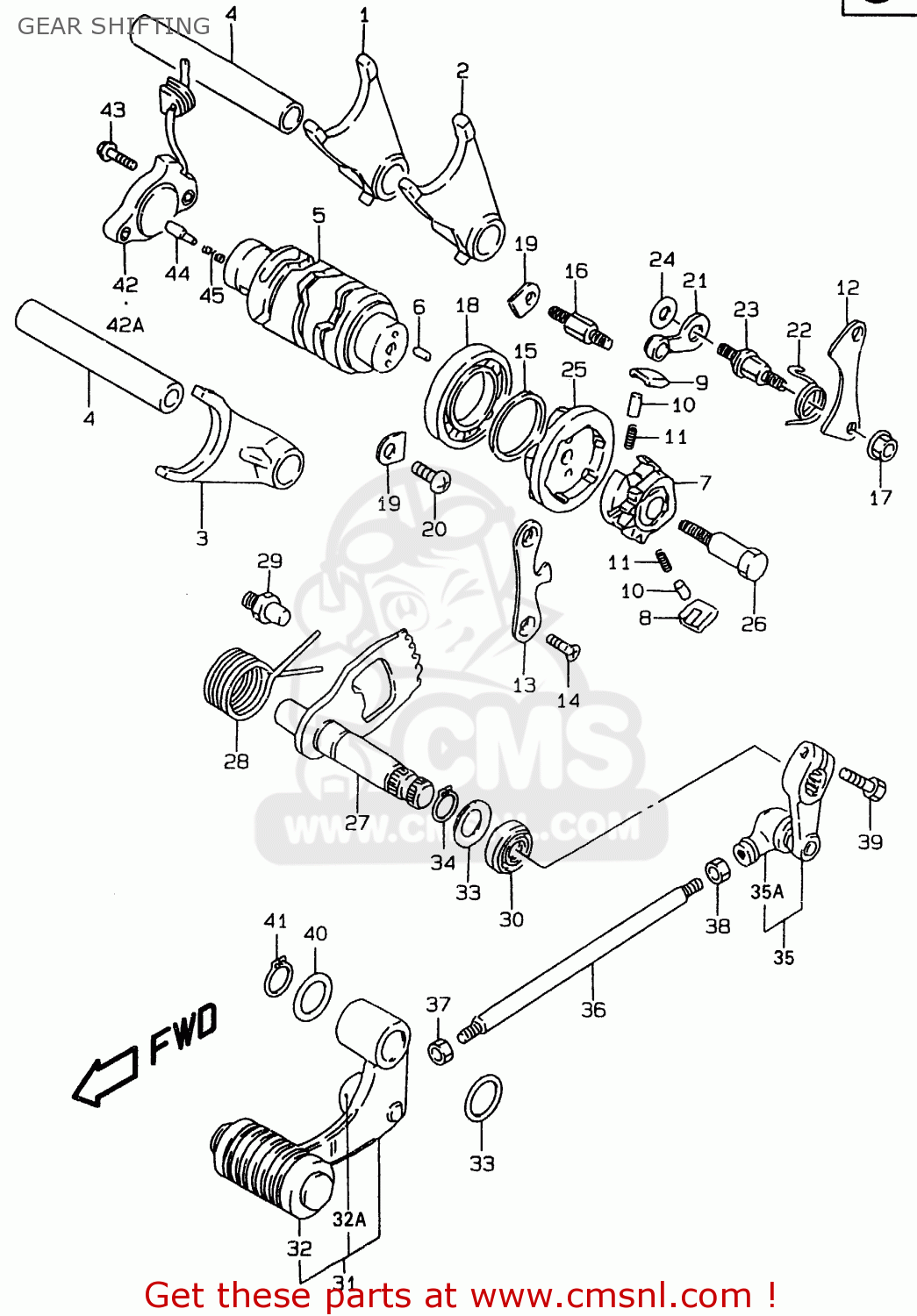

Gear shifting diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

GEAR SHIFTING LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
GEAR SHIFTING LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
GEAR SHIFTING LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
2521124B10
ref: 1
FORK,GEAR SHIFT NO.1
2521124B10
€ 72.00
2
2522124B10
ref: 2
FORK,GEAR SHIFT NO.2
2522124B10
€ 63.50
3
2523124B10
ref: 3
FORK,GEAR SHIFT NO.3
€ 59.50
4
2541124B00
ref: 4
SHAFT,GEAR SHIFT FORK
2541124B00
€ 19.00
5
2531024B11
ref: 5
CAM,GEAR SHIFT
2531024B11
€ 114.50
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2532231301
ref: 7
MODEL T
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
7
2532231310
ref: 7
MODEL V/W/X, <-25322
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533138A00
ref: 12
LIFTER,GEAR SHIFT POLE
2533138A00
€ 4.50
13
2534138A00
ref: 13
GUIDE,GEAR SHIFT CAM
2534138A00
€ 6.00
14
0212206123
ref: 14
SCREW
0212206123
€ 3.00
15
0916025059
ref: 15
WASHER(25X32X3)
0916025059
€ 5.00
16
2533224B00
ref: 16
BOSS,SHIFT PAWL LIFTER
€ 7.50
17
0831610063
ref: 17
NUT
0831610063
€ 2.50
18
0926225006
ref: 18
BEARING(25X47X8)
0926225006
€ 24.00
19
2474121A00
ref: 19
RETAINER
2474121A00
€ 2.00
20
0211206123
ref: 20
SCREW
0211206123
€ 1.50
21
2535024B00
ref: 21
STOPPER,GEAR SHIFT CAM
2535024B00
€ 8.00
22
0944817021
ref: 22
SPRING
0944817021
€ 5.00
23
2535612C00
ref: 23
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
24
0821106141
ref: 24
WASHER
0821106141
€ 2.50
25
2538038B00
ref: 25
<-25380-38A02
PLATE,GEAR SHIFT CAM
2538038B00
€ 15.00
26
2531238A00
ref: 26
PIN,SHIFT CAM DRIVEN GEAR
2531238A00
€ 4.00
27
2551024B01
ref: 27
SHAFT,GEAR SHIFT
€ 66.00
28
0944426013
ref: 28
SPRING
0944426013
€ 3.50
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928512002
ref: 30
OIL SEAL
0928512002
€ 7.00
31
2560024B03
ref: 31
LEVER ASSY,GEAR SHIFT
2560024B03
€ 34.50
32
2565220C00
ref: 32
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
32A
2552647000
ref: 32A
COVER,DUST
2552647000
€ 3.50
33
0916012011
ref: 33
WASHER(12.5X20X1)
0916012011
€ 1.50
34
0833131126
ref: 34
CIRCLIP,12 MM
0833131126
€ 2.00
35
2552022A00
ref: 35
ARM,GEAR SHIFT LINK
2552022A00
€ 46.50
35A
2552647000
ref: 35A
COVER,DUST
2552647000
€ 3.50
36
2552521E50
ref: 36
ROD,GEAR SHIFT LINK
2552521E50
€ 12.00
37
0914006011
ref: 37
NUT
0914006011
€ 1.50
38
0831000063
ref: 38
NUT 6MM
0831000063
€ 2.00
39
0150006203
ref: 39
BOLT
0150006203
€ 2.00
40
0821212201
ref: 40
WASHER
0821212201
€ 1.50
41
0833131126
ref: 41
CIRCLIP,12 MM
0833131126
€ 2.00
42
3772024B20
ref: 42
BASE ASSY,GEAR SHIFT TERMINAL
3772024B20
€ 71.50
42A
3772024B30
ref: 42A
E18
BASE ASSY,NEUTRAL SW TERMINAL
3772024B30
€ 49.00
43
0211275163
ref: 43
SCREW
0211275163
€ 2.50
44
0920905011
ref: 44
PIN(5X15.5)
0920905011
€ 2.00
45
0944004010
ref: 45
SPRING
0944004010
€ 1.50
