CYLINDER

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

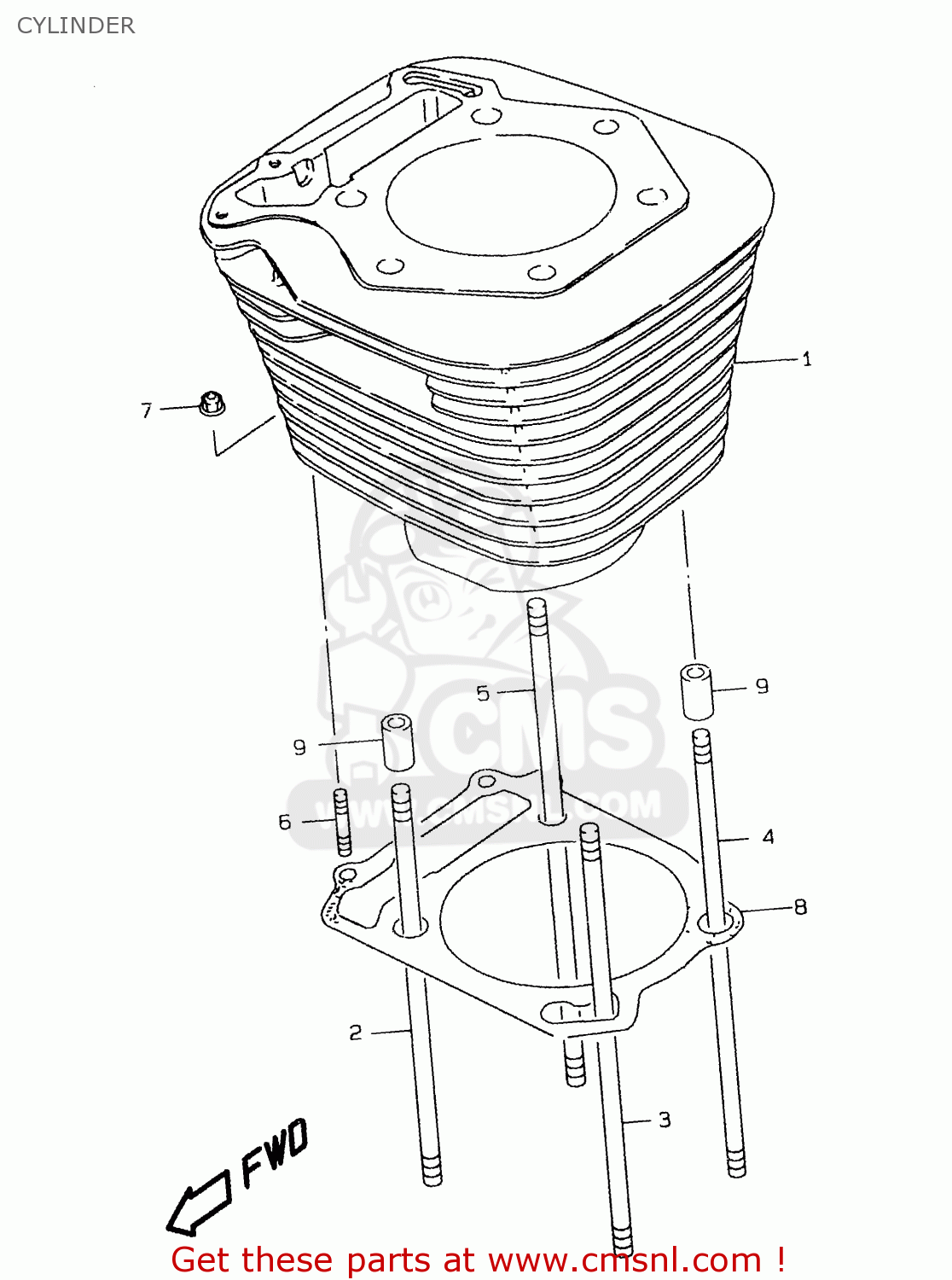

Cylinder diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

CYLINDER LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

CYLINDER LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

prices are in EUR

ref

part #

description

quantity

1

1121024B07
ref: 1

CYLINDER

€ 606.50

2

0910809001
ref: 2

BOLT,STUD

€ 7.50

3

0910809002
ref: 3

BOLT,STUD

€ 8.50

4

0910809003
ref: 4

BOLT,STUD

€ 9.00

5

0910809004
ref: 5

BOLT,STUD

€ 9.00

6

0142106208
ref: 6

STUD 6X20

€ 2.50

7

0831310067
ref: 7

NUT

€ 2.00

8

1124124B01H17
ref: 8

GASKET,CYLINDER (NAS)

€ 10.00

9

0421113189
ref: 9

PIN

€ 2.50
