WIRING HARNESS

LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

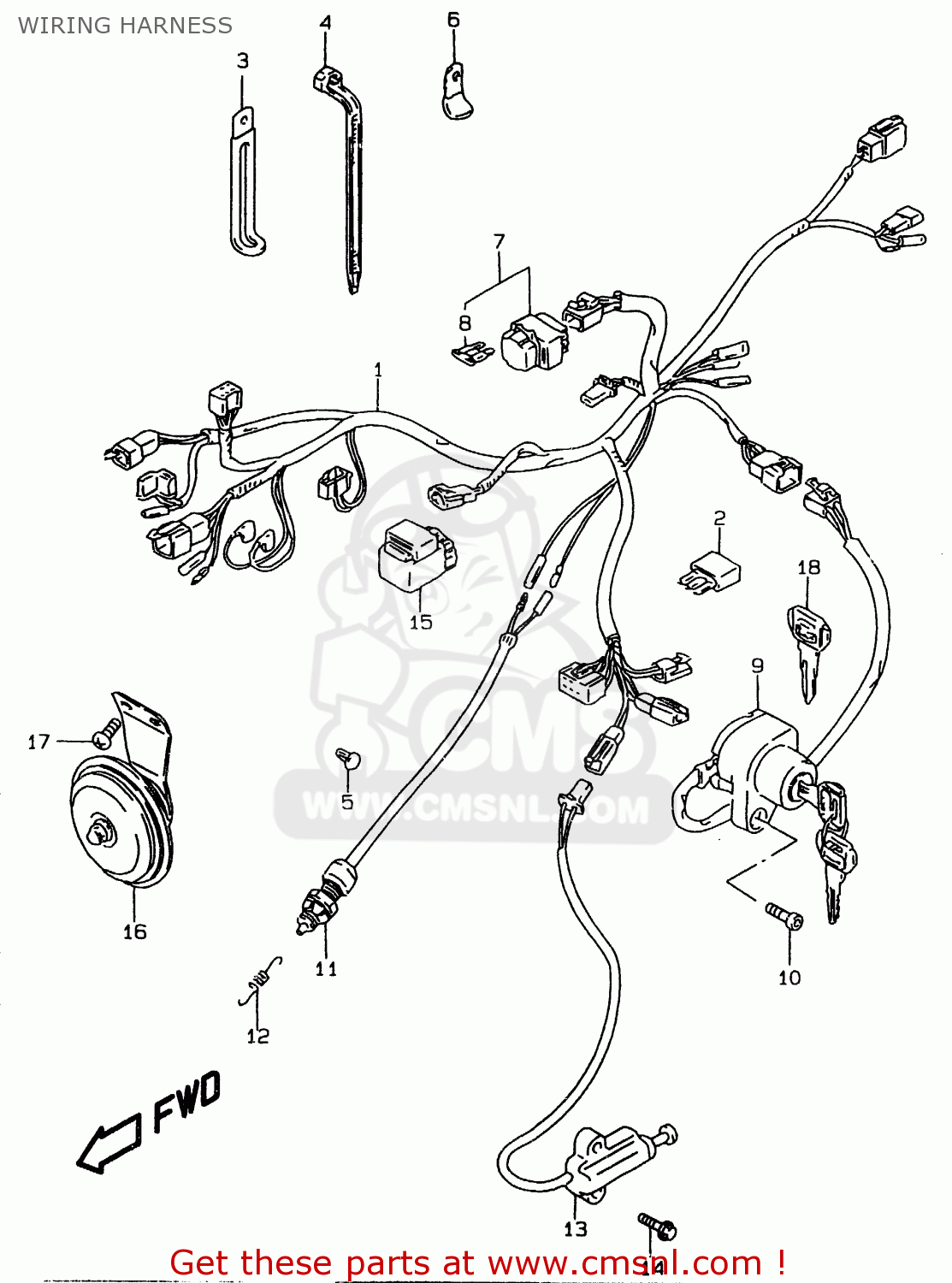

Wiring harness diagram LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

WIRING HARNESS LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
WIRING HARNESS LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
WIRING HARNESS LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37
prices are in EUR
ref
part #
description
quantity
1
3661024B60
ref: 1
HARNESS,WIRING
€ 370.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
0940406432
ref: 3
<-09404-06429, <-094
CLAMP(L:65)
0940406432
€ 2.50
3
0940408207
ref: 3
<-09404-08419
CLAMP(L:80)
0940408207
€ 3.00
4
0940714403
ref: 4
CLAMP(L:125)
0940714403
€ 2.50
4
0940725401
ref: 4
CLAMP(L:235)
0940725401
€ 4.00
5
09409053075ES
ref: 5
CLIP(BLACK)
09409053075ES
€ 2.00
6
3665124B00
ref: 6
CLAMP
€ 0.00
7
3674024B01
ref: 7
BOX ASSY,FUSE
3674024B01
€ 18.00
8
0948120101
ref: 8
FUSE(20A)
0948120101
€ 2.00
9
3711024B03
ref: 9
<-37110-24B02
SWITCH ASSY,IGNITION
3711024B03
€ 71.00
10
0713005163
ref: 10
BOLT
€ 2.00
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
12
0944306077
ref: 12
SPRING
0944306077
€ 4.50
13
3784012X50
ref: 13
SWITCH ASSY,SIDE STAND WARNING
3784012X50
€ 76.00
14
0155006203
ref: 14
BOLT
0155006203
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 37.50
16
3850024B10
ref: 16
HORN ASSY
€ 64.50
17
0214206123
ref: 17
SCREW 6X12
0214206123
€ 2.00
18
3714603A00
ref: 18
OPT
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
18
3714603A10
ref: 18
OPT
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
18
3714603A20
ref: 18
OPT
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
18
3714603A30
ref: 18
OPT
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
