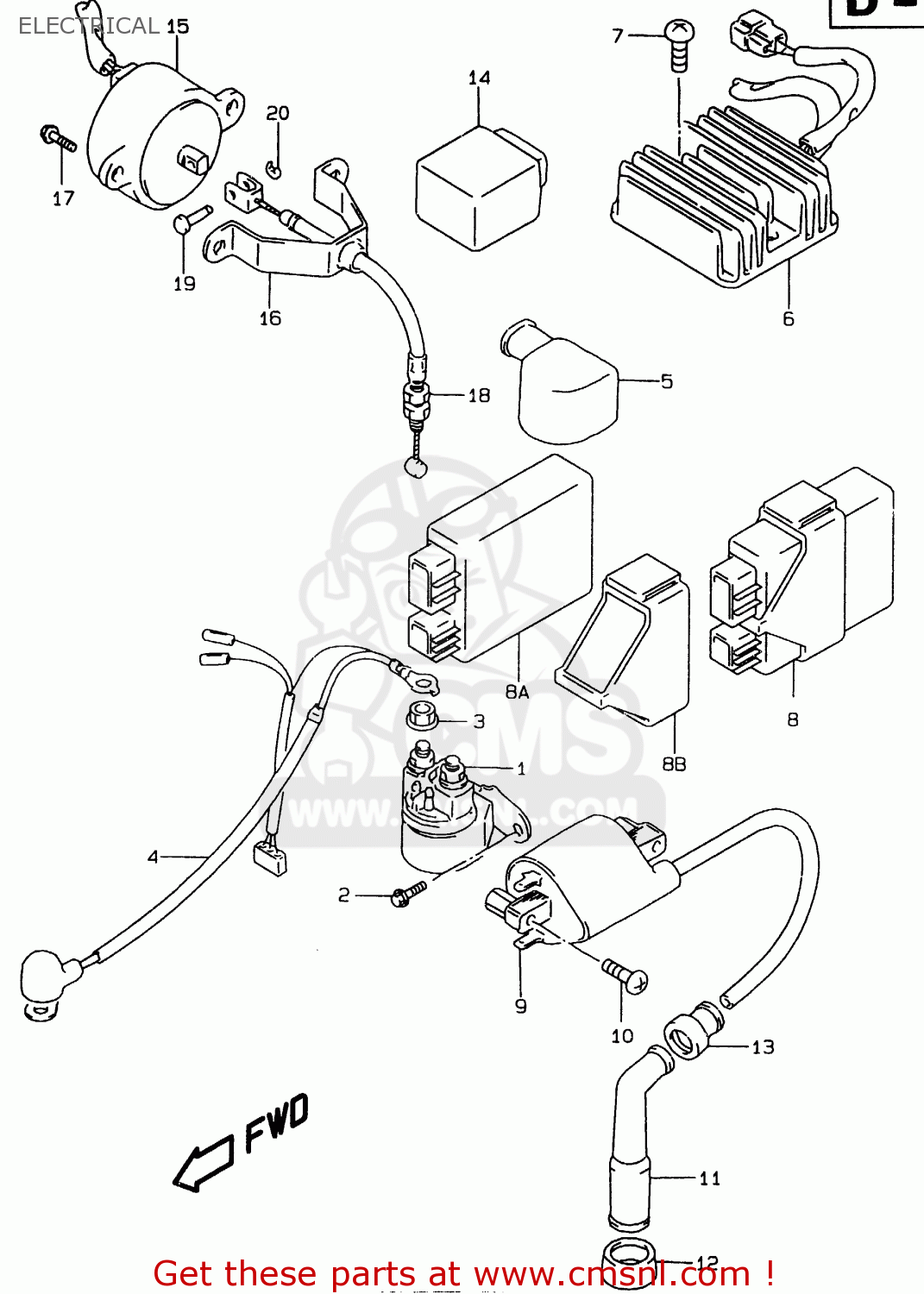

ELECTRICAL

ref

part #

description

quantity

1

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

2

0155006103
ref: 2

BOLT

€ 2.50

3

0836135068
ref: 3

NUT

€ 2.00

4

3385024B10
ref: 4

WIRE,STARTER MOTOR

€ 27.00

5

3362449420
ref: 5
MODEL T/V

CAP,STARTER RELAY TERMINAL

€ 5.00

5

3362449401
ref: 5
MODEL W

CAP,STARTER RELAY TERMINAL

€ 5.00

6

3280024B01
ref: 6

RECTIFIER ASSEMBLY

€ 243.50

7

0214206163
ref: 7

SCREW

€ 2.50

8

3290024B20
ref: 8
~F.NO.NP41A-118010,

IGNITER ASSY

€ 431.00

8A

3290024B21
ref: 8A
F.NO.NP41A-118011~,

IGNITOR ASSY

€ 431.00

8B

3298024B00
ref: 8B
F.NO.NP41A-118011~,

CUSHION,IGNITOR

€ 8.50

9

3341024B00
ref: 9

COIL ASSY,IGNITION

€ 121.50

10

0214205123
ref: 10

SCREW 5X12

€ 1.50

11

3351045010
ref: 11

CAP ASSY,SPARK PLUG

€ 23.00

12

3354124510
ref: 12

SEAL,SPARK PLUG CAP

€ 7.00

13

3354238B00
ref: 13

SEAL,HIGH TENSION CORD

€ 4.50

14

3291024B10
ref: 14

CONTROL UNIT,DECOMP

€ 69.50

15

3397024B00
ref: 15

SOLENOID ASSY,DECOMP

€ 174.00

16

3397124B00
ref: 16

BRACKET,DECOMP SOLENOID

€ 10.00

17

0155006163
ref: 17

BOLT

€ 2.50

18

5890024B00
ref: 18

CABLE ASSEMBLY,DECOMPRESSION

€ 21.00

19

0920904020
ref: 19

PIN(4X12.5)

€ 5.50

20

0833211033
ref: 20

E RING

€ 1.50

all assemblies
