FUEL TANK (MODEL V/W/X)
LS650P 2000 (Y) (E01)

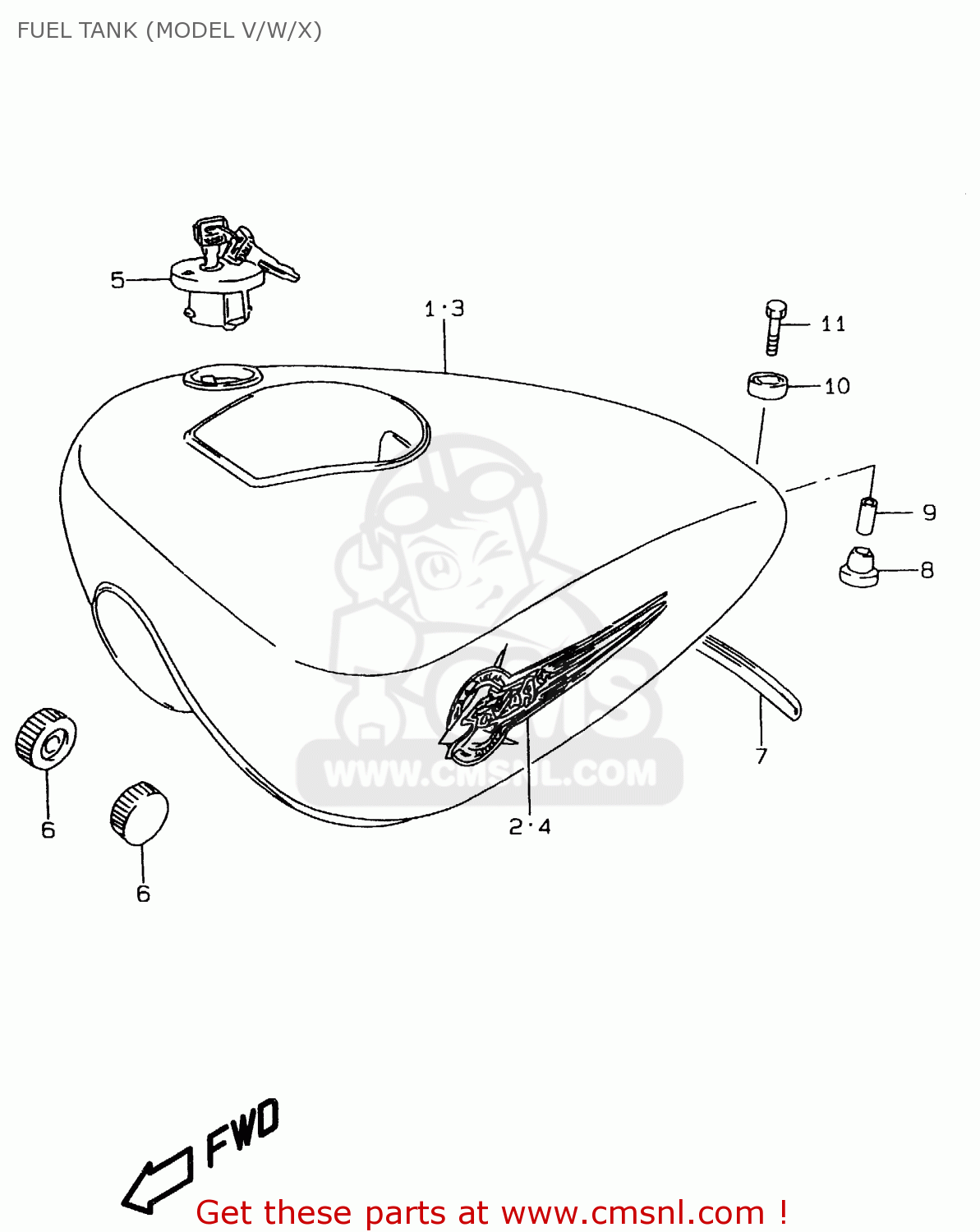

Fuel tank (model v/w/x) diagram LS650P 2000 (Y) (E01)
FUEL TANK (MODEL V/W/X) LS650P 2000 (Y) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4410025B012VX
ref: 1
MODEL V
TANK ASSEMBLY,FUEL
€ 501.00
1
4410025B013NX
ref: 1
MODEL V
TANK ASSY, FUEL (GRAY)
€ 417.00
1
4410025B01Y0W
ref: 1
MODEL V
TANK ASSEMBLY,FUEL
€ 468.50
1
4410025B112VX
ref: 1
MODEL V E17, E22
TANK ASSY,FUEL(BLACK)
€ 501.00
1
4410025B113NX
ref: 1
MODEL V E17, E22
TANK ASSY,FUEL(GRAY)
€ 417.00
1
4410025B11Y0W
ref: 1
MODEL V E17, E22
TANK ASSY,FUEL(ORANGE)
€ 468.50
2
6811025B00Y2J
ref: 2
MODEL V FOR 2VX
TAPE SET,FUEL TANK
€ 61.00
2
6811025B00Y2K
ref: 2
MODEL V FOR 1ZZ
TAPE SET,FUEL TANK
€ 51.00
2
6811025B00Y2L
ref: 2
MODEL V FOR Y0W
TAPE SET,FUEL TANK
€ 44.50
3
4410025B3033J
ref: 3
MODEL W/X
TANK ASSEMBLY,FUEL
€ 511.50
3
4410025B30Y0W
ref: 3
MODEL W
TANK ASSEMBLY,FUEL
€ 381.50
3
4410025B30Z94
ref: 3
MODEL W
TANK ASSEMBLY,FUEL
€ 516.00
3
4410025B4033J
ref: 3
MODEL W E17, E22
TANK ASSY,FUEL(BLACK)
€ 511.50
3
4410025B40Y0W
ref: 3
MODEL W E17, E22
TANK ASSY, FUEL (ORANGE)
€ 381.50
3
4410025B40Z94
ref: 3
MODEL W E17, E22
TANK ASSY,FUEL
€ 516.00
3
4410025B30Y3K
ref: 3
MODEL X
TANK ASSEMBLY,FUEL
€ 400.50
3
4410025B30Y4M
ref: 3
MODEL X
TANK ASSEMBLY,FUEL
€ 414.00
3
4410025B40Y3K
ref: 3
MODEL X E17, E22
TANK ASSY,FUEL(SILVER)
€ 400.50
3
4410025B40Y4M
ref: 3
MODEL X E17, E22
TANK ASSY,FUEL(MAROON)
€ 414.00
4
6811024B00J9C
ref: 4
MODEL W/X FOR 33J
TAPE SET,FUEL TANK
€ 40.00
4
6811024B00J9D
ref: 4
MODEL W FOR Y0W
TAPE SET,FUEL TANK
€ 0.00
4
6811024B00J9E
ref: 4
MODEL W FOR Z94
TAPE SET,FUEL TANK
€ 0.00
4
6811024B00M0V
ref: 4
MODEL X FOR Y3K
TAPE SET,FUEL TANK
€ 52.50
4
6811024B00M0W
ref: 4
MODEL X FOR Y4M
TAPE SET,FUEL TANK
€ 42.50
5
4420024830
ref: 5
CAP SET,FUEL TANK
€ 109.50
6
0932910016
ref: 6
CUSHION
€ 3.00
7
4455224B00
ref: 7
MOLDING,FUEL TANK RR
€ 3.50
8
0932010020
ref: 8
CUSHION
€ 4.00
9
0918006271
ref: 9
SPACER(6.5X9X18)
€ 2.00
10
0932014013
ref: 10
CUSHION
€ 3.00
11
0150006303
ref: 11
BOLT
€ 2.50
