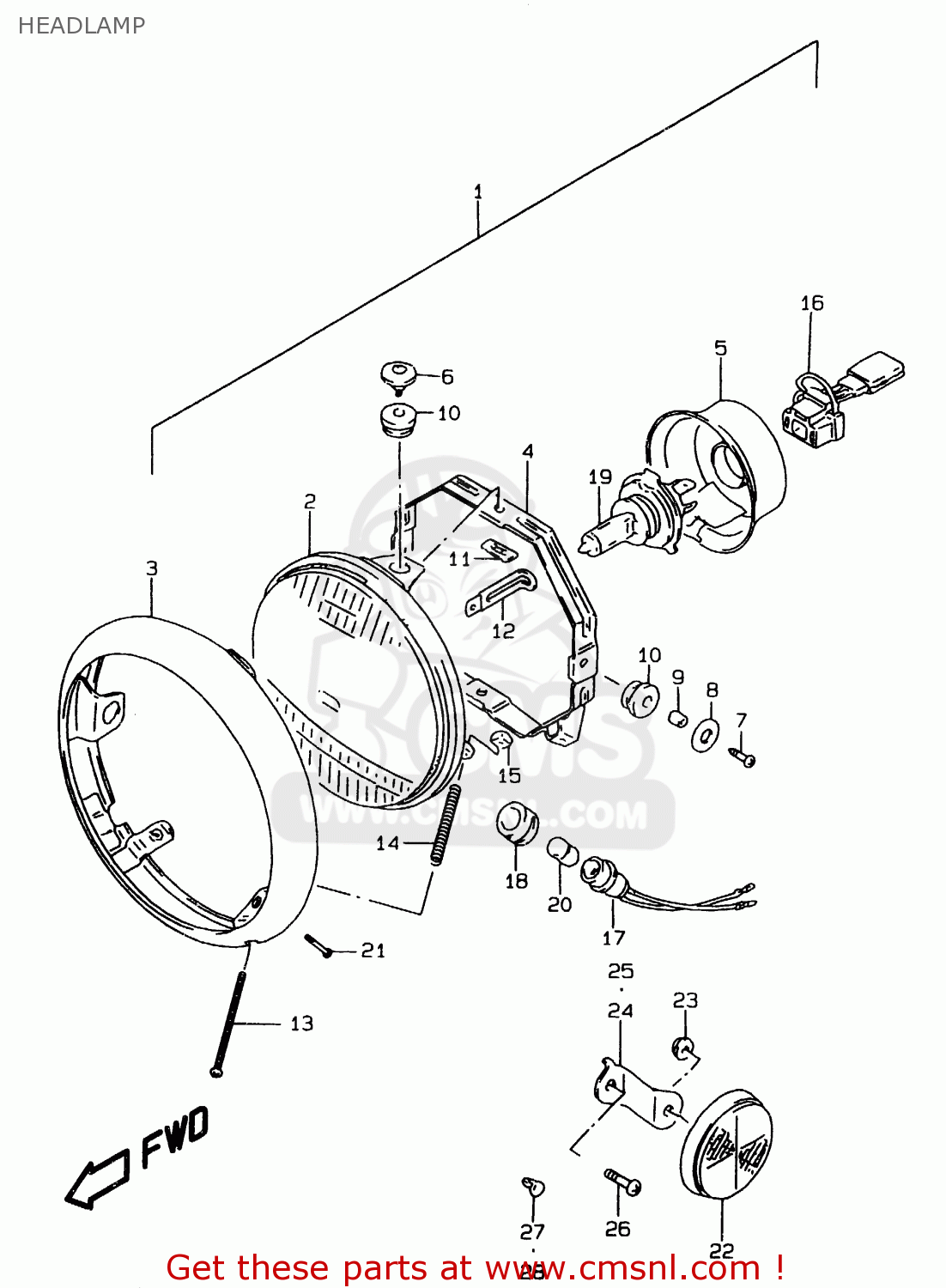

HEADLAMP

ref

part #

description

quantity

1

3510038A00
ref: 1

HEADLAMP ASSY

€ 215.50

1

3510038A51999
ref: 1
E4, E17, E18, E22, E

HEADLAMP ASSY

€ 216.50

2

3512138A00
ref: 2

LAMP UNIT

€ 126.50

2

3512138A41
ref: 2
E4, E17, E18, E22, E

UNIT

€ 126.50

3

3511138A00
ref: 3

RIM

€ 27.00

4

3513038A00
ref: 4

RING,MOUNTING

€ 15.00

5

3517338A00
ref: 5

COVER,SOCKET

€ 12.50

6

3513638A00
ref: 6

SCREW,MOUNTING

€ 2.50

7

0912505102
ref: 7

SCREW(5X14)

€ 2.50

8

0916005045
ref: 8
<-09160-05003

WASHER(5.5X18X1)

€ 2.00

9

3513345230
ref: 9

SPACER

€ 2.00

10

3513945230
ref: 10

CUSHION

€ 1.50

11

3515548510
ref: 11

NUT

€ 2.00

12

0940406432
ref: 12
<-09404-06429

CLAMP(L:65)

€ 2.50

13

3515138A00
ref: 13

SCREW,ADJUSTING(4X50)

€ 2.50

14

3515431300
ref: 14

SPRING

€ 2.00

15

3513545600
ref: 15

NUT

€ 3.00

16

3685338A00
ref: 16

SOCKET

€ 10.00

17

3611849320
ref: 17

SOCKET

€ 12.00

18

3611622630
ref: 18

JOINT,RUBBER

€ 5.00

19

0947112060
ref: 19

BULB(12V60/55W,H4)

€ 8.00

20

0947112001
ref: 20

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

20

0947112063
ref: 20
E4, E17, E18, E22, E

BULB(12V4W)

€ 6.00

21

0214205127
ref: 21

SCREW

€ 1.50

22

3595014A00
ref: 22
E18

REFLECTOR,REFLEX FR

€ 15.00

23

0831000053
ref: 23
E18

NUT

€ 2.50

24

3595624B20
ref: 24
E18

BRACKET,FRONT SIDE RH

€ 0.00

25

3595724B20
ref: 25
E18

BRACKET,FRONT SIDE RH

€ 0.00

26

0211235123
ref: 26
E18

SCREW

€ 1.50

27

09409053045PK
ref: 27
M5 HOLE

CLIP(BLACK)

€ 2.00

28

0940906306
ref: 28
M5.5 HOLE

CLIP

€ 2.00

all assemblies
