FRONT MASTER CYLINDER
LS650P 2000 (Y) (E01)

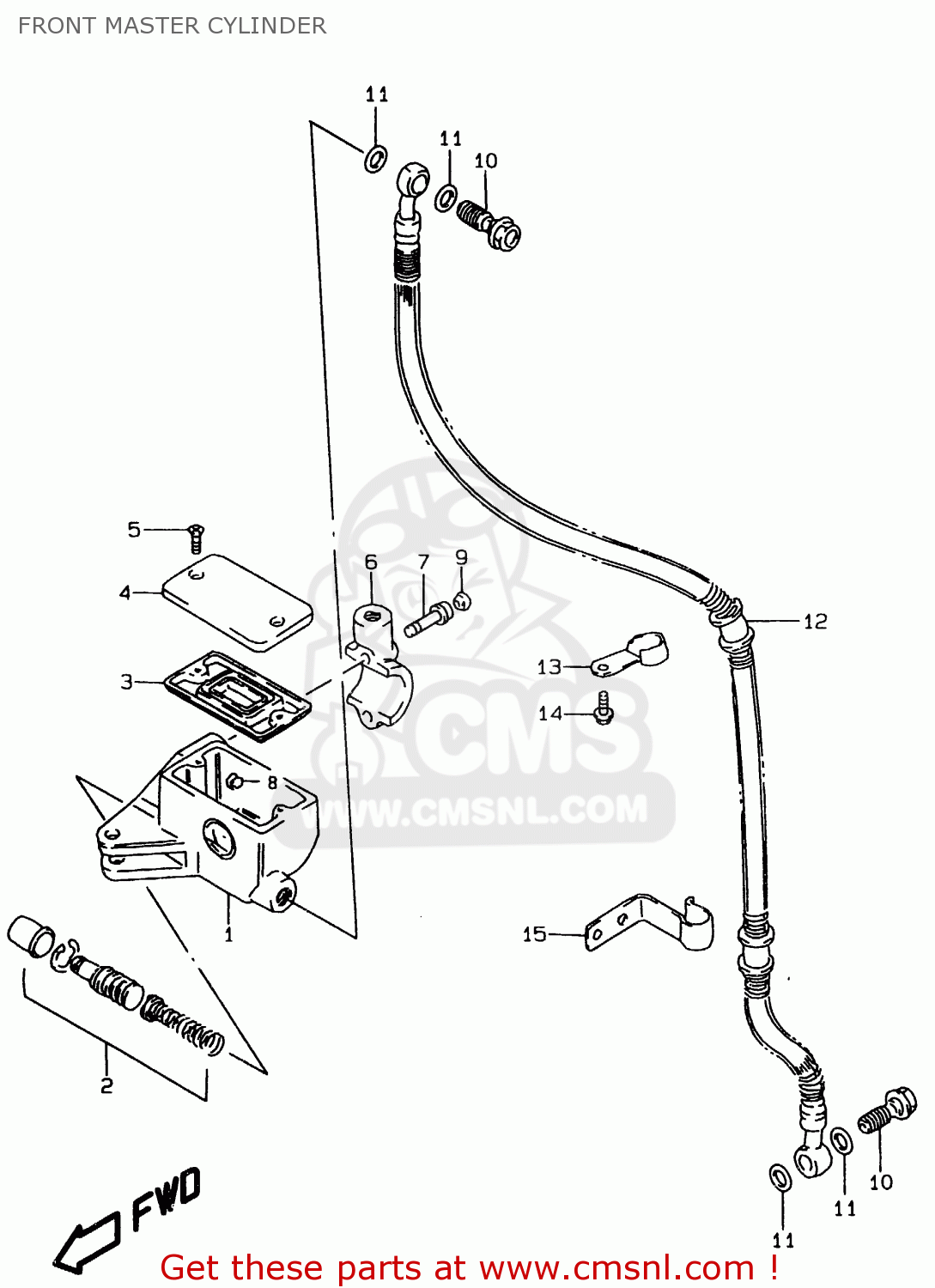

Front master cylinder diagram LS650P 2000 (Y) (E01)
FRONT MASTER CYLINDER LS650P 2000 (Y) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5960024B50
ref: 1
CYLINDER ASSY,FR MASTER
€ 391.50
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966749460
ref: 3
5966749460
4
5966924B00
ref: 4
CAP
€ 59.00
5
0212204127
ref: 5
SCREW
€ 2.00
6
5967138A00
ref: 6
HOLDER
€ 37.50
7
0713006207
ref: 7
BOLT
€ 3.50
8
5966448B00
ref: 8
PROTECTOR
€ 8.00
9
0925005008
ref: 9
CAP(OD:10)
€ 5.00
10
0936010039
ref: 10
BOLT UNION
€ 6.50
11
0916110009
ref: 11
WASHER(10X15X1.5)
€ 2.00
12
5948024B20
ref: 12
MODEL T
HOSE,FR BRAKE
€ 225.00
12
5948024B30
ref: 12
MODEL V/W/X
HOSE COMP,FRONT BRAKE
€ 225.00
13
5954124B00
ref: 13
GUIDE,BRAKE HOSE NO.1
€ 6.50
14
0154706107
ref: 14
BOLT
€ 1.50
15
5926824B00
ref: 15
GUIDE,BRAKE HOSE NO.2
€ 7.50
