MAGNETO
LS650P 2000 (Y) (E01)

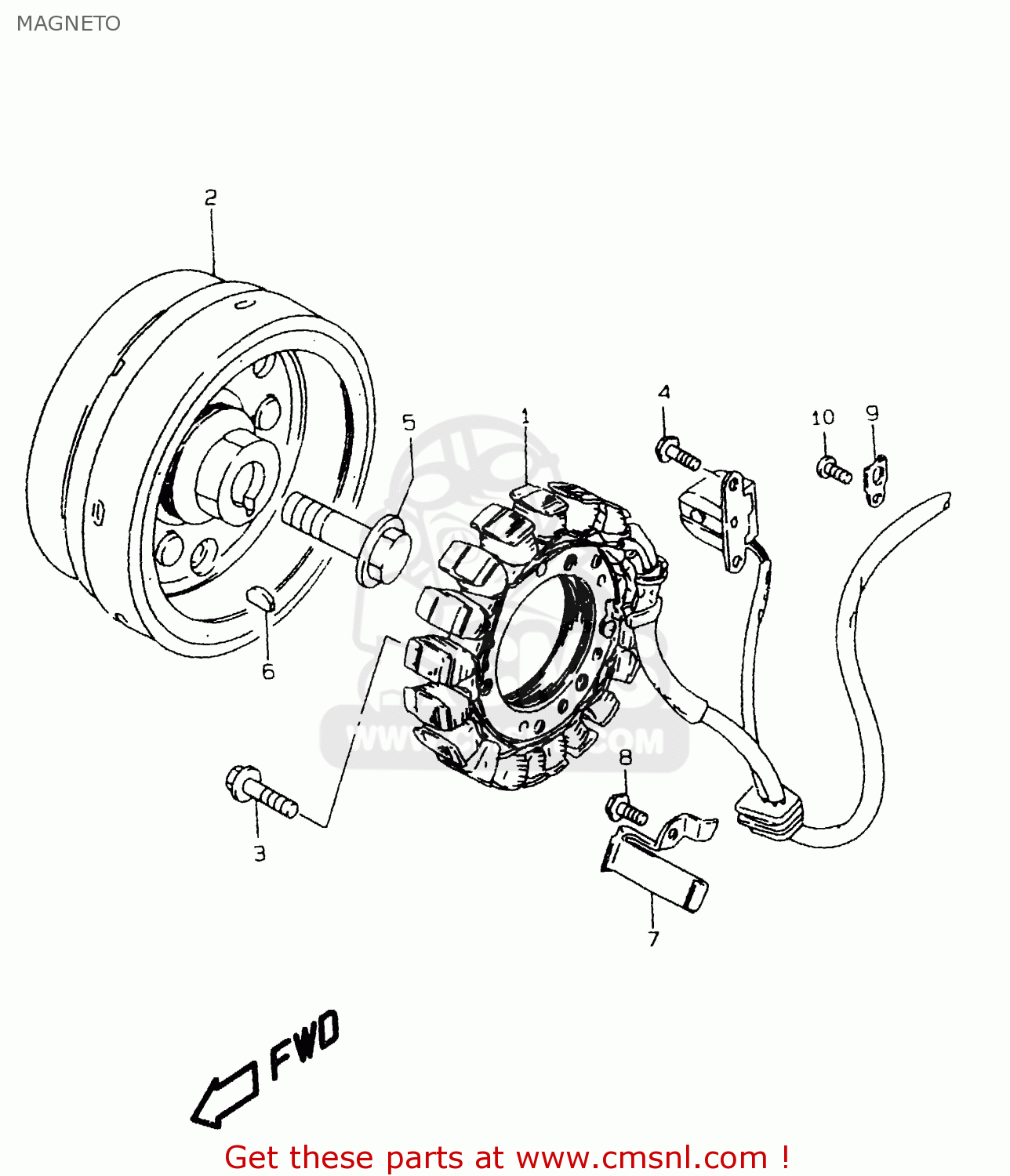

Magneto diagram LS650P 2000 (Y) (E01)
MAGNETO LS650P 2000 (Y) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3210124B01
ref: 1
<-32101-24B00
STATOR ASSEMBLY
€ 603.00
2
3210224B10
ref: 2
ROTOR ASSY
€ 463.00
3
0154706253
ref: 3
SCREW
€ 2.50
4
0154705103
ref: 4
BOLT
€ 2.50
5
0910314001
ref: 5
BOLT(14X43)
€ 7.00
6
0942005007
ref: 6
KEY
€ 3.00
7
3237124B00
ref: 7
CLAMP,MAGNETO LEAD WIRE NO.1
€ 3.00
8
0154705103
ref: 8
BOLT
€ 2.50
9
3149745000
ref: 9
CLAMP,GENERATOR LEAD WIRE
€ 1.50
10
0211205103
ref: 10
SCREW
€ 2.00
