STAND - REAR BRAKE
LS650P 2000 (Y) (E01)

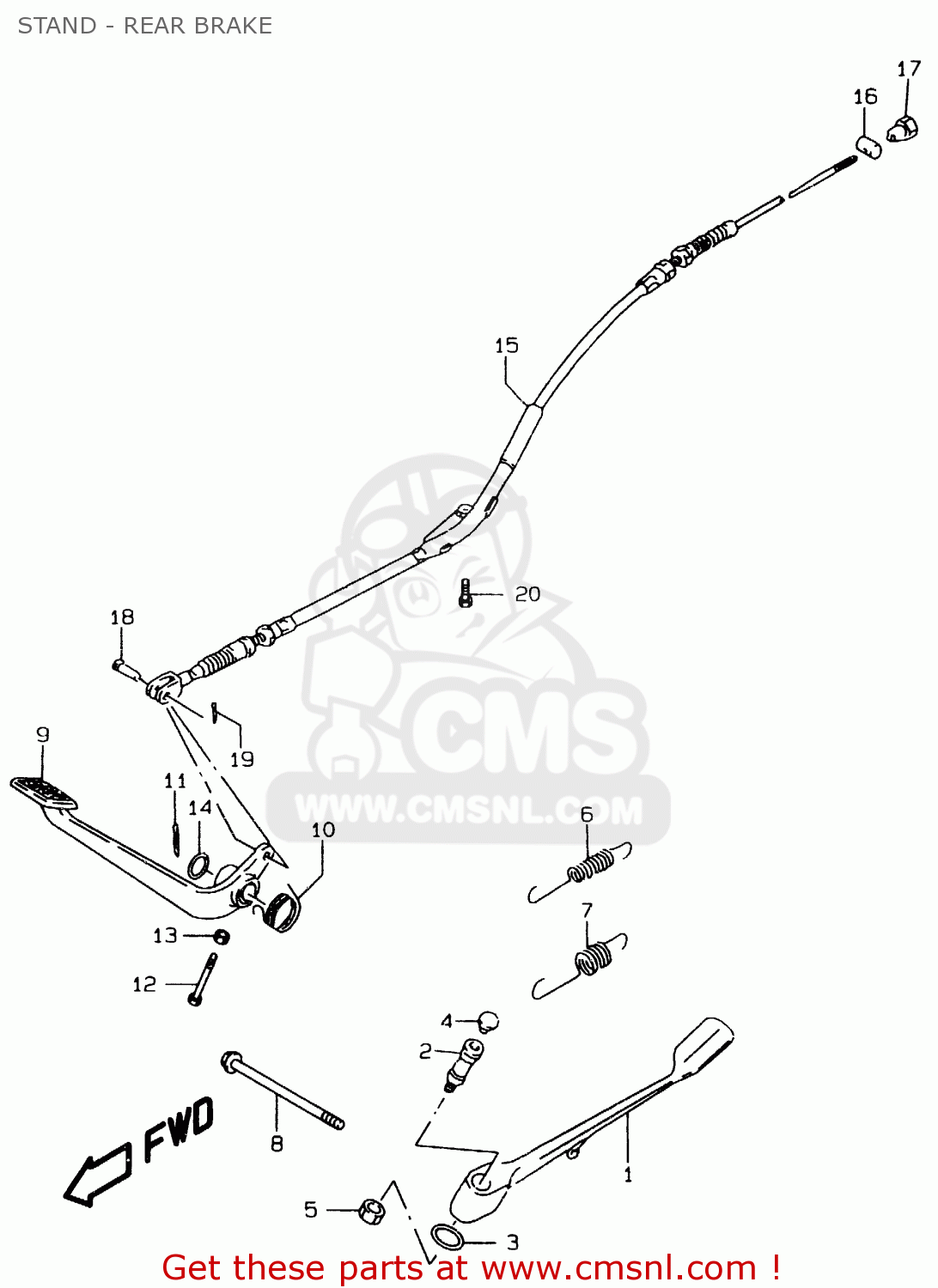

Stand - rear brake diagram LS650P 2000 (Y) (E01)
STAND - REAR BRAKE LS650P 2000 (Y) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4231024B00
ref: 1
MODEL T
STAND,PROP
€ 92.00
1
4231024B01
ref: 1
MODEL V/W/X
STAND,PROP
€ 92.00
2
4234138B01
ref: 2
BOLT,PROP STAND
€ 9.00
3
0822115245
ref: 3
MODEL T/V
THRUST WASHER
€ 2.50
3
0918115158
ref: 3
MODEL W/X
SHIM(15X24X0.5)
€ 2.50
4
4357524B00
ref: 4
CAP,PROP STAND BOLT
€ 7.00
5
0914010044
ref: 5
NUT
€ 2.50
6
0944315034
ref: 6
SPRING
€ 18.50
7
0944318020
ref: 7
SPRING
€ 18.00
8
0910310087
ref: 8
BOLT(10X105)
€ 6.50
9
4311024B10
ref: 9
PEDAL,BRAKE
€ 58.50
10
0944832017
ref: 10
SPRING
€ 23.00
11
0411130308
ref: 11
COTTER PIN
€ 1.50
12
0910006150
ref: 12
BOLT(6X31)
€ 1.50
13
0831000063
ref: 13
NUT 6MM
€ 2.00
14
0916016028
ref: 14
MODEL T/V
WASHER (16.2X22X1)
€ 2.00
14
0916016043
ref: 14
MODEL W/X
WASHER(16.5X22X1)
€ 2.00
15
5851024B10
ref: 15
CABLE,RR BRAKE
€ 73.00
16
0920913018
ref: 16
PIN(13X18)
€ 3.50
17
0915006009
ref: 17
MODEL T
NUT (6MM)
€ 3.50
17
0915006014
ref: 17
MODEL V/W/X
NUT
€ 3.50
18
0920005001
ref: 18
PIN(L:17.5)
€ 1.50
19
0411120158
ref: 19
PIN
€ 1.50
20
0157006163
ref: 20
BOLT
€ 2.50
