STARTING MOTOR (SEE NOTE)
LS650P 2000 (Y) (E01)

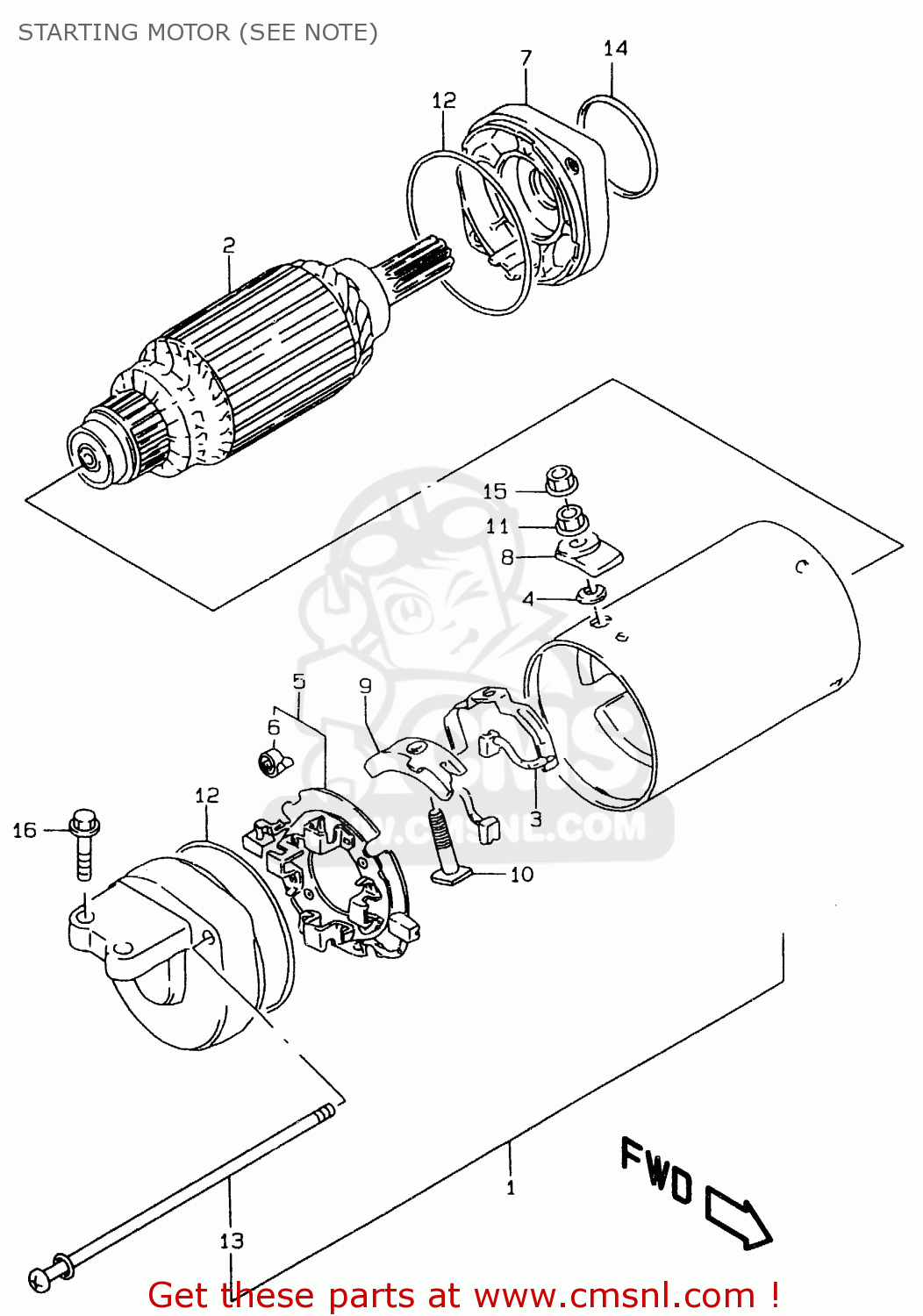

Starting motor (see note) diagram LS650P 2000 (Y) (E01)
STARTING MOTOR (SEE NOTE) LS650P 2000 (Y) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3110024B11H17
ref: 1
MOTOR ASSY ,STARTING
€ 620.00
2
3131024B01H17
ref: 2
ARMATURE
€ 173.00
3
3113148B00
ref: 3
TERMINAL SET,BRUSH
€ 35.00
4
3114348B00
ref: 4
GASKET (NAS)
€ 6.50
5
3113248B00
ref: 5
HOLDER SET,BRUSH(-)
€ 51.00
6
3113565010
ref: 6
SPRING
€ 3.00
7
3115044B00
ref: 7
BRACKET SET
€ 98.50
8
3117248B10
ref: 8
BUSHING
€ 3.00
9
3117248B20
ref: 9
BUSHING
€ 8.50
10
3113048B00
ref: 10
BOLT
€ 4.50
11
3114548B00
ref: 11
NUT
€ 1.50
12
3126444110
ref: 12
O RING
€ 8.00
13
3128124B10
ref: 13
BOLT
€ 5.00
14
0928035005A
ref: 14
<-31156-24B00
O-RING (D:2.1 ID:34.7)
€ 9.50
15
0836135068
ref: 15
NUT
€ 2.00
16
0154706207
ref: 16
BOLT
€ 2.50
